1. FREEDOM Air Wired Cable Types
FREEDOM Air's wired cable types are as follows.
| Photo | Name | Description |
PSM & Table Holder |
The PSM uses the USB Type-C cable, USB Type-B cable, and the power cable to transmit signals and provide power between the FREEDOM Air and the PC. Can also be used as a table holder. |
|
Power Adapter |
The power adapter supplies power to the ‘FREEDOM Air’ via the PSM (Rating: 100-240 V~, 50/60 Hz, 1.0-0.6 A) |
|
|
Type-C Communication Cable (1.8m) * USB 3.1 Connection |
The USB cable delivers signals from the PC to the PSM and then to the FREEDOM Air, and also transfers signals generated by the FREEDOM Air back to the PC through the PSM. |
|
|
A to B Communication Cable (1m) * USB 3.1 Connection |
The USB cable delivers signals from the PC to the PSM and then to the FREEDOM Air, and also transfers signals generated by the FREEDOM Air back to the PC through the PSM. |
2. FREEDOM Air Installation

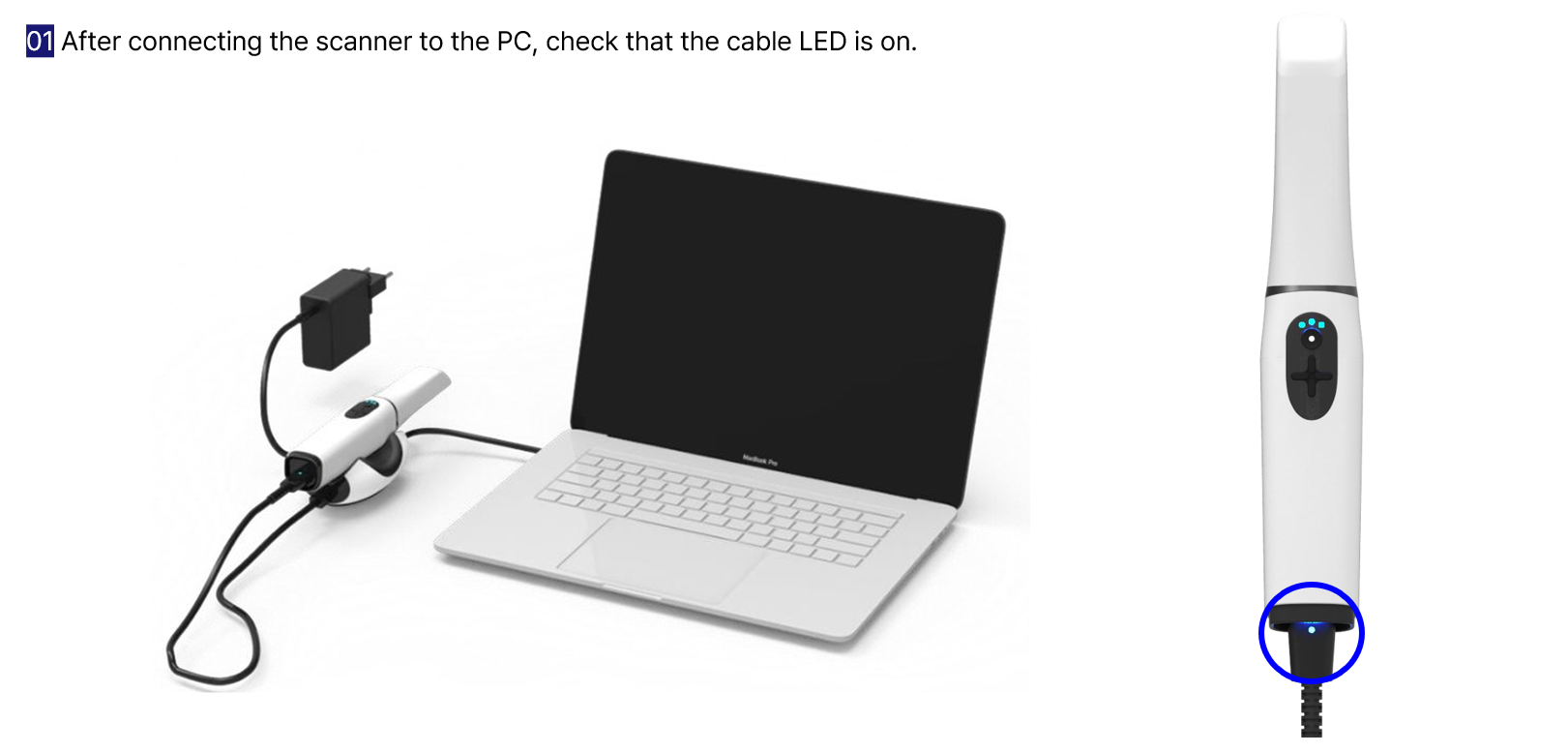

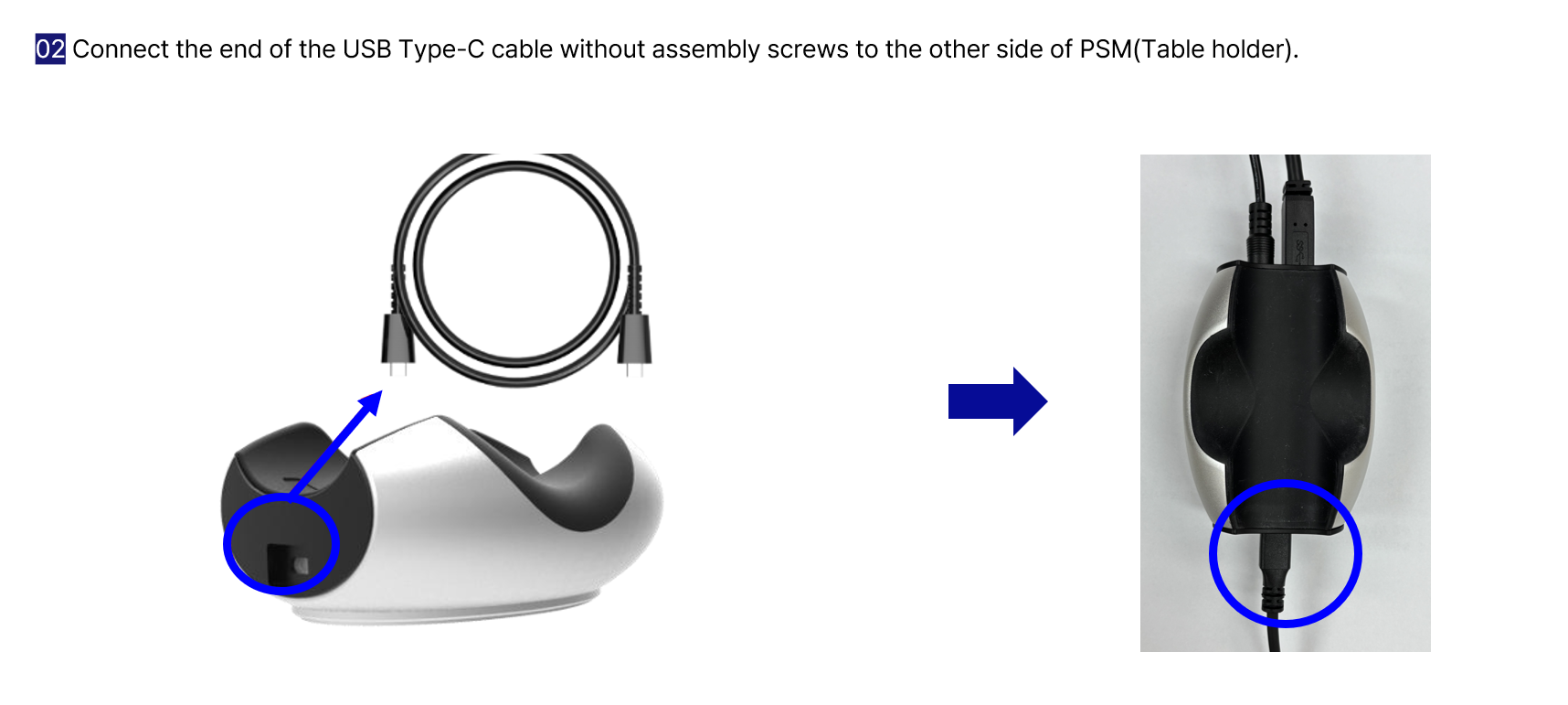

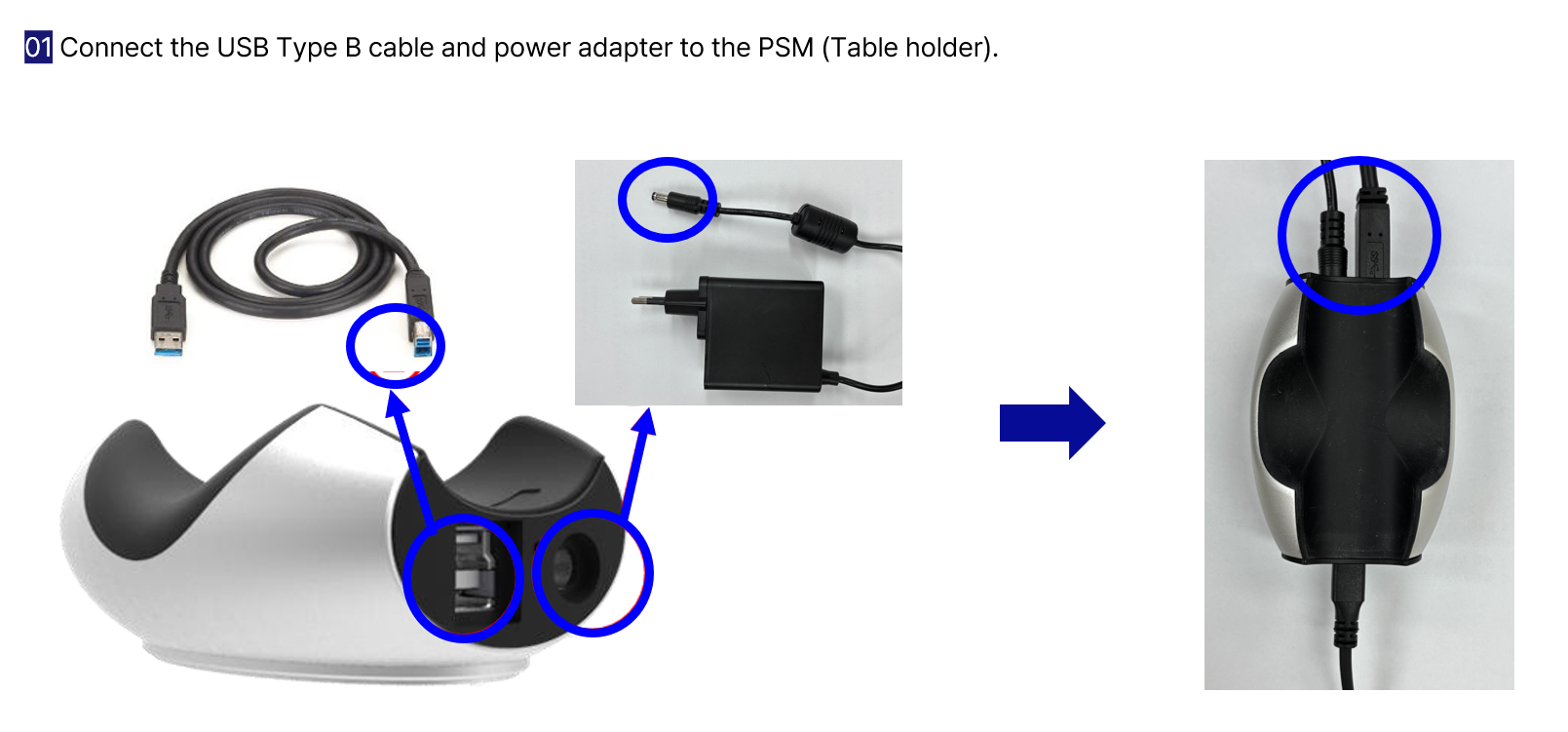

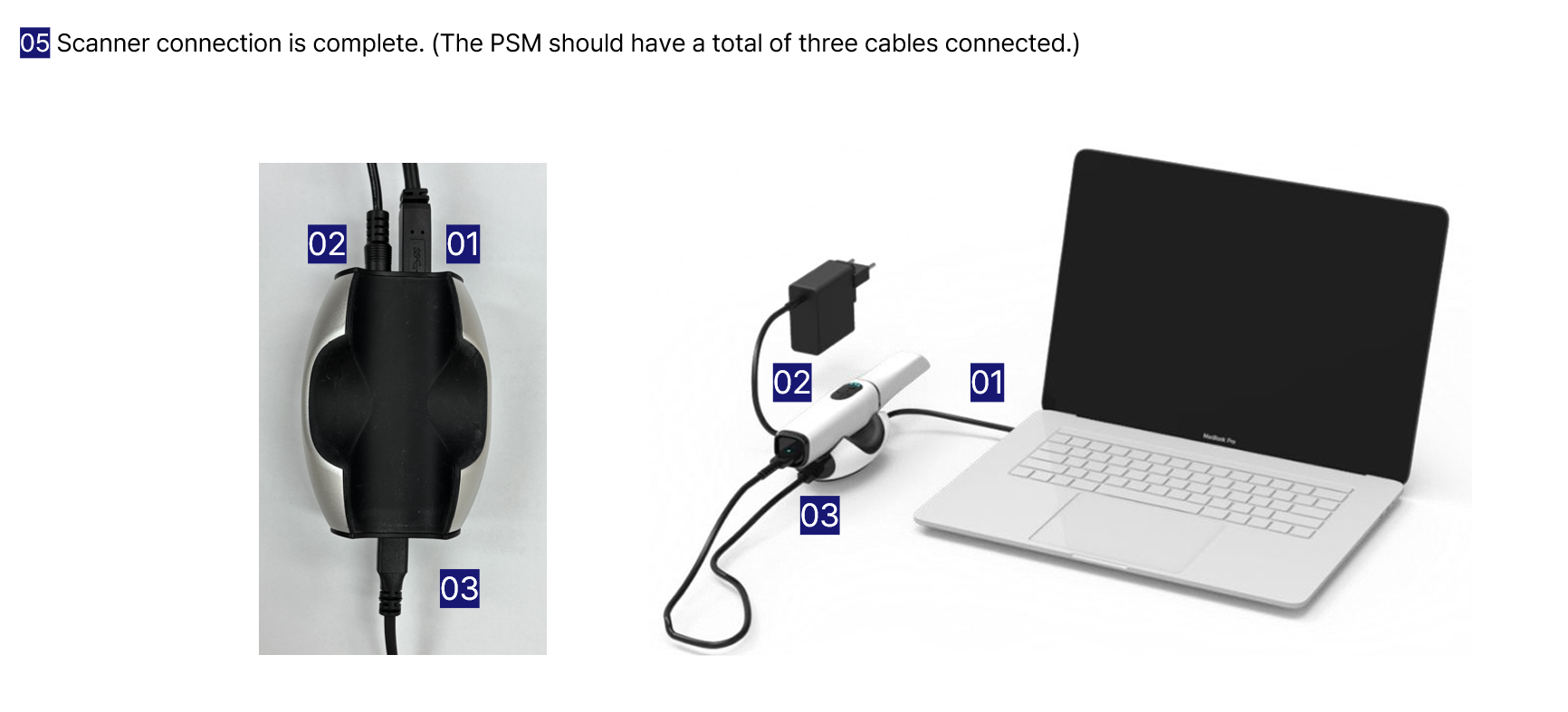

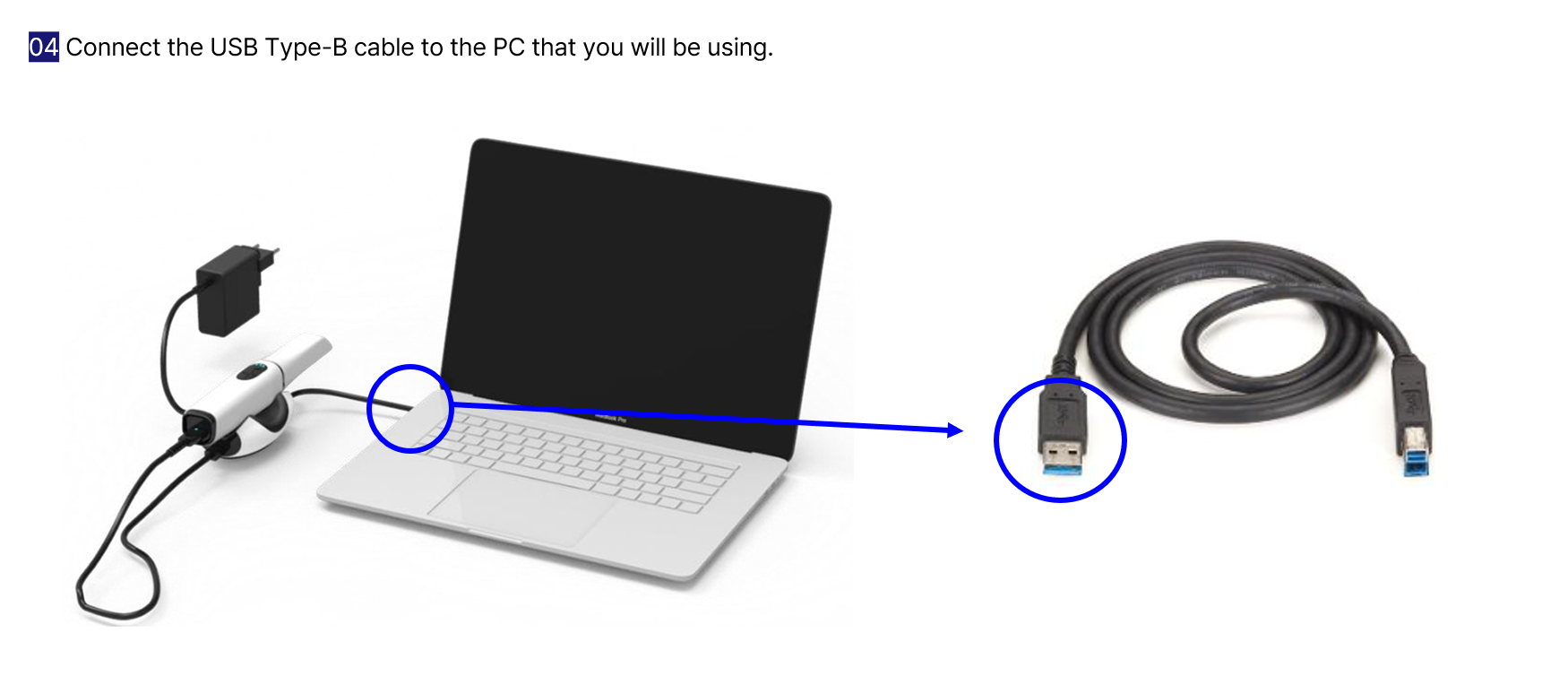

You can connect the FREEDOM Air device to your PC using a wired cable as described below.

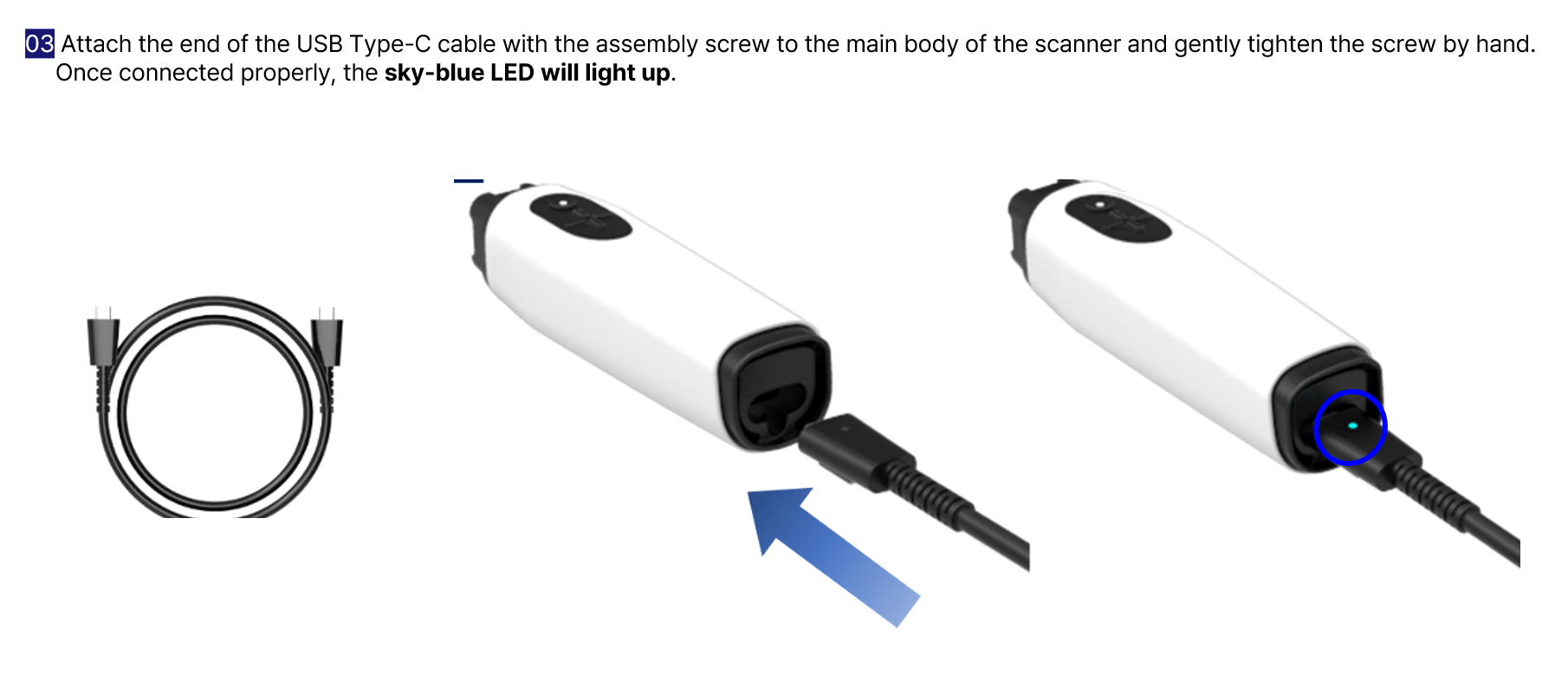

️⚠️Before Scanning, make sure to tighten the fixing screw that secures the scanner & Type-C Communication Cable⚠️ | |

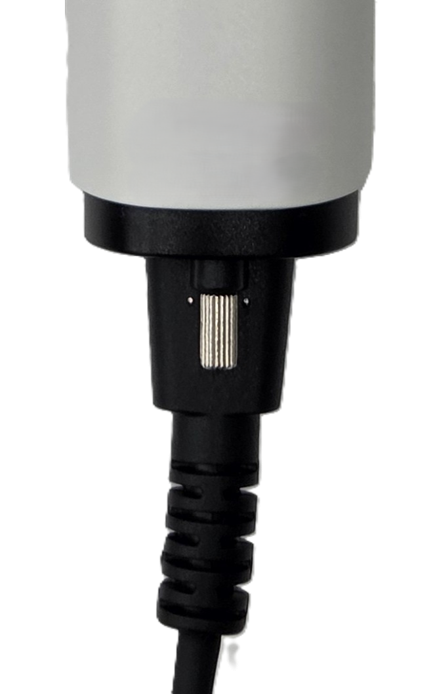

Fixing screw loosened |

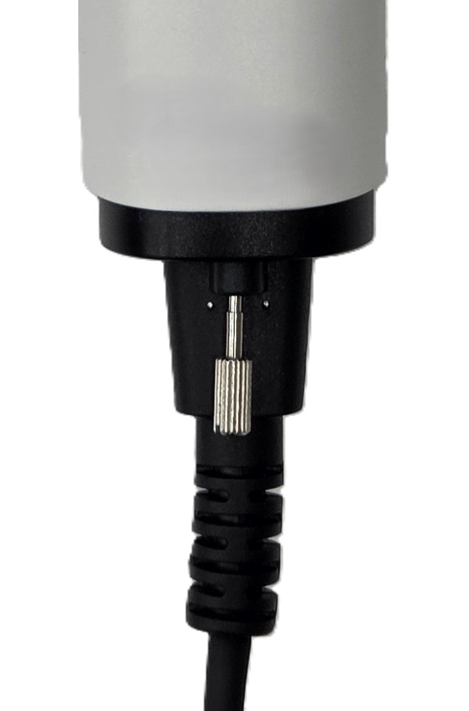

Fixing screw tightened |
3. Turning On The FREEDOM Air

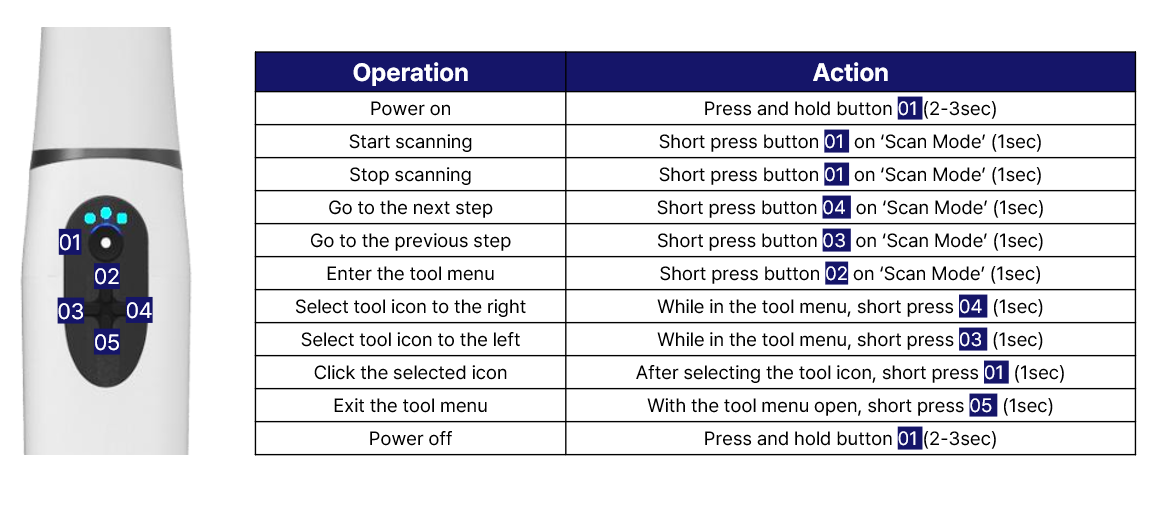

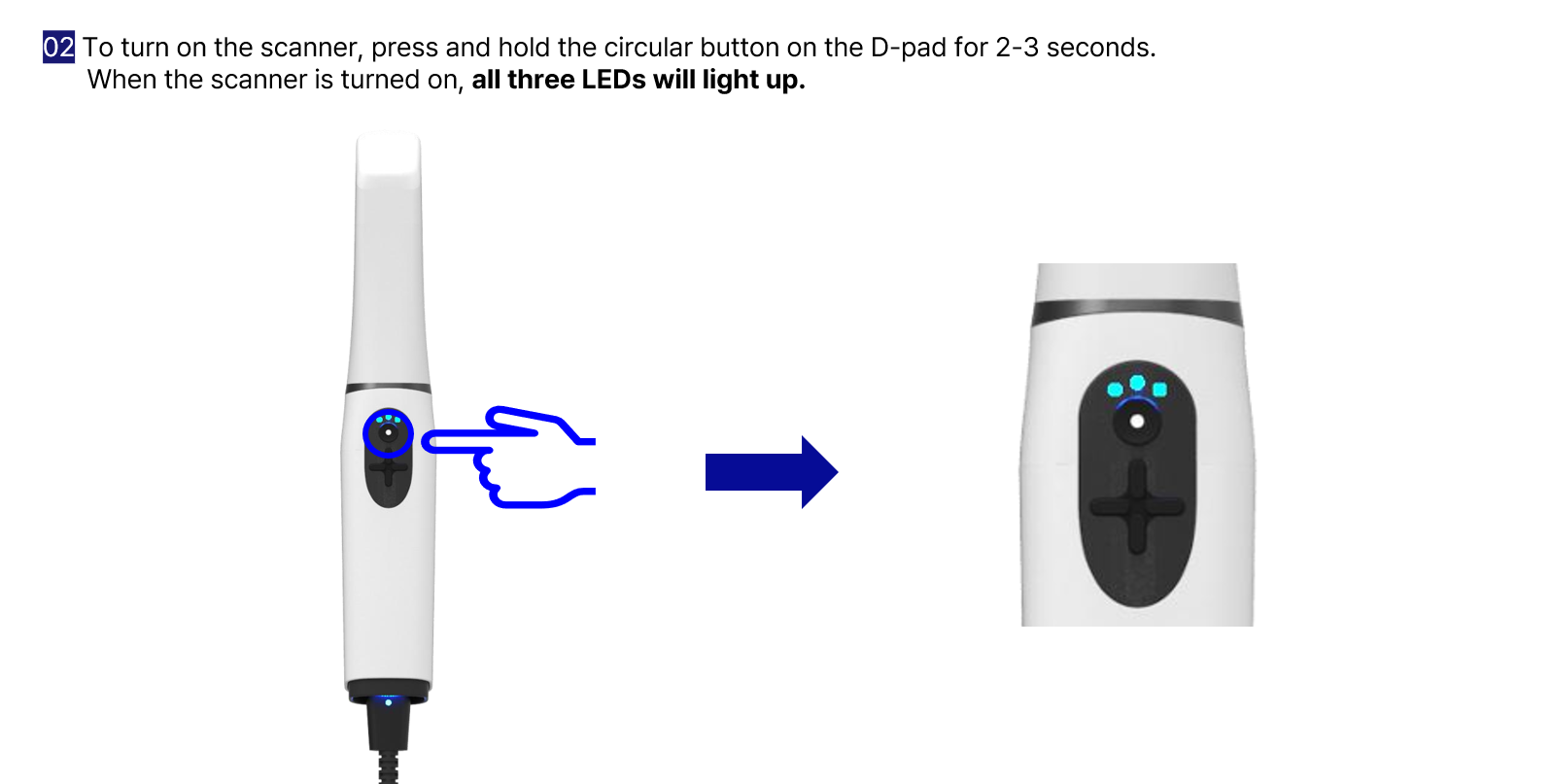

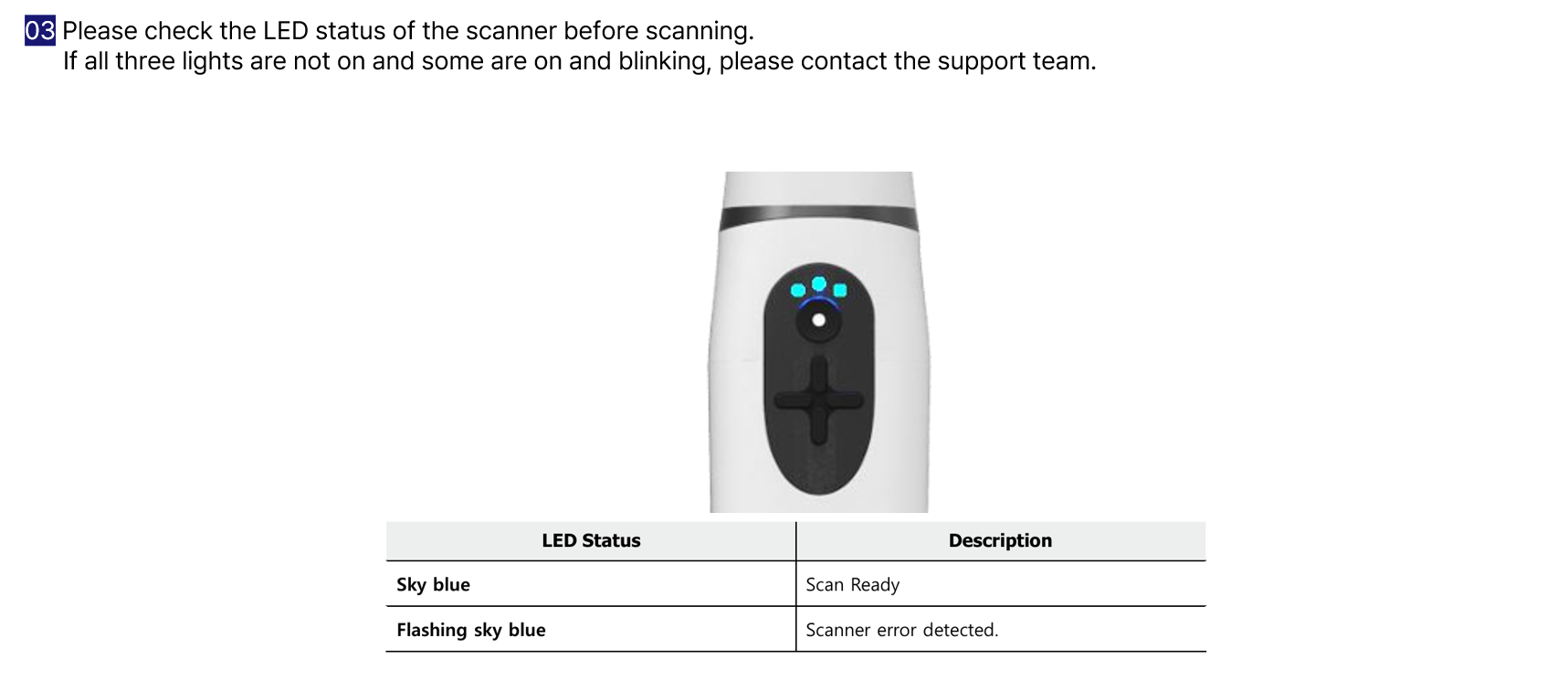

After installing the scanner properly, press and hold the circular button on the D-PAD for 2–3 seconds to turn on the scanner.
📘 Related Articles
📌FREEDOM Air Using The D-Pad
Using the FREEDOM Air's D-Pad during scanning allows for more convenient and hygienic scanning.
1. D-Pad Configuration

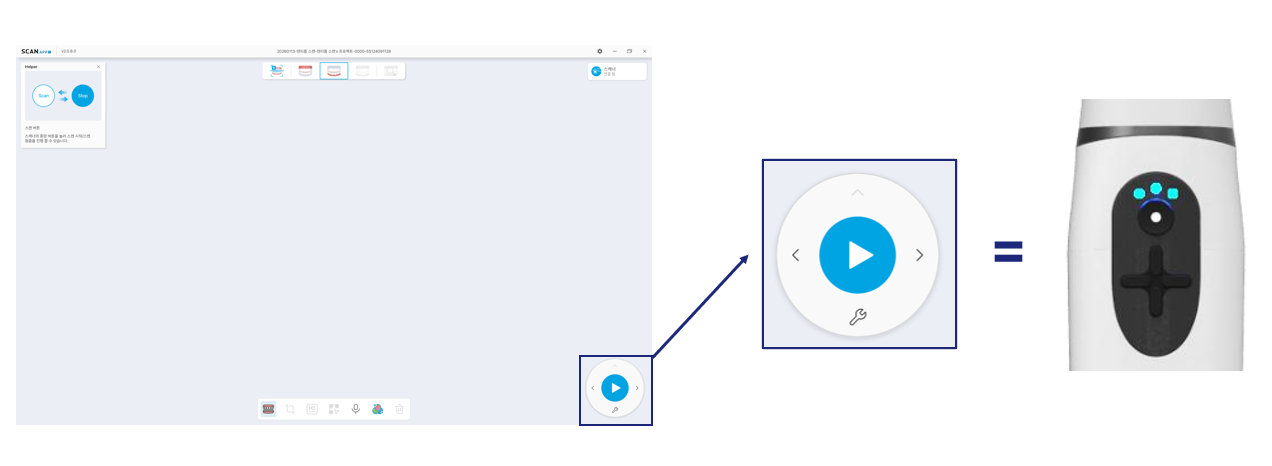

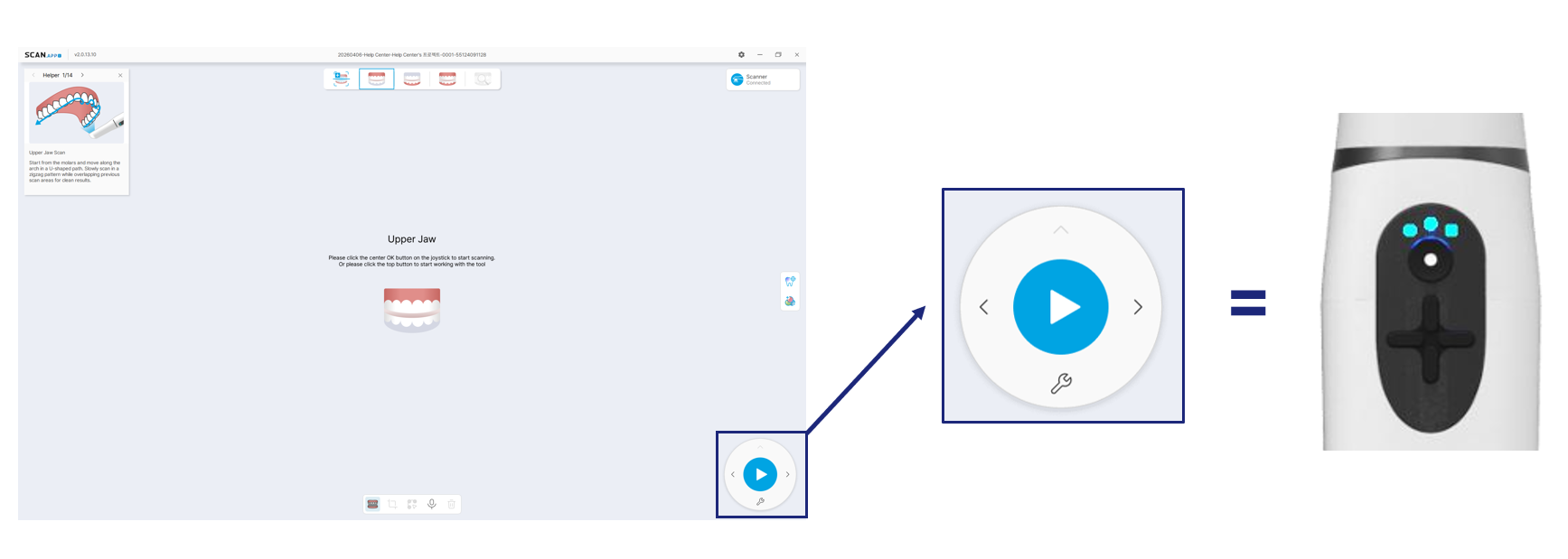

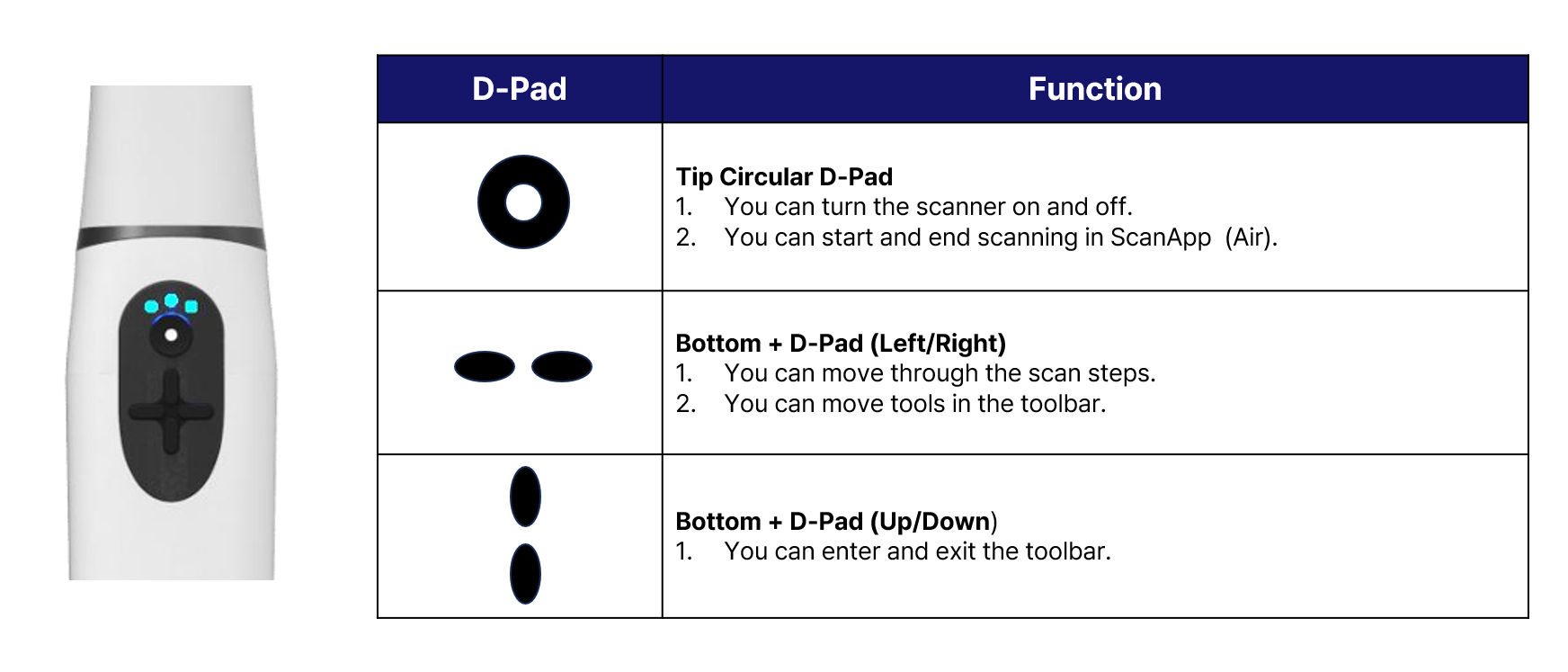

The scanner's D-Pad operation is reproduced in real time on the monitor display.
2. How To Use The D-Pad
