📌 Quick Start Menu Guide
PIM project must first be created in DOFSync before scanning with the FREEDOM Air PIM solution.
Use the 'Quick Start' menu in DOFSync to quickly create a PIM project and begin scanning.
📘 Related Video
Follow the steps below to create a PIM project and add a CAP Scanbody.
1. Create Project from 'Quick Start'

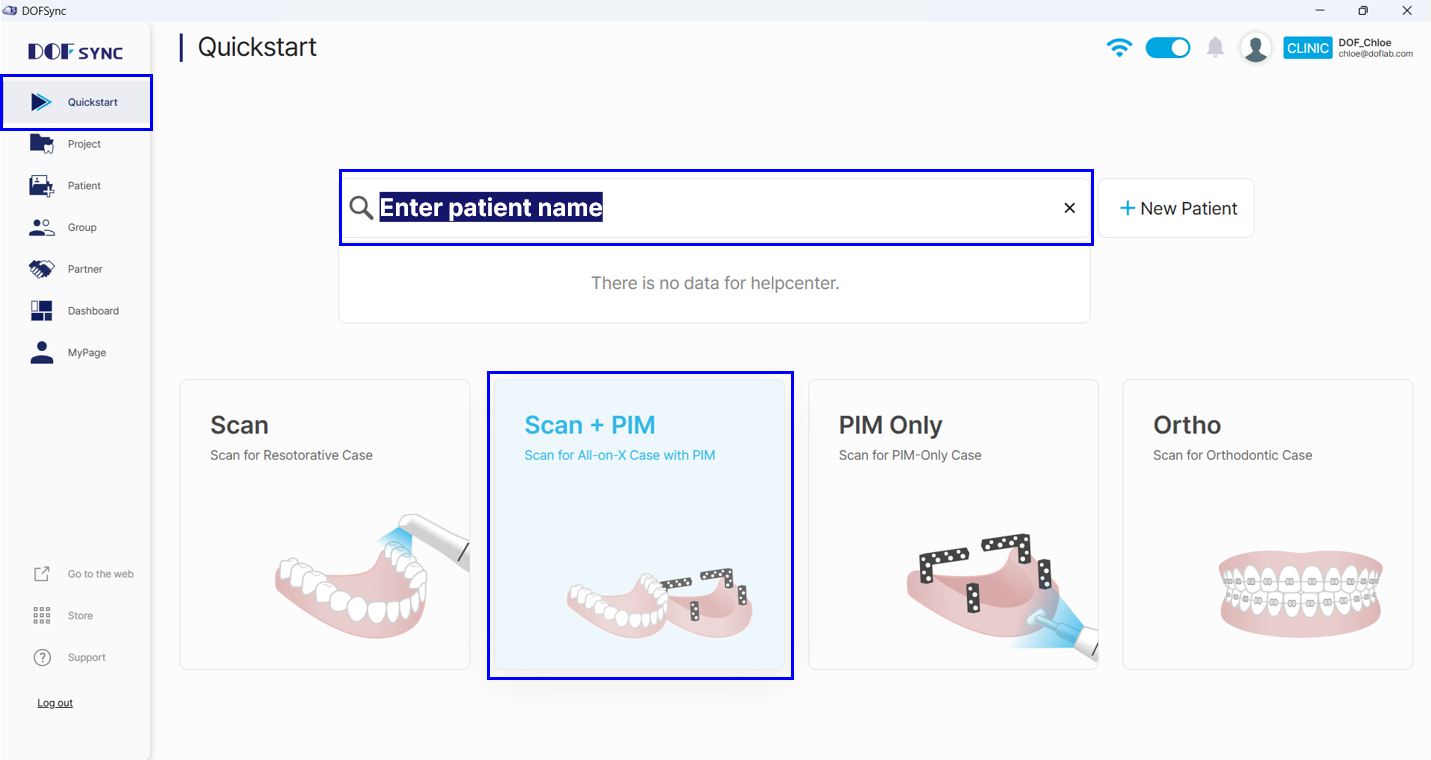

- Open the 'Quick Start' menu, enter the patient's name, and click the 'Scan+PIM' button.
- The PIM project is automatically created, and the Indication window appears.
2. Apply PIM Teeth And MUA Library

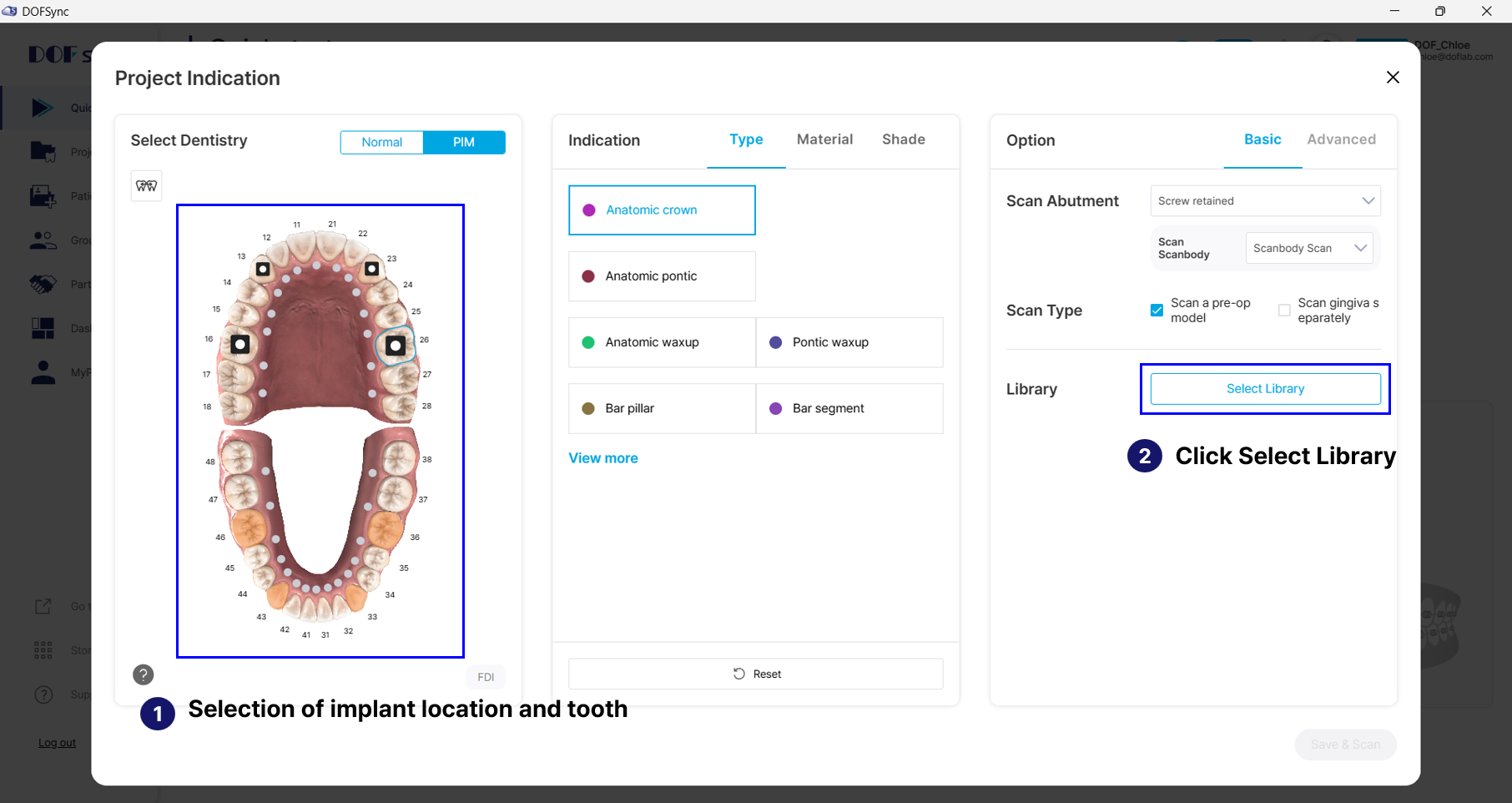

- Select the implant placement positions and tooth numbers in the Indication window.

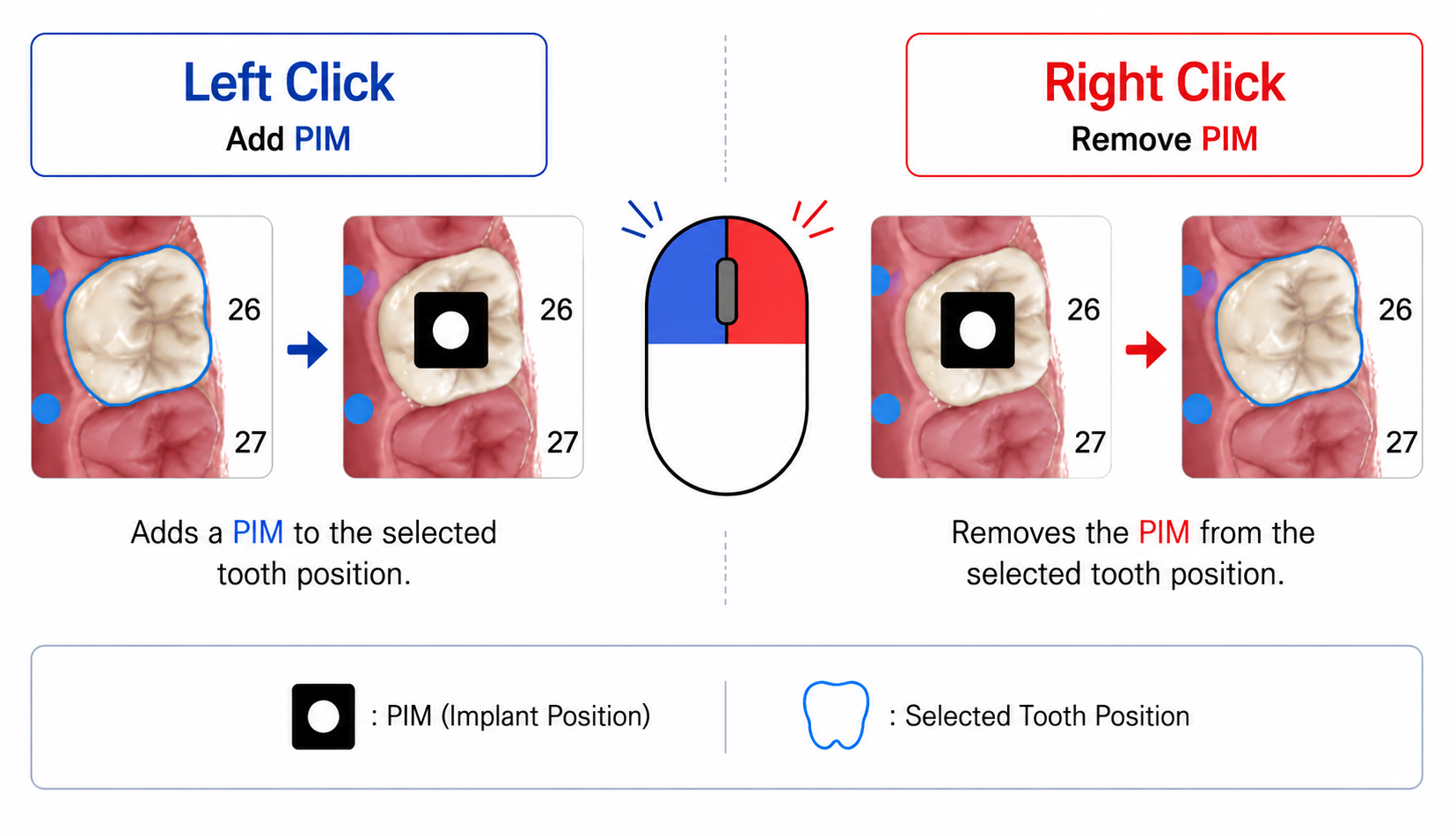

It is recommended to select the exact number of implants for the patient. - In the Indication window, use the mouse to remove or add tooth positions to change the number of PIMs and the tooth positions.
- After selecting all tooth numbers, click the 'Select Library' button to open the 'Select Library' window.
- In Select Library, choose All > Scanbody Type > MUA Library.
After selecting the MUA library, click Apply to All or Save to apply the MUA library to the PIM tooth numbers.
* Reflect All: Applies the same library to the MUA of all selected PIM tooth numbers.
* Save: Applies the library only to the MUA of the selected PIM tooth number.
3. Apply CAP Scanbody Library

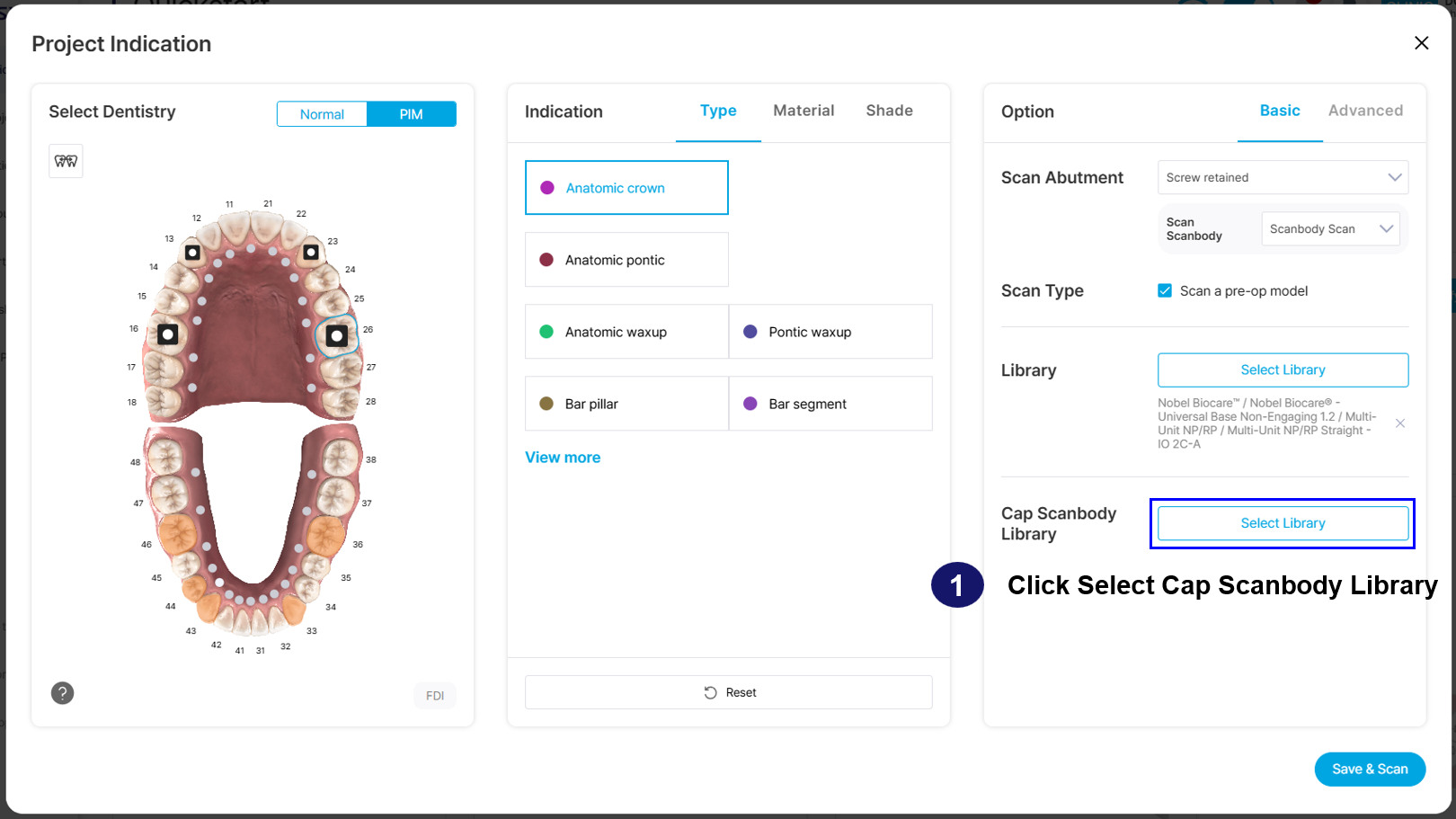

- After applying the MUA library to all PIM teeth, click 'Select Library' in the CAP Scanbody Library section.
- Select the CAP Scanbody library to use, then click 'Apply All' or 'Save'.
(For DOF CAP Scanbody: PIM Type > DOF > DOF Cap Scanbody)
4. Save And Scan

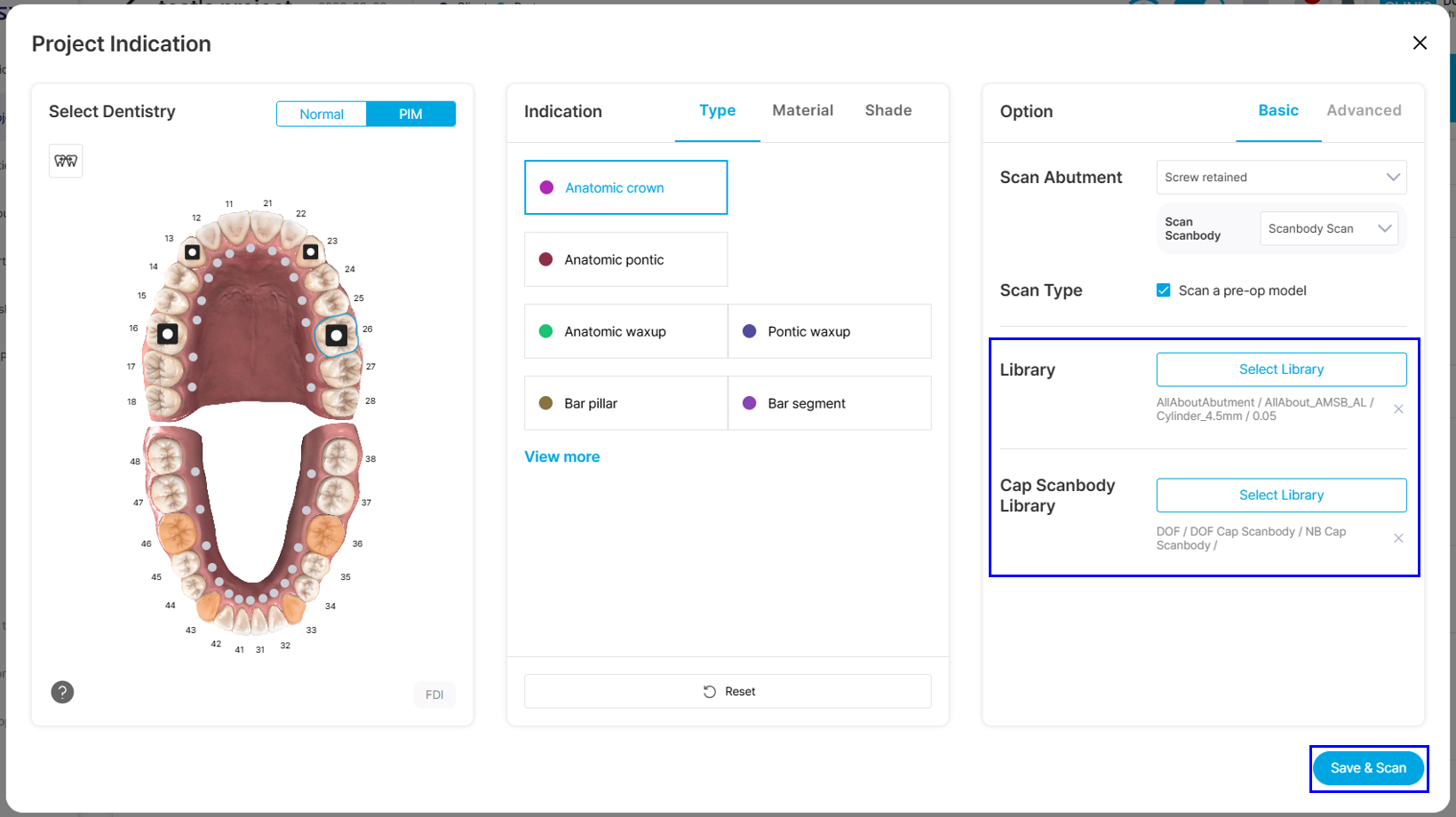

- Check the applied MUA and CAP Scanbody libraries, then click 'Save & Scan' to start scanning.
- Launch ScanApp i (Air), then follow the recommended workflow to complete each scan step.
Once scanning is finished, proceed to the 'Confirm' step to generate the data.
📌 Project Menu Guide
PIM project must first be created in DOFSync before scanning with the FREEDOM Air PIM solution.
Use the 'Projects' menu in DOFSync to create a PIM project and begin scanning.
📘 Related Video
Follow the steps below to create a PIM project and add a CAP Scanbody.
1. Create Project from 'Project'

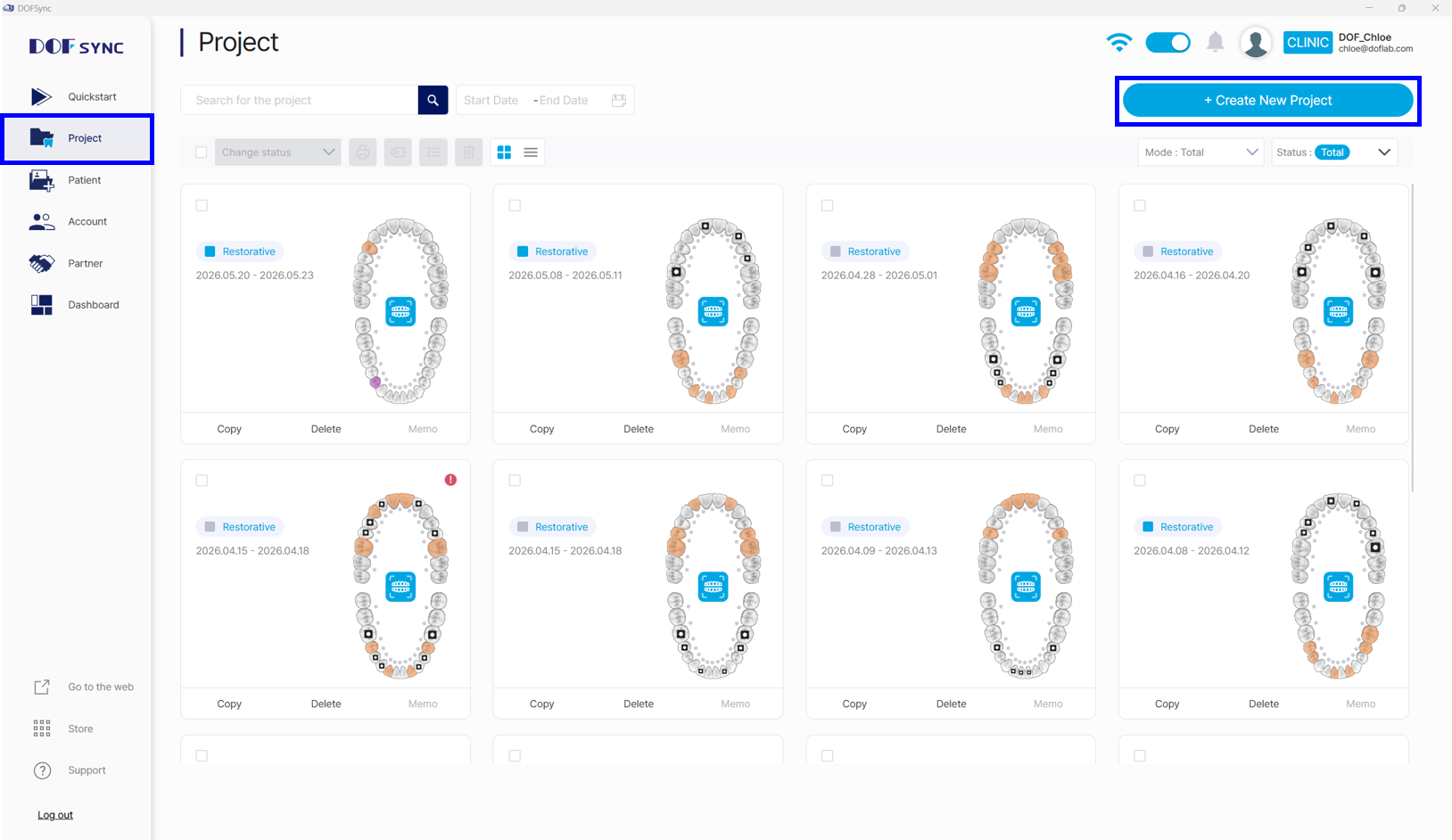

- Open the 'Projects' menu and click '+ Create Project' to create a new project.
- Open the project, then select any tooth to open the Indication window.
2. Apply PIM Teeth And MUA Library

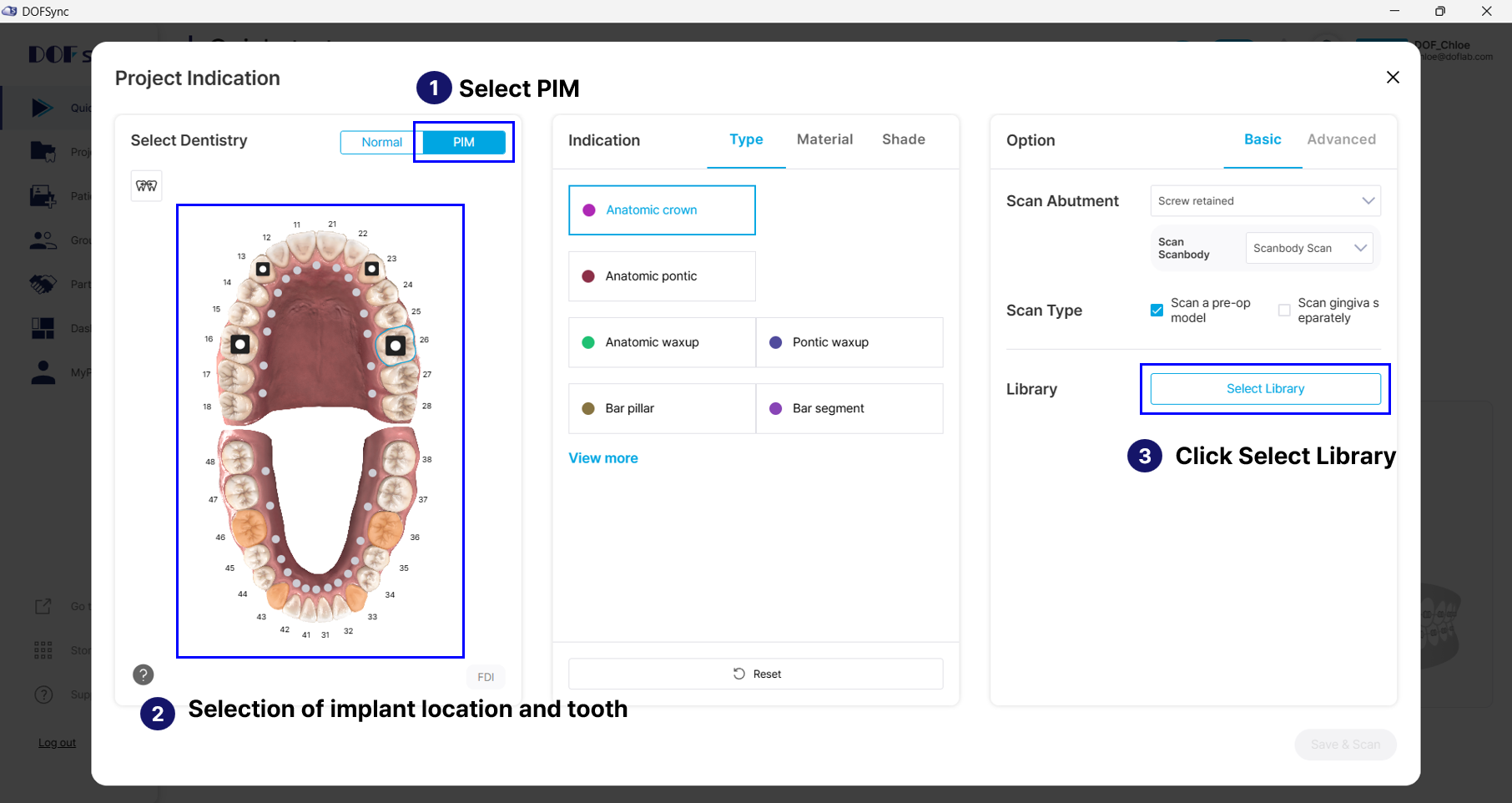

- Select the implant placement positions and tooth numbers in the Indication window.
It is recommended to select the exact number of implants for the patient. - In the Indication window, use the mouse to remove or add tooth positions to change the number of PIMs and the tooth positions.
- After selecting all tooth numbers, click the 'Select Library' button to open the 'Select Library' window.

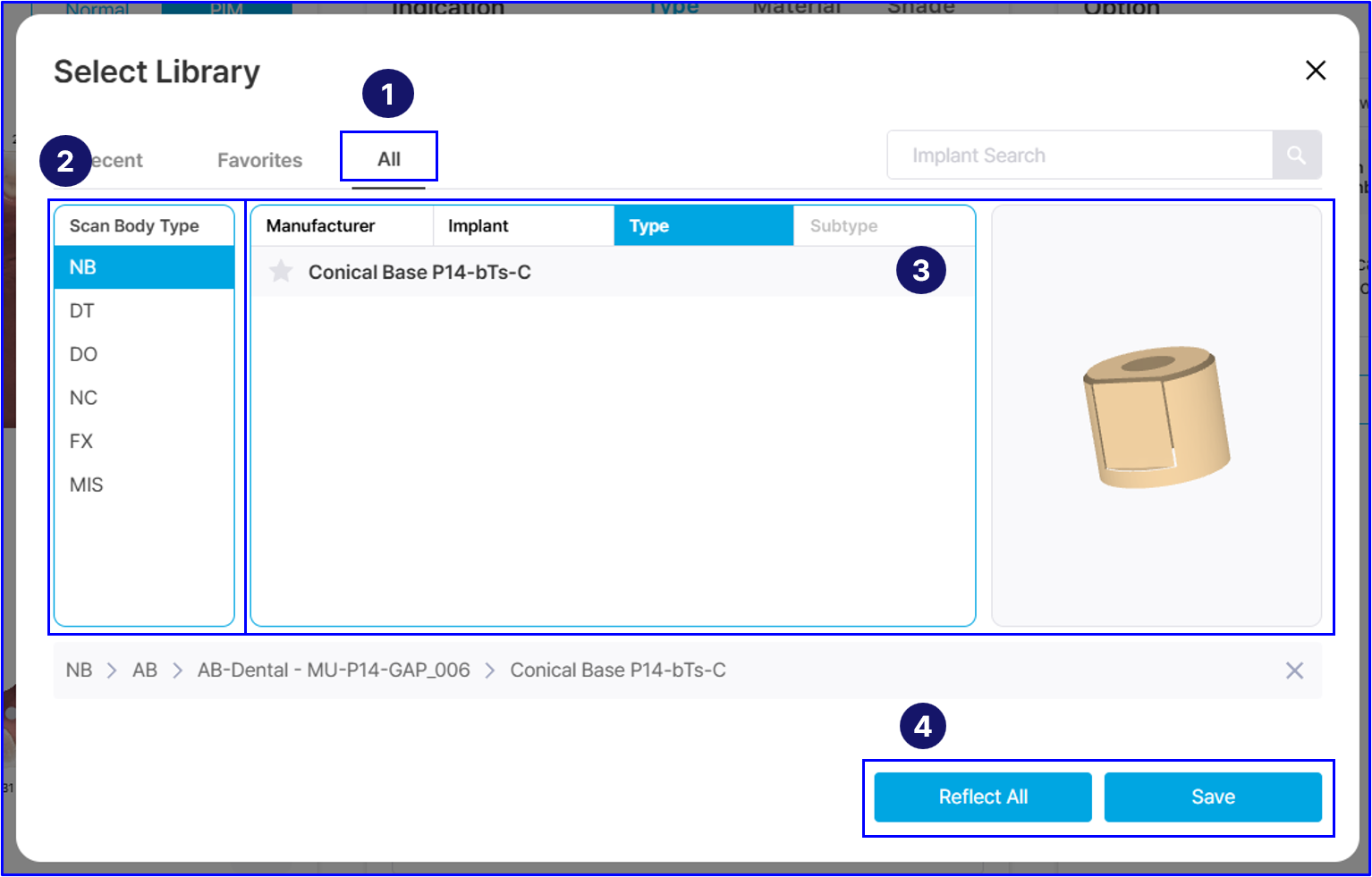

- In Select Library, choose All > Scanbody Type > MUA Library.
-
After selecting the MUA library, click Apply to All or Save to apply the MUA library to the PIM tooth numbers.
* Reflect All: Applies the same library to the MUA of all selected PIM tooth numbers.
* Save: Applies the library only to the MUA of the selected PIM tooth number.
3. Apply CAP Scanbody Library

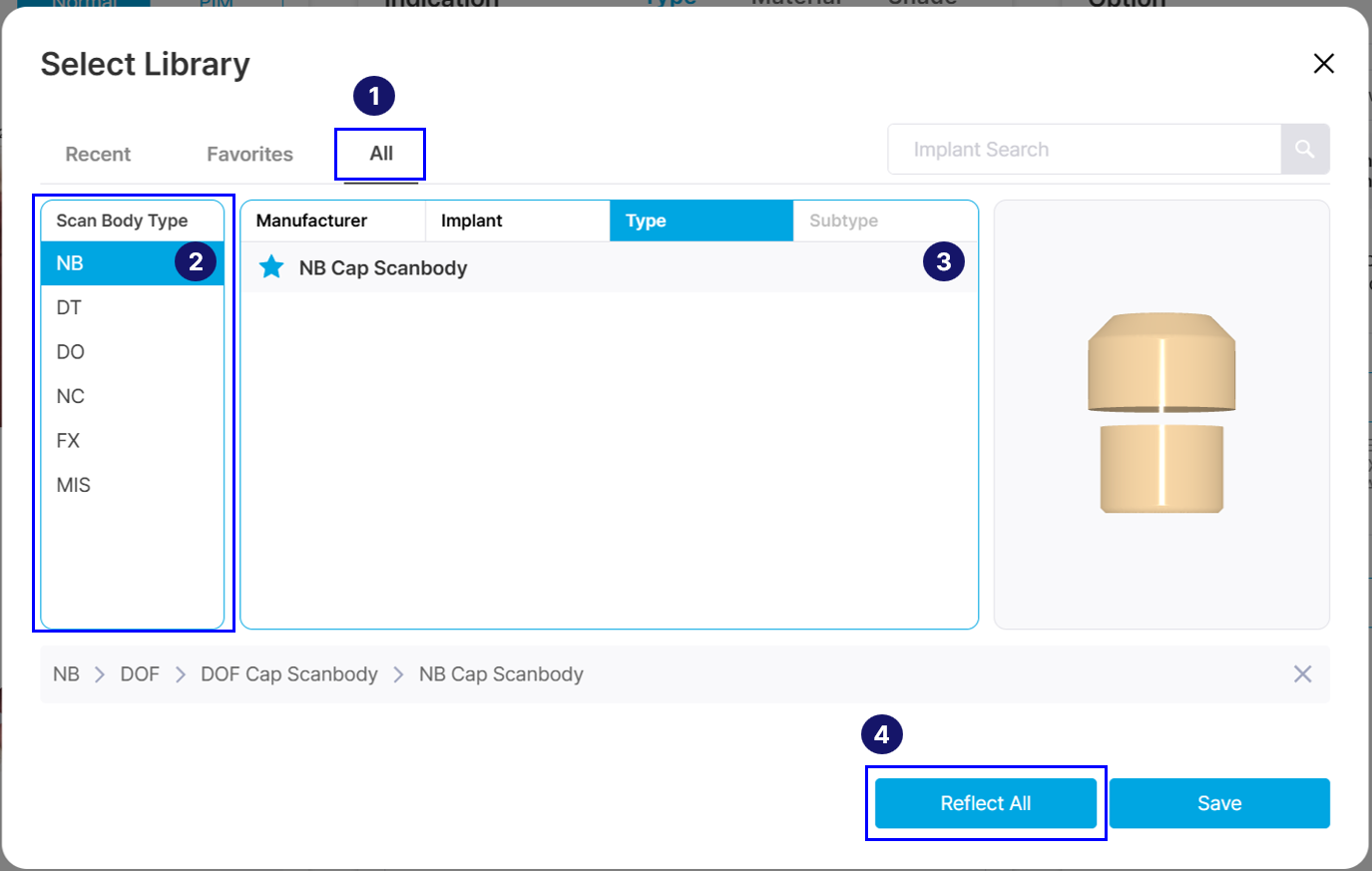

- After applying the MUA library to all PIM teeth, click 'Select Library' in the CAP Scanbody Library section.
- Select the CAP Scanbody library to use, then click 'Apply All' or 'Save'.
(For DOF CAP Scanbody: PIM Type > DOF > DOF Cap Scanbody)
4. Save And Scan

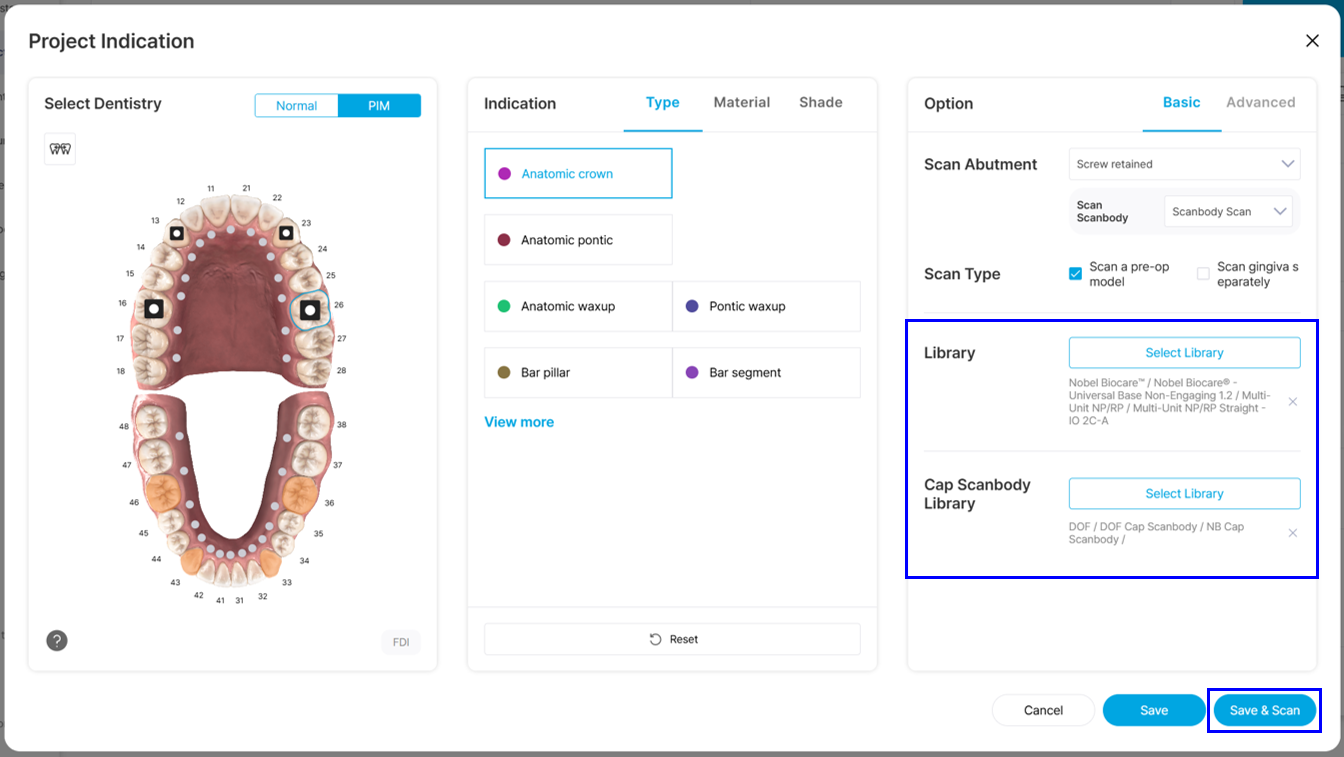

- Check the applied MUA and CAP Scanbody library, then click 'Save & Scan' to start scanning.

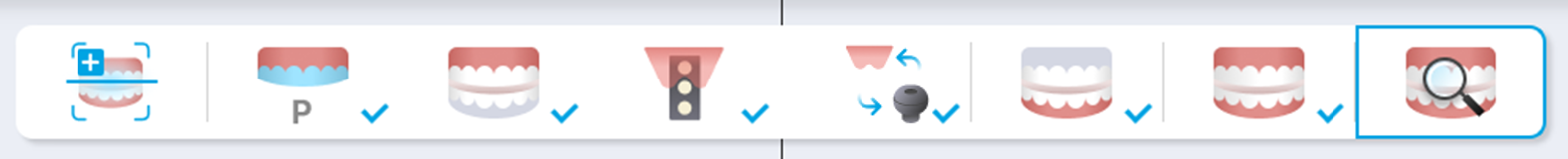

- Launch ScanApp i (Air), then follow the recommended workflow to complete each scan step.
Once scanning is finished, proceed to the 'Confirm' step to generate the data.
For more details on the CAP Scanbody scanning strategy for PIM Solution, refer to the related articles below.
