- Scanning PIM Scan Bodies in Two Stages When MUAs Are Closely Spaced

DOF IOS Support
Updated

📌What Is Two-Stage PIM Scanning?

Divide the scanning area into sections based on where adjacent scan bodies interfere with each other.



📌When Is Two-Stage PIM Scanning Needed?

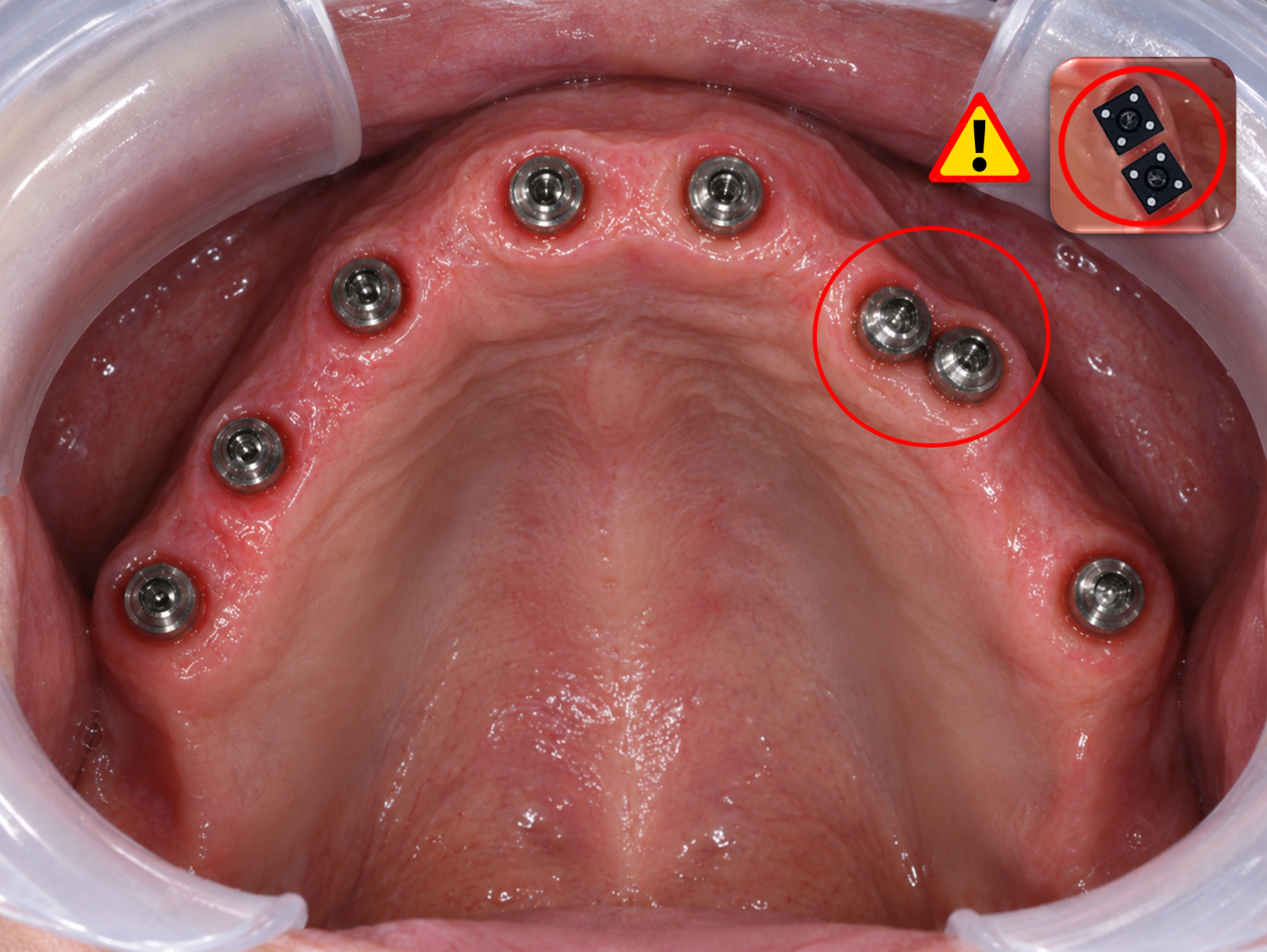

  • When closely spaced MUAs prevent the full shape of each attached scan body from being captured clearly
  • When interference between scan bodies makes proper seating or recognition difficult



📌 Two-Stage PIM Scanning Workflow

1. Attach and Scan the Initial PIM Scan Bodies

  • To ensure scan body recognition, attach at least three PIM scan bodies.

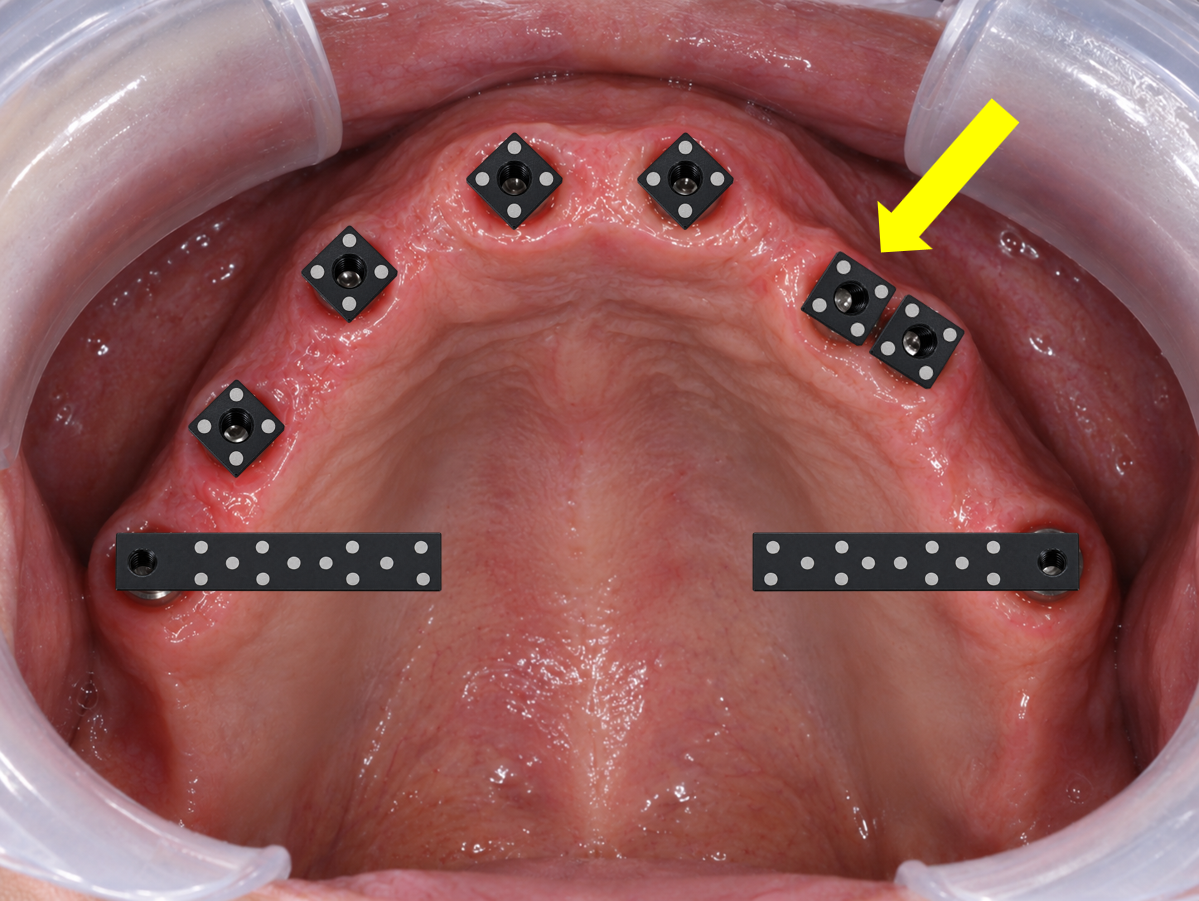

  • Attach LQ Type scan bodies to the most posterior positions on both sides, then perform the PIM scan.

⚠️Precautions When Attaching Scan Bodies for Two-Stage PIM Scanning⚠️

  • Begin scanning before attaching anterior scan bodies that could obstruct the view.
  • Always attach the posterior scan bodies first and scan them.
    - Attaching the anterior scan bodies first may make it difficult to attach and scan the posterior scan bodies.



Refer to the GIF below.

  • Mandibular AO6 case

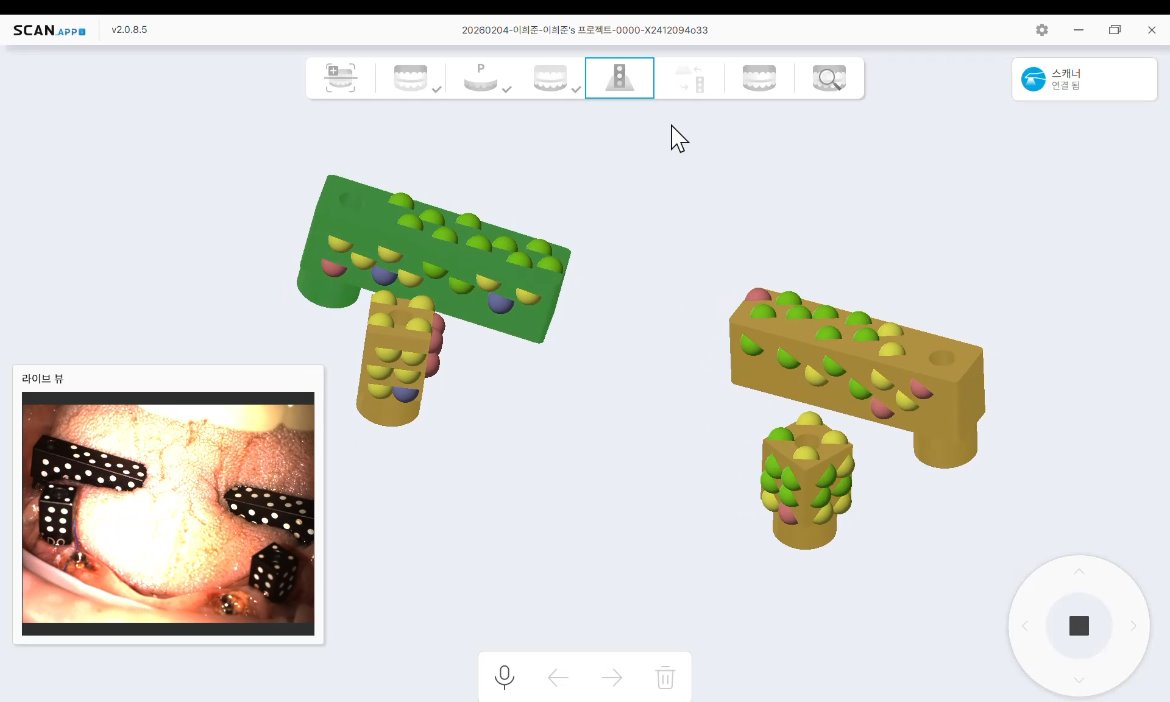

  • Leaving out the two anterior scan bodies, attach only four PIM scan bodies and perform the PIM scan

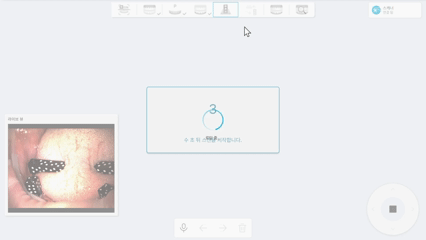

AO6/AO4 two-stage scanning GIF



2. Attach Additional PIM Scan Bodies

  • Keep the scan bodies attached during the initial scan in the same position and orientation.

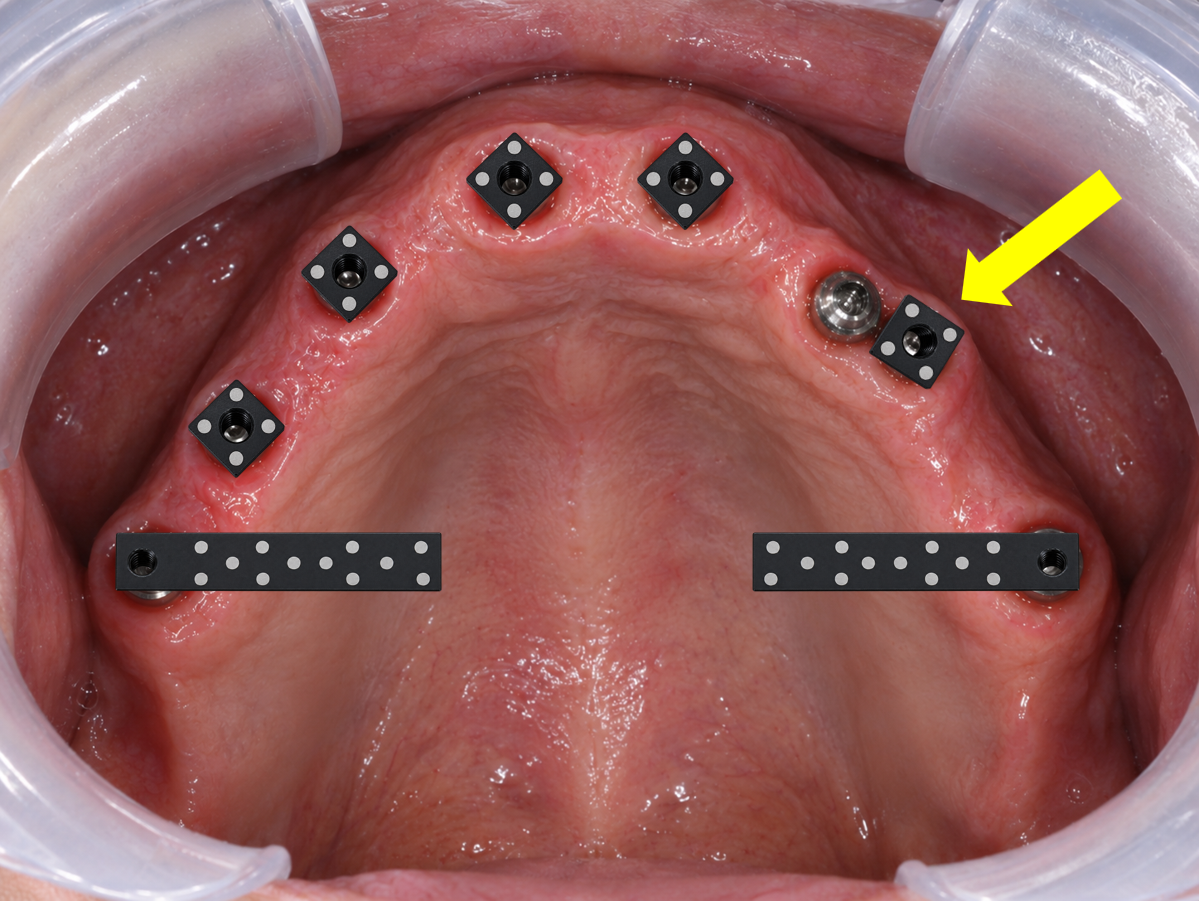

  • Attach the remaining scan bodies.





Refer to the GIF below.

  • Mandibular AO6 case

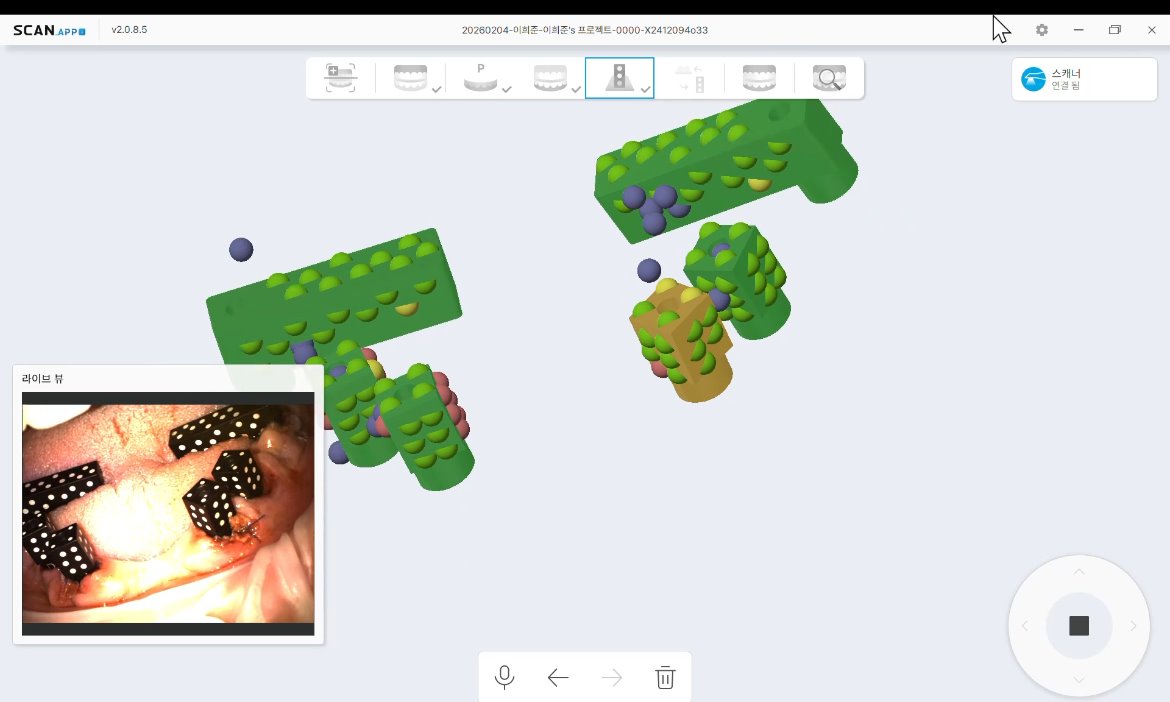

  • After the initial PIM scan, attach the anterior PIM scan bodies and perform the final PIM scan.

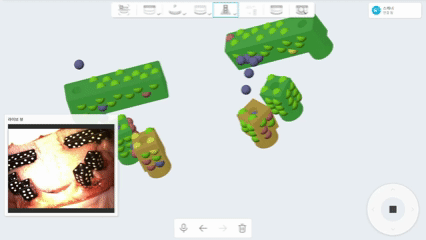

Final AO6 two-stage scanning GIF



3. Final PIM Scan

Capture sufficient scan data in each area, then scan the adjacent areas together to connect the data.



Watch the video below to review the complete workflow.

  • Maxillary AO8 case (The PIM scan begins at 1:27.)
  • After the initial PIM scan, attach the anterior PIM scan bodies and perform the final PIM scan.
