- Reviewing PIM Data And Using It In exocad

📌 Reviewing The Final Scan Data

📌 Using PIM Data In exocad

  L Adding The Implant Library In exocad

  L Exporting PIM Data To exocad From DOFSync

  L Importing PIM Data In exocad

📌 Reviewing The Final Scan Data

1. Final Scan Data

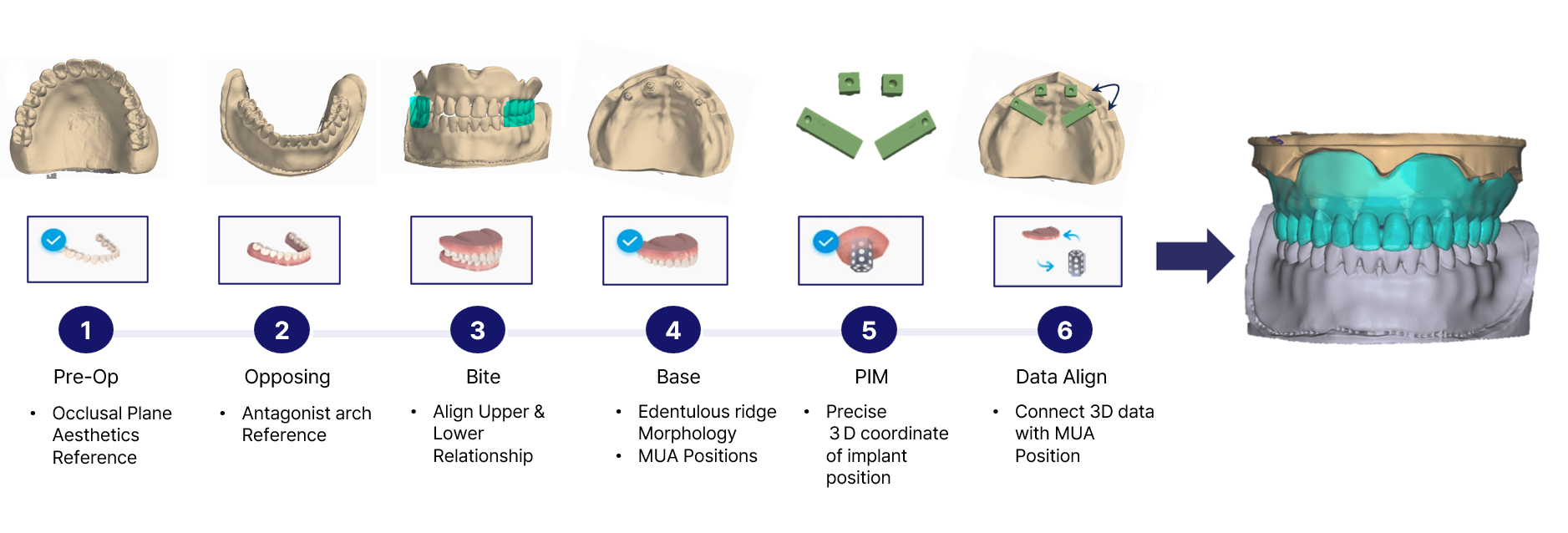

Upon completing the PIM solution scan according to the recommended workflow, the following data will be generated.
All data necessary for All-On-X prosthesis fabrication can be obtained.

2. Data File Names

The data is saved with the following file names. (e.g., upper PIM scan case)

File Name	Data Information

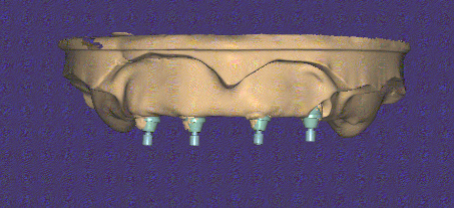

Upper-marker	Upper PIM scanbody data
UpperJaw-situ	Upper Pre-OP scan data
UpperJaw	Upper base scan data
Occlusion	Occlusion scan data
LowerJaw	Lower opposing arch scan data

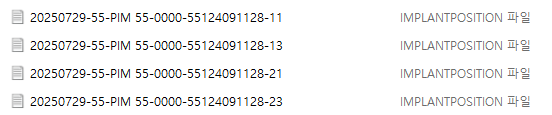

Date-Patient-Project-ID-Selected Tooth Number	Implant positioning file data The implant positioning file contains MUA library coordinates. When linked with exocad, it is automatically converted into the MUA library (see image for reference).

📌 Using PIM Data In exocad

1. Adding The Implatn Library In exocad

To use PIM data in exocad, the implant library selected during PIM project creation must be added in advance.

- How to check the PIM project library:

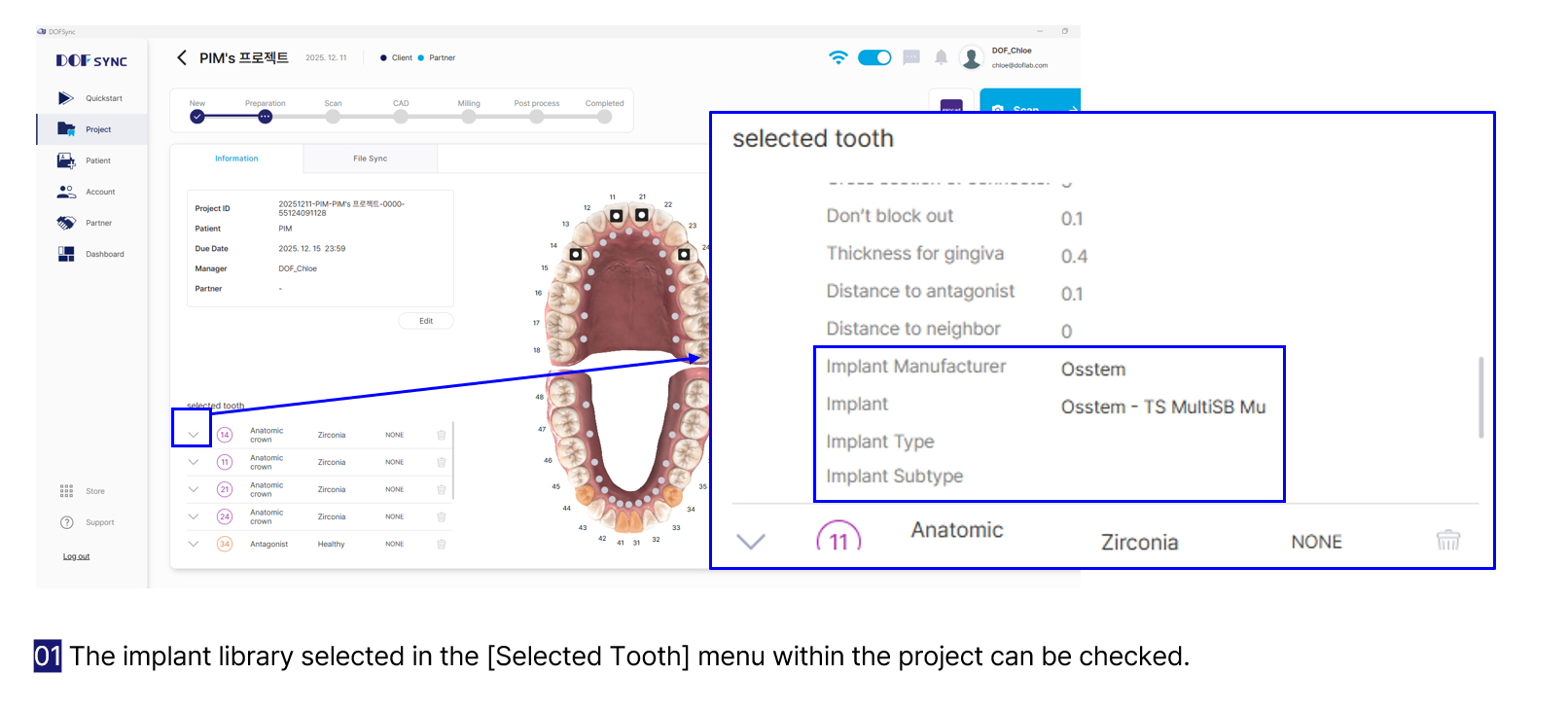

In DOFSync, check the name and details of the implant library that was set during the creation of the PIM project.

- How to add the implant library in exocad:

Add the implant library folder confirmed earlier to the implant library path in exocad.

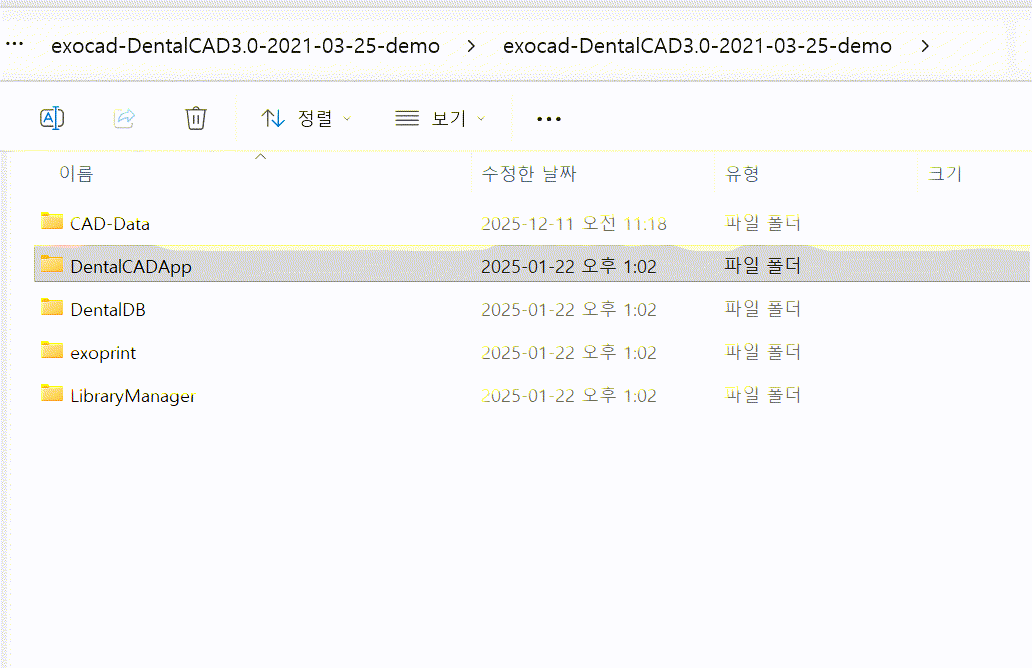

• exocad library path : exocad > DentalCADApp > library > implant

2.Exporting PIM Data To exocad From DOFSync

When DOFSync is linked with exocad, PIM data can be imported into exocad more easily and efficiently.

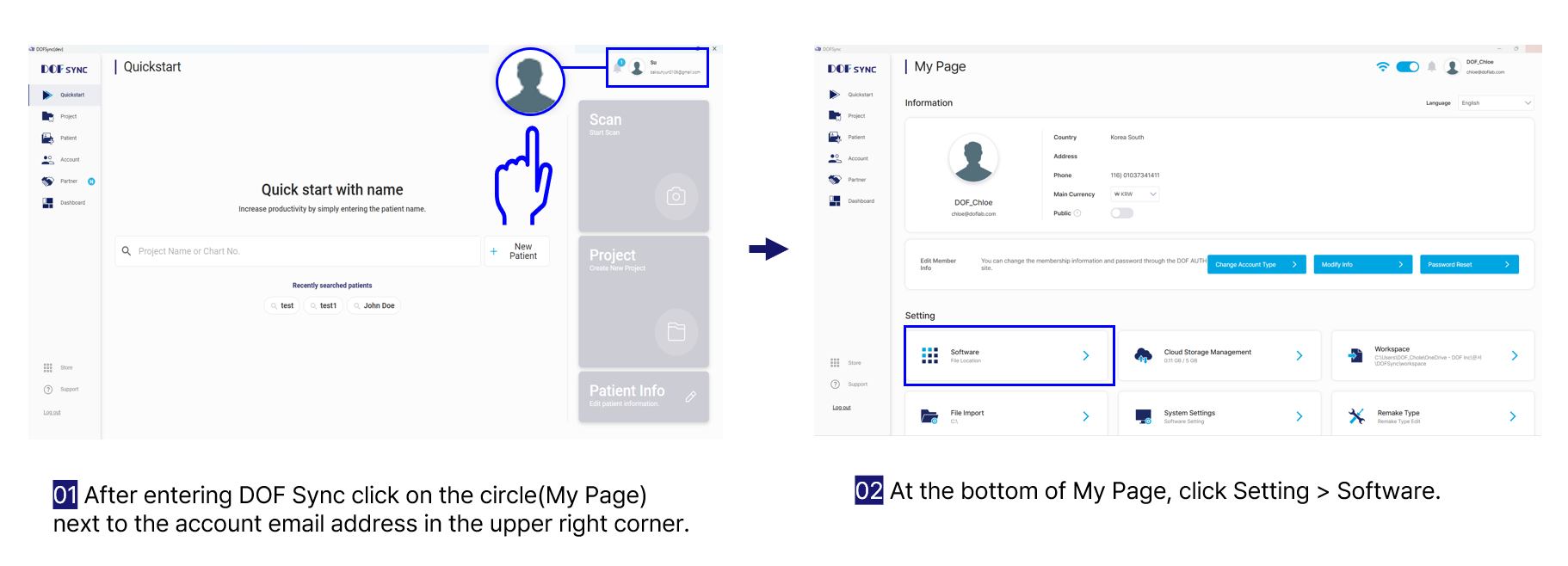

- Linking DOFSync with exocad:

Follow the steps below to set up the integration between DOFSync and exocad.

- Exporting PIM data from DOFSync to exocad:

After completing the integration settings, PIM scan data can be exported directly from DOFSync to exocad.

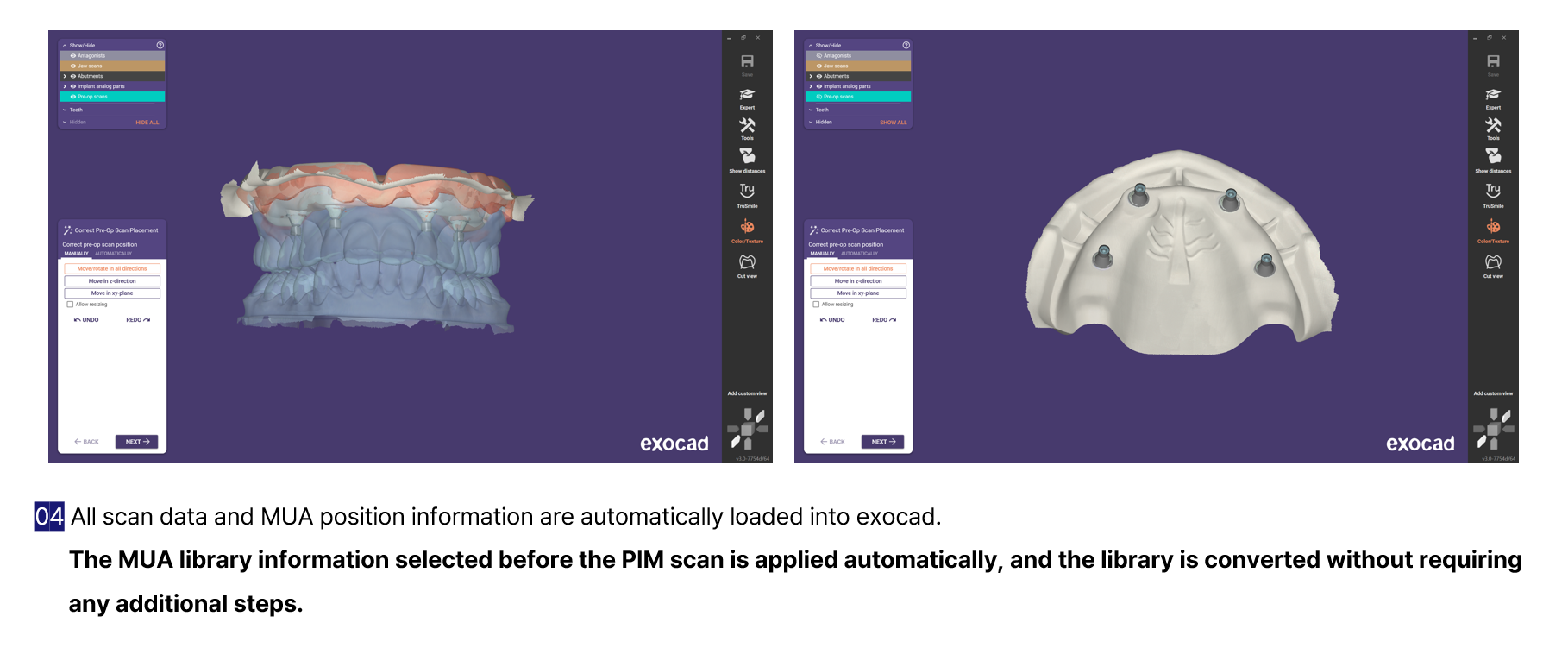

All scan data and MUA position information are automatically applied in exocad during export.

3. Importing PIM Data In exocde

Copy the dentalProject file path of the PIM project, then open exocad DB or CAD to automatically load the PIM data and proceed with the CAD task.

- Checking the dentalProject file path:

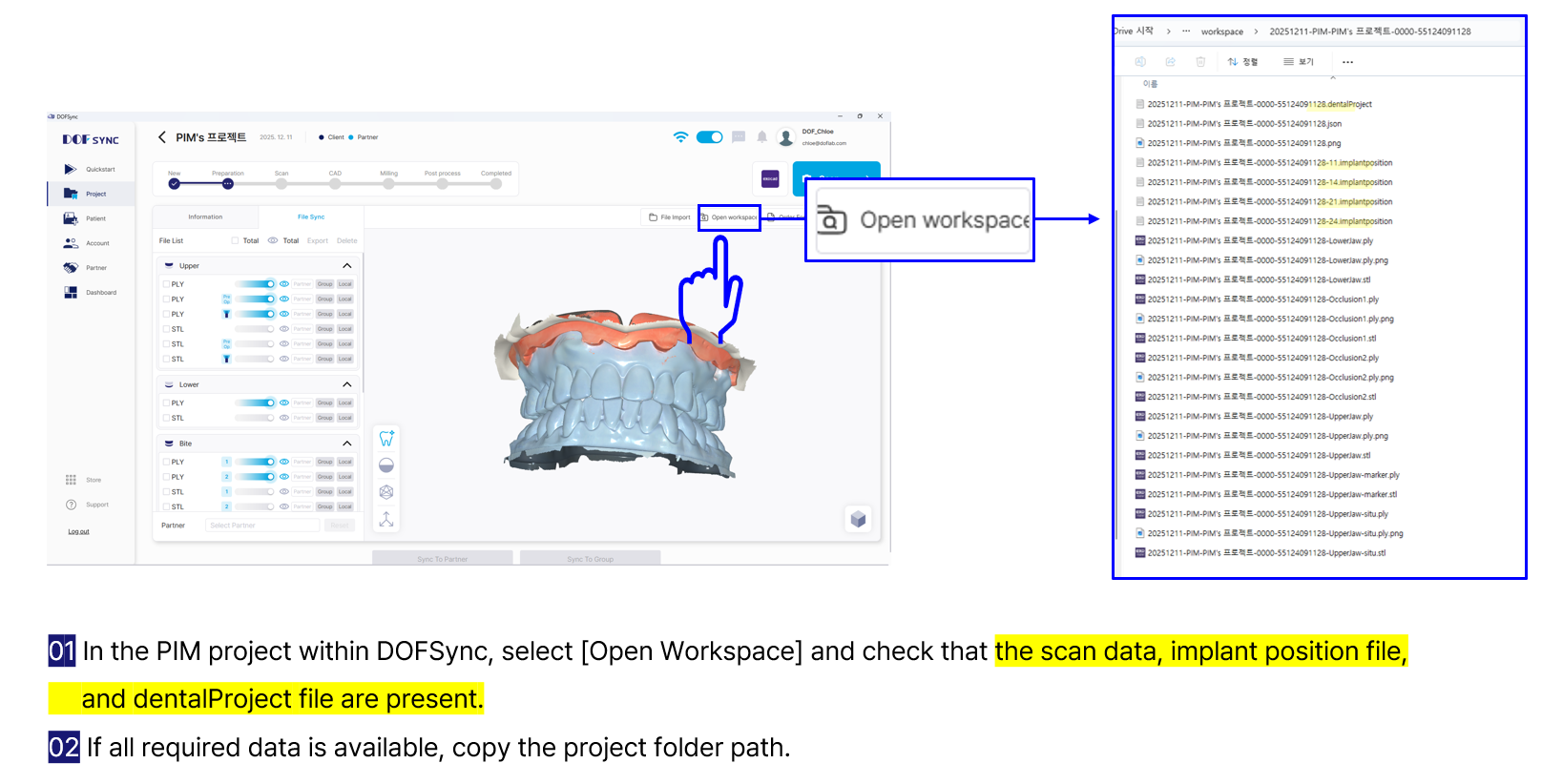

Use the steps below to locate and copy the path of the dentalProject file to be imported into exocad.

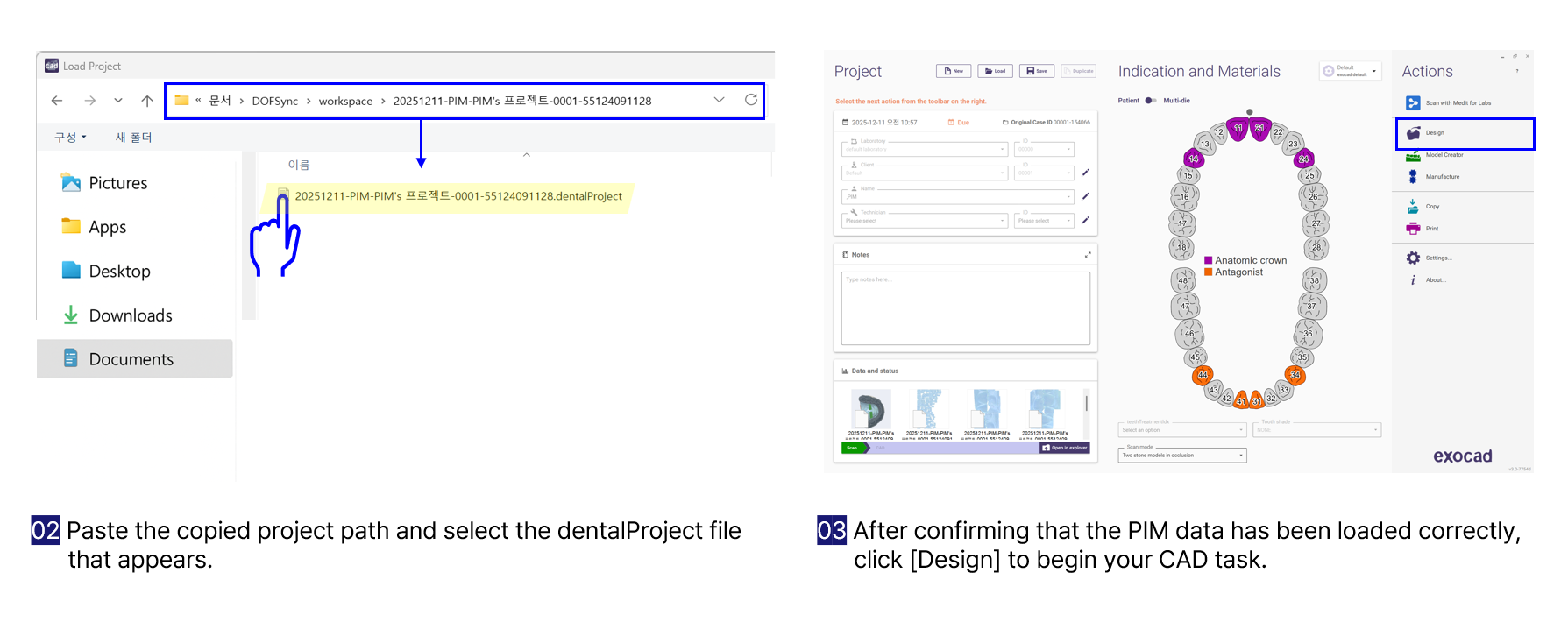

- Importing PIM data in exocad DB:

Open the dentalProject file located in the copied folder through exocad DB to load the PIM data.

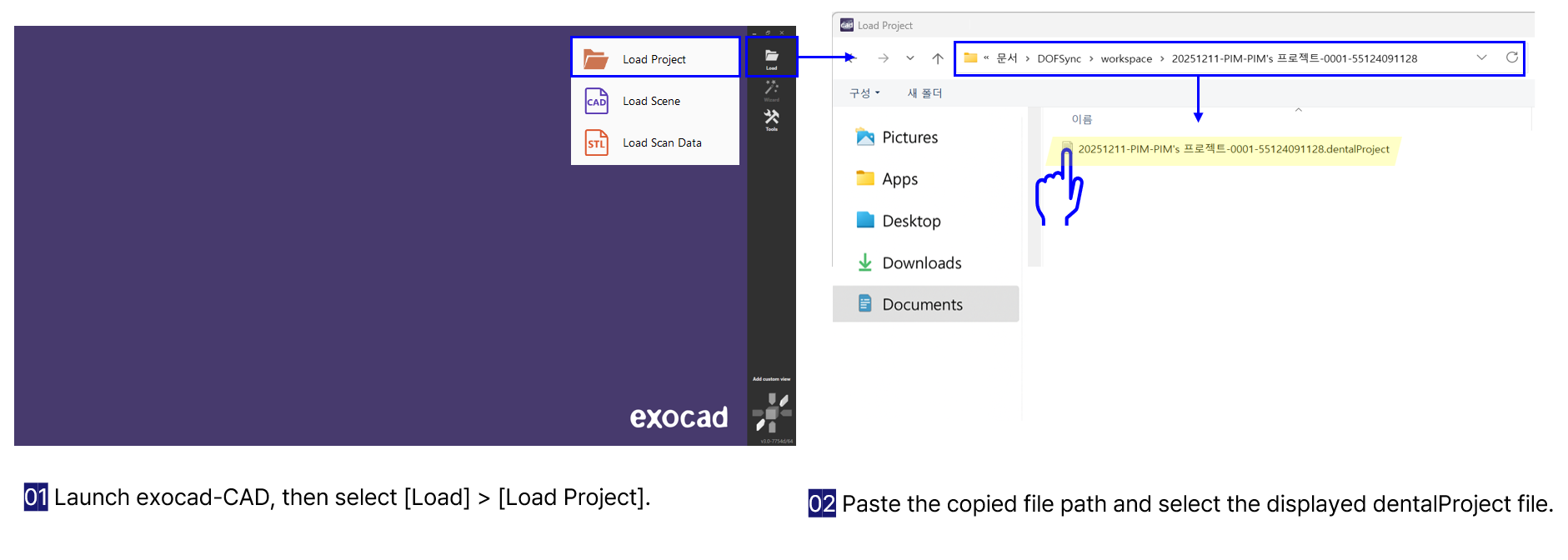

- Importing PIM data in exocad CAD:

Open the dentalProject file located in the copied folder through exocad CAD to load the PIM data.
