📌 Basic Interface Overview

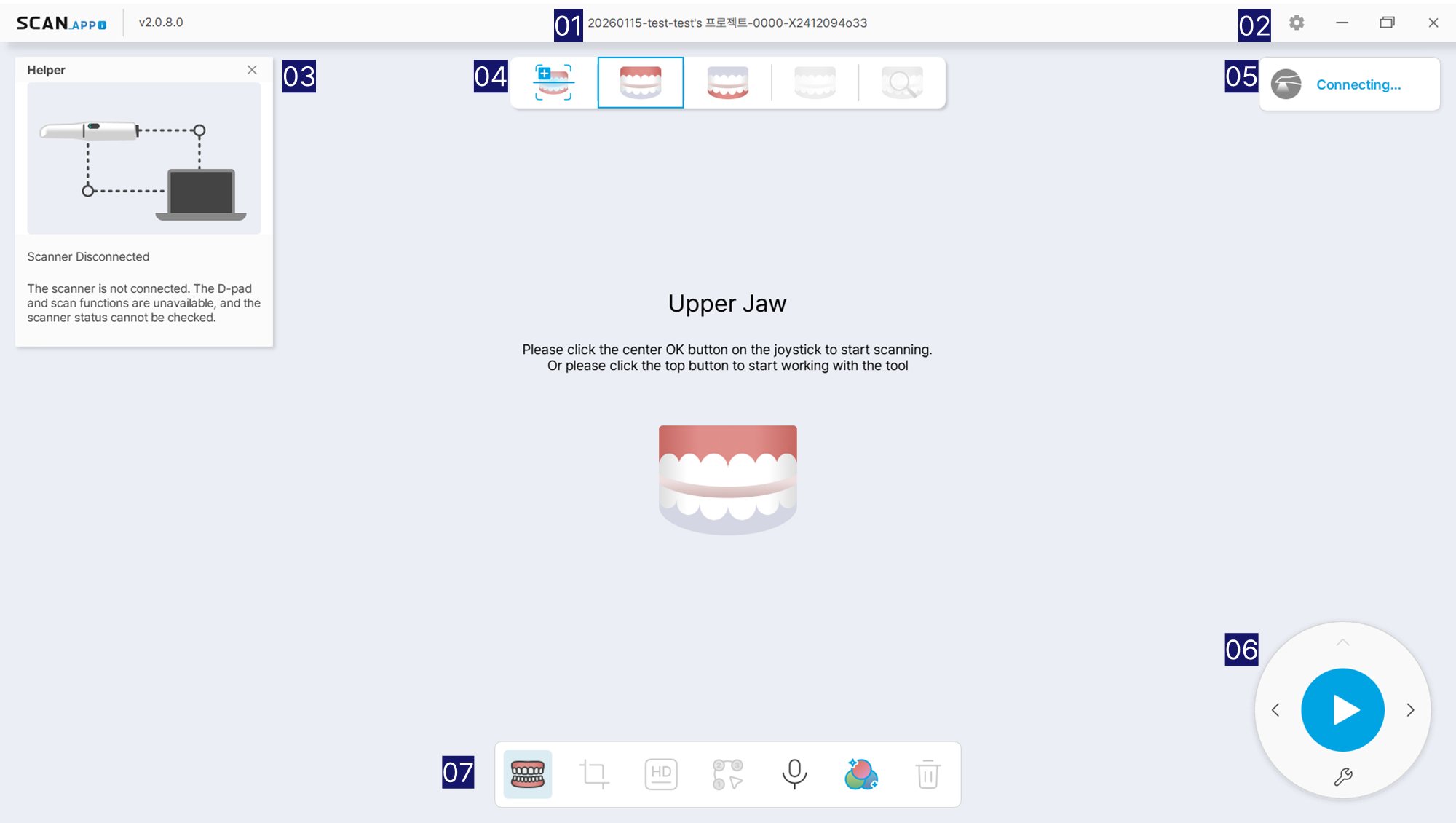

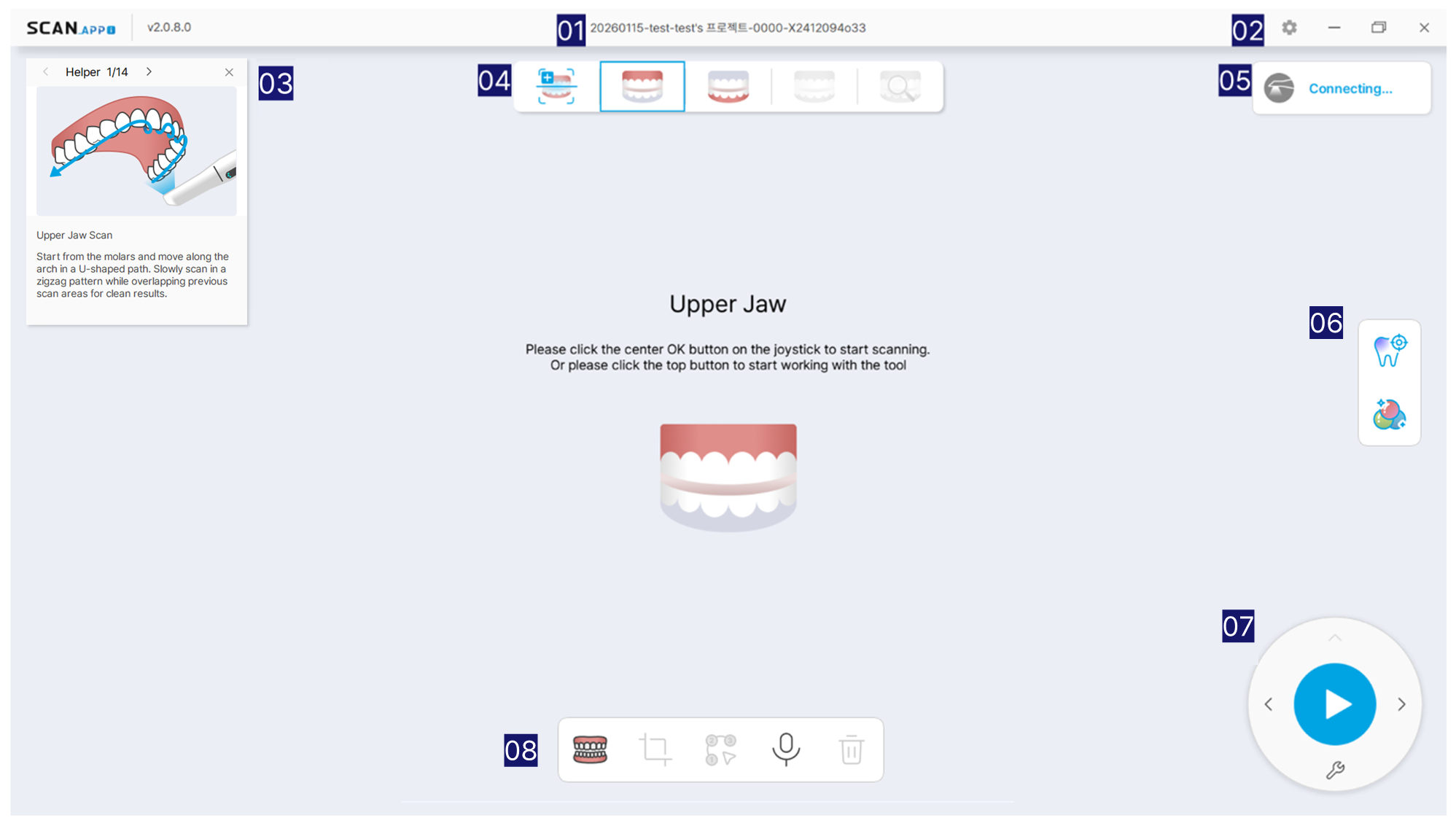

The ScanApp i (Air) interface is composed as shown below.
| No. | Function Description |
01 |
Displays the name of the currently active scan project. |
02 |
Provides access to program settings |
03 |
Helper(User Guide): Allows users to view the program usage guide and scanning instructions. |
04 |
Scan Step Indicator: Displays scan steps and provides the option to add additional scan steps. |
05 |
Scanner Status Indicator: Shows the connection status of the connected scanner. |
06 |
D-Pad Indicator: Enables on-screen control of the scanner’s D-Pad functions. |
07 |
Tool bar: Provides various tools required for scanning and data editing. |
1. 04 Add And Display Scan Steps
- Scan Steps:
When ScanApp i (Air) is launched, the maxillary·mandibular base, and bite scan steps are created by default.
Additional scan steps can be added as needed through DOFSync order settings or the Add Scan feature.
Icon Display |
Name |
Description |
Additional Scan |
Allows adding Pre-op scan or Scanbody scan steps. |
|
Maxillary Scan |
This step scans the maxillary base. |
|
Mandibular Scan |
This step scans the mandibular base. |
|
|
|
Maxillary·Mandibular |
This step scans the oral condition before treatment. Pre-scan data can be manually aligned with the base scan data. |
Maxillary·Mandibular |
This step scans the scanbody attached to the maxilla and mandible. |
|
Occlusal Scan |
This step scans the occluded state of both arches to align the data of each arch. |
|
|
|
Maxillary·Mandibular |
This step uses the PIM Guide to scan the PIM scanbodies outside the oral cavity. ※ This step can only be added through the DOFSync order form. |
Maxillary·Mandibular |
This step aligns the PIM scanbody data with the edentulous base data. |
|
Confirm |
This step calculates the scan data and allows review of the final results. After all scans are completed, move to the confirm step to generate and review the final scan data. |
- Add scan step feature:
When Add Scan is clicked, a secondary menu appears at the bottom of the screen, as shown in the image below.
From the secondary menu, maxillary/mandibular pre-scan and scanbody scan steps can be selected and added.
📘 Related Articles
2. 05 Scanner Status Indicator
Before starting the scan, check the scanner status displayed in the upper-right corner of the main screen.
Icon Display |
Description |
|
The scanner is powered off. Press the D-Pad round button to turn on the scanner. |
|
|

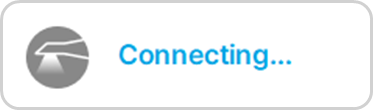

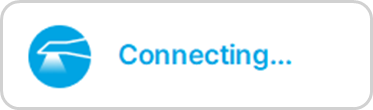

The scanner is powered on and attempting to connect. If the connection continues to fail, turn the scanner off and then on again to retry the connection. |
|
The scanner is connected normally and ready for scanning. |
If the scanner is powered on but continues to fail to connect to the PC, refer to the related articles below to troubleshoot the issue.
