๐ Final PIM Scan Data Overviewย
ย
1. Final Scan Dataย

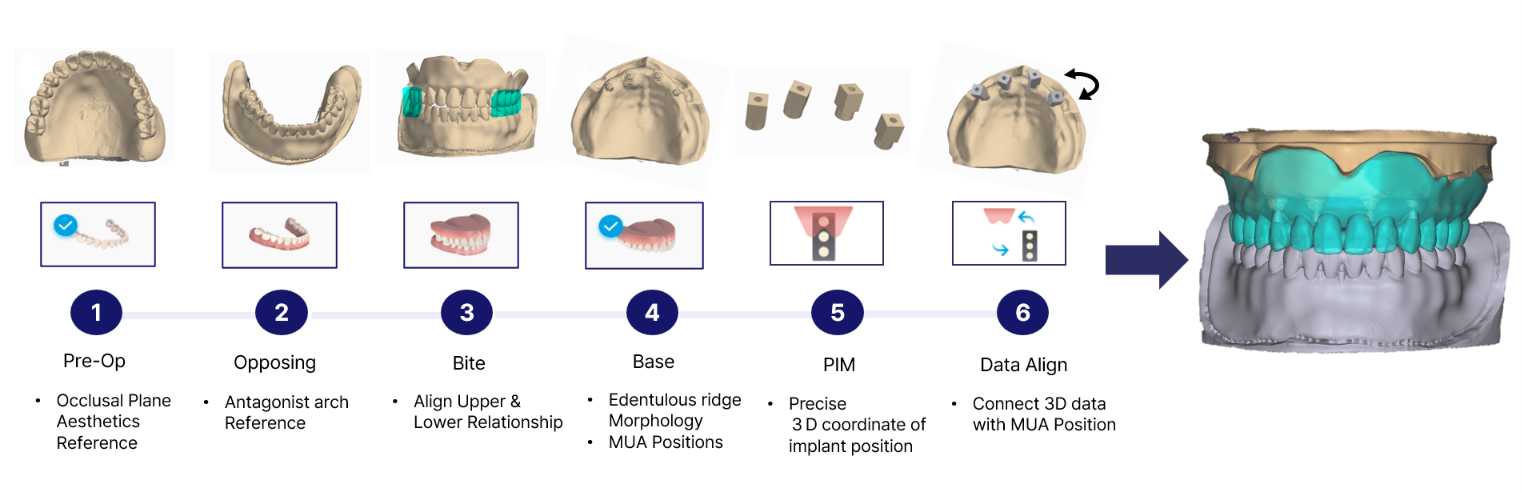

Upon completing the PIM solution scan according to the recommended workflow, the following data will be generated.
All data necessary for All-On-X prosthesis fabrication can be obtained.
ย
2. Data File Namesย
The data is saved with the following file names
Sync UI |
File Name | Data Information |
|
UpperJaw-situ LowerJaw-situ |
Pre-OP Scan Data |
|
| ย |

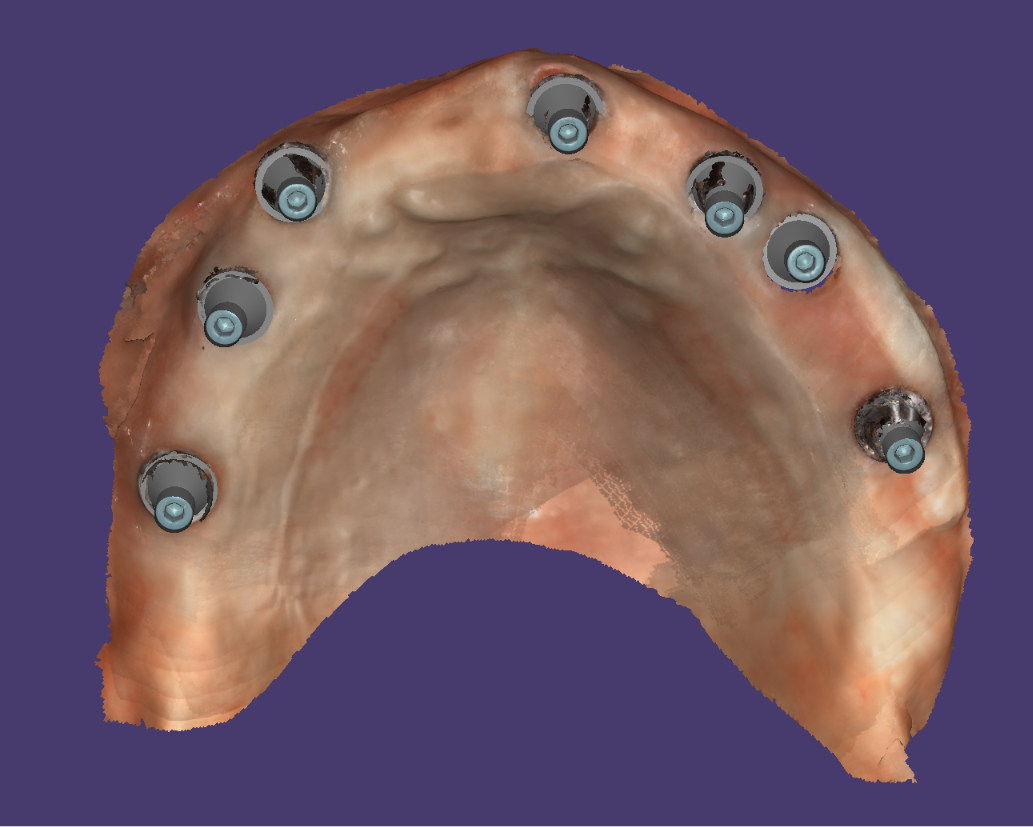

UpperJaw LowerJaw |
Base Scan Data |
|
|

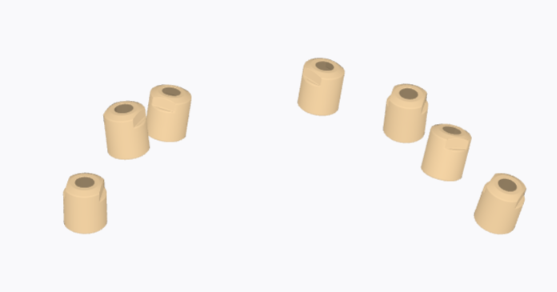

UpperJaw-marker LowerJaw-marker |
Scan Body Library Data by Implant Position |
|
|

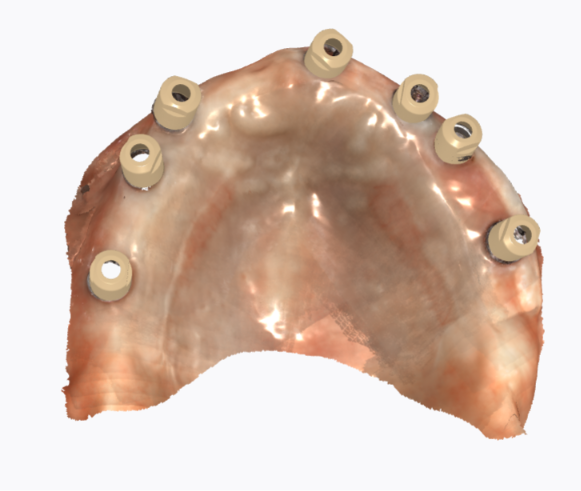

UpperJaw-muabase LowerJaw-muabase |
Base + Scanbody Library Data |
|
|

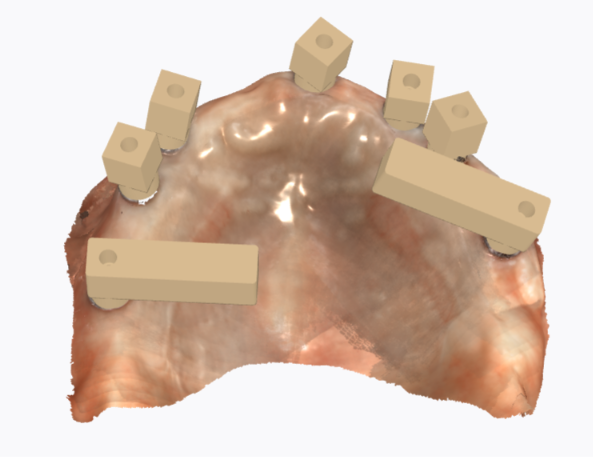

UpperJaw-PIM LowerJaw-PIM |
Base + PIM Scanbody Data |
|
|

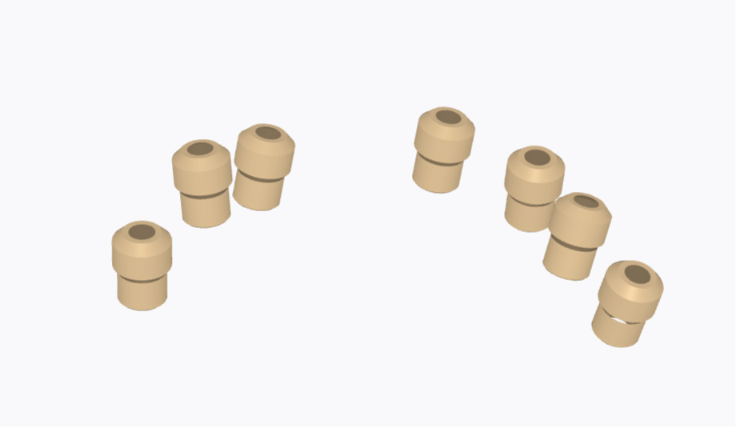

UpperJaw-Cap LowerJaw-Cap |
CAP Scan Body Library Data by Implant Position |
| ย | Occlusion (1, 2...) |
Occlusion Scan Data |
|

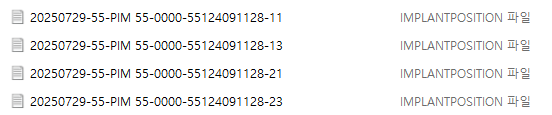

Date-Patient-Project-ID-Selected Tooth Number |
Implant positioning file data The implant positioning file contains MUA library coordinates. When linked with exocad, it is automatically converted into the MUA library. |
