📌 Change PIM Project After Scan

If the PIM order needs to be changed after completing the patient scan, refer to the instructions below.

After the scan is completed, changing only the PIM library and prosthetic information is recommended.

Changing the number of PIMs or the arch deletes the existing PIM scan data. If either item is changed, perform the PIM scan again.

1. Change PIM Library

If the wrong PIM library was selected, refer to the steps below to change the selected library.

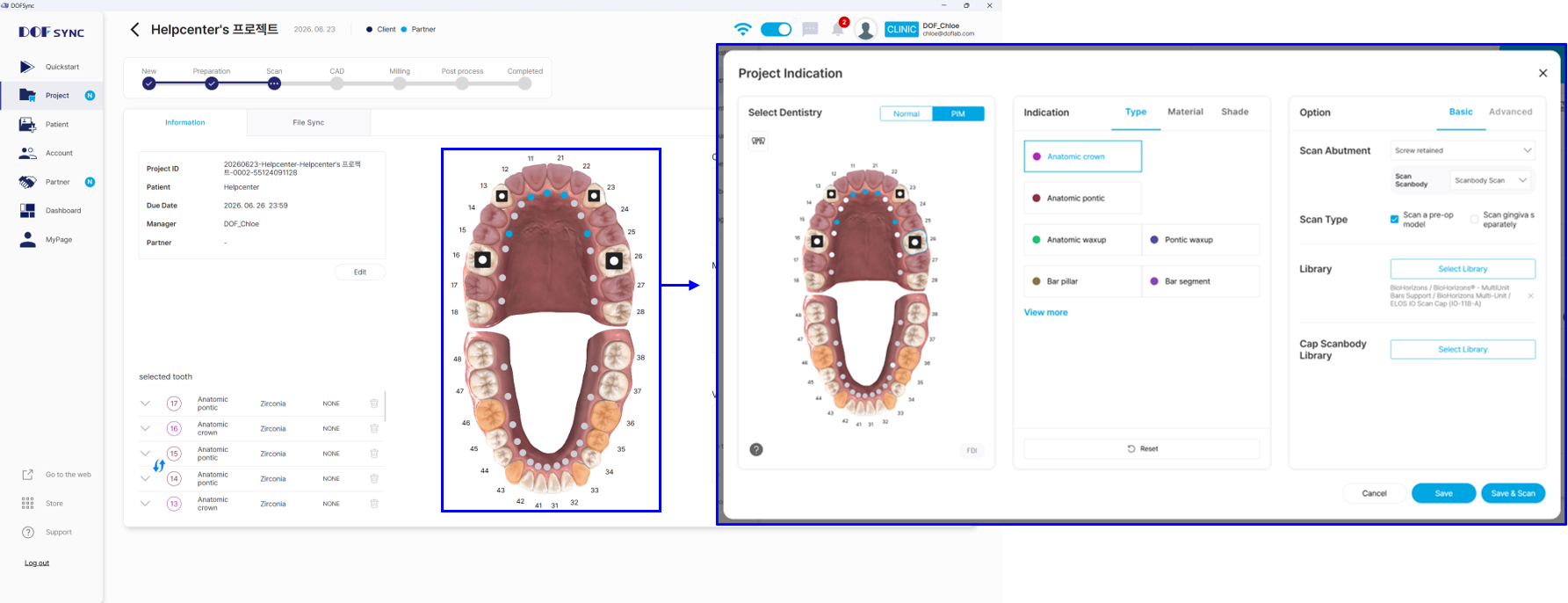

• Open the project and select any tooth to enter the Indication.

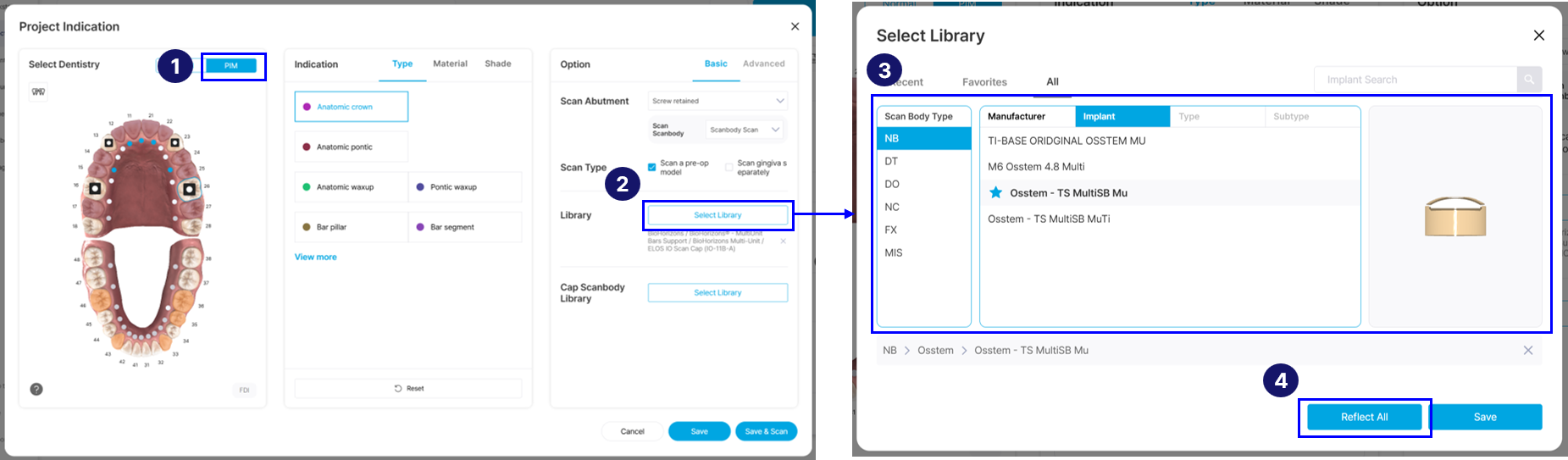

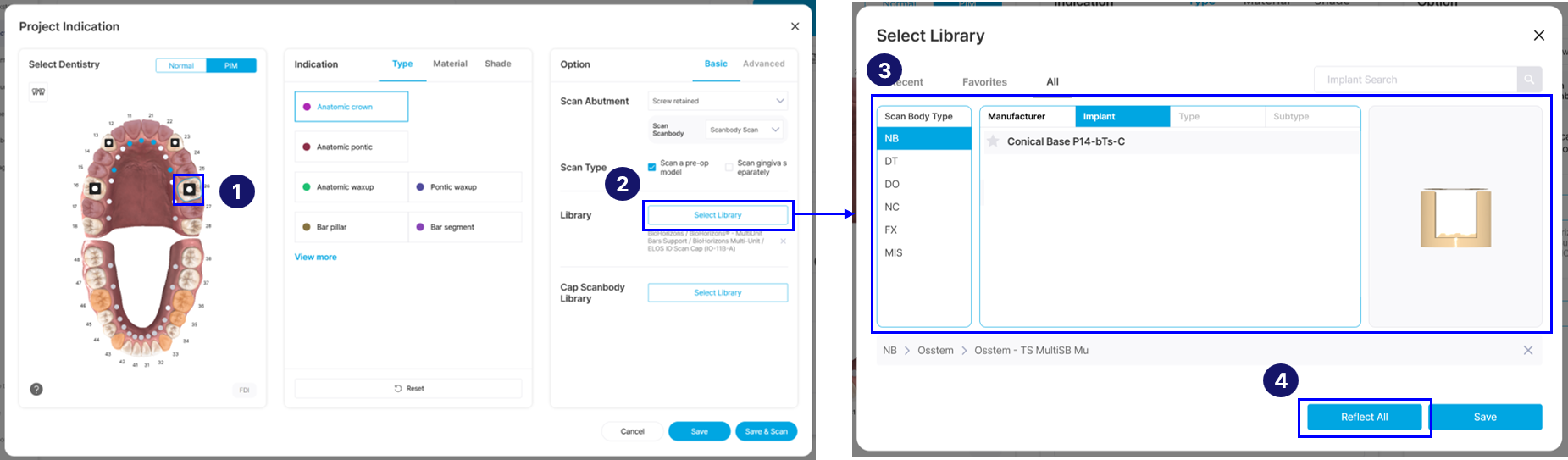

• Select 'PIM' in the Indication window, then click 'Select Library'.

• Select the desired library, then click 'Reflect All'.

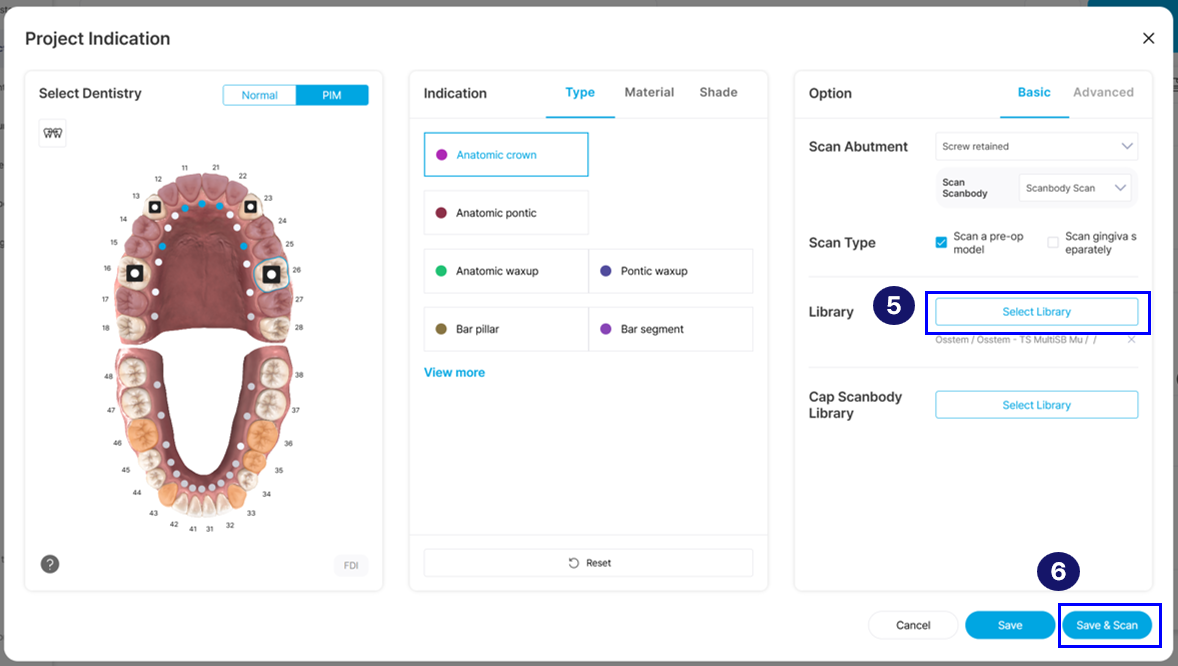

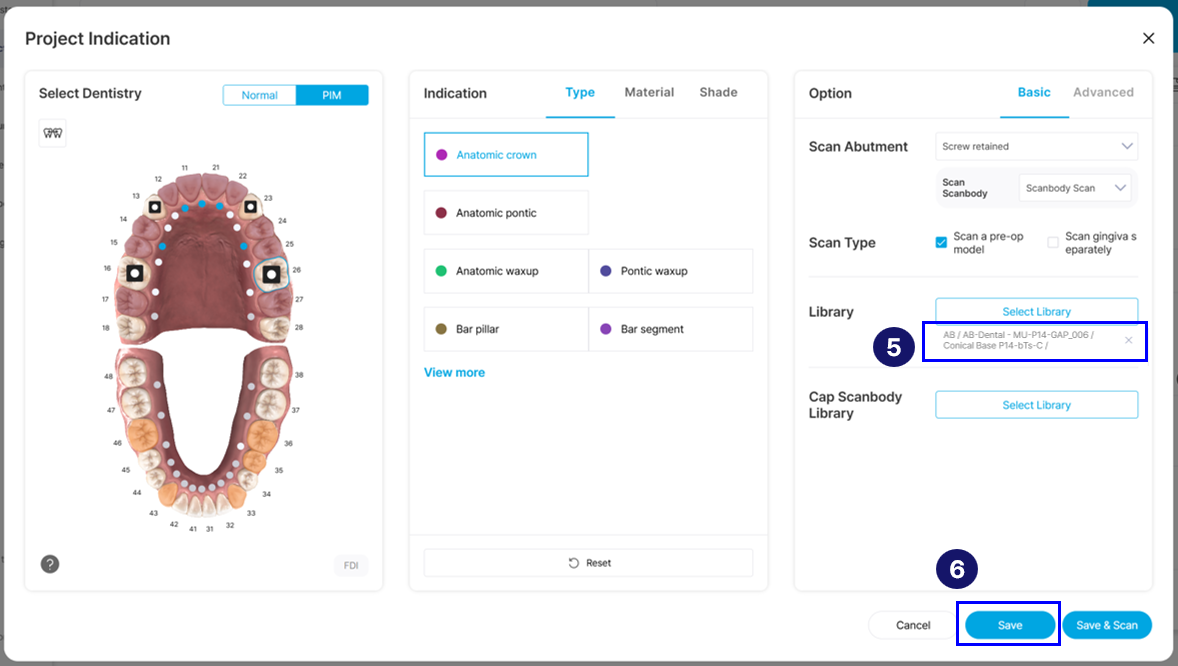

• erify the updated library, then click 'Save & Scan' to start the scan.

• The updated library is applied to the existing implantposition file, and the related marker and MUA base data is updated accordingly.



2. Change Prosthetic Information

Add or modify the prosthetic information in the PIM order by following the steps below.

• Open the project and select any tooth to enter the Indication.

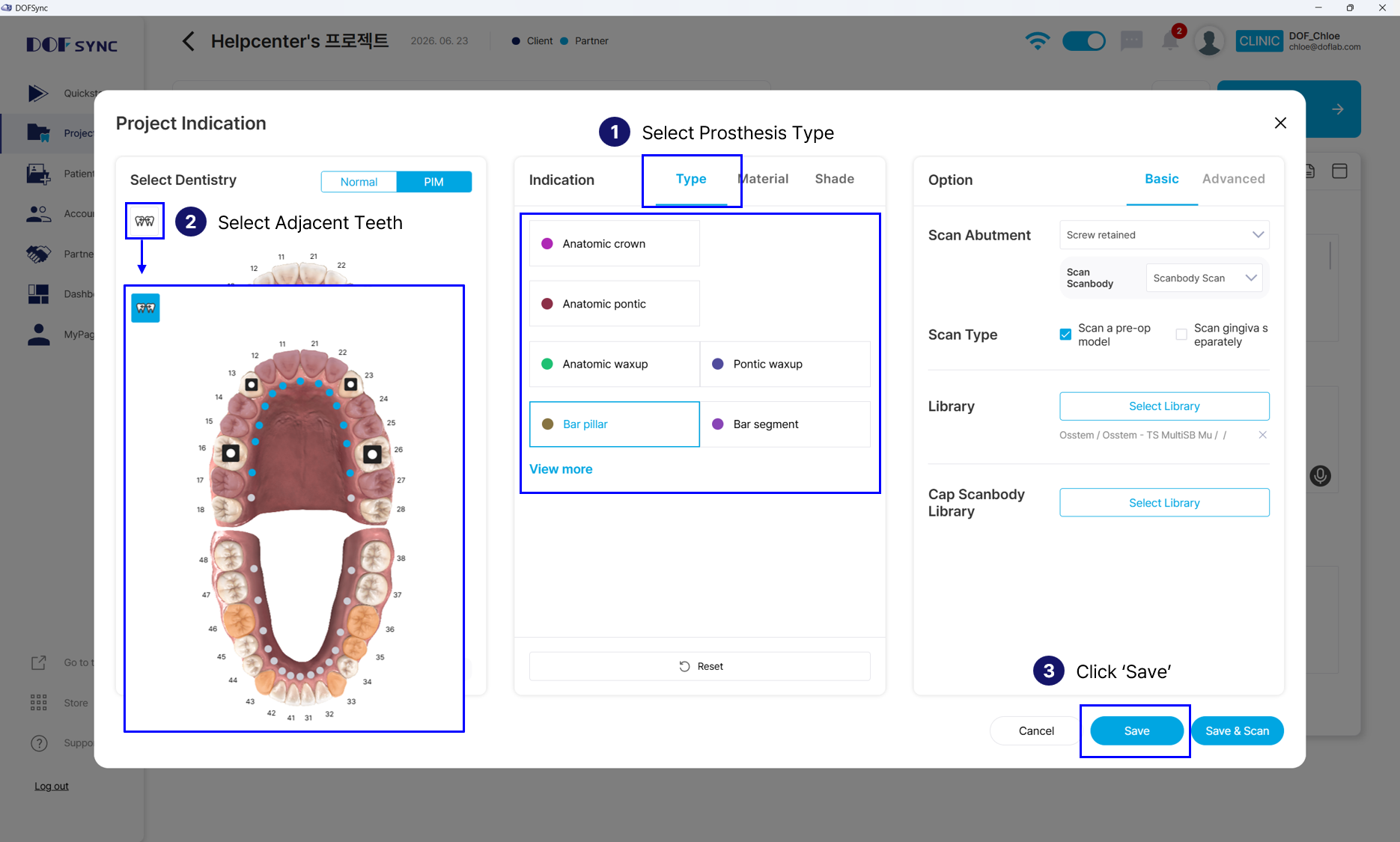

• Select the prosthetic type for the implant position, then click the 'Adjacent Teeth' icon. The adjacent tooth type is automatically updated based on the selected prosthetic type.

• Click 'Save' to save the changes.

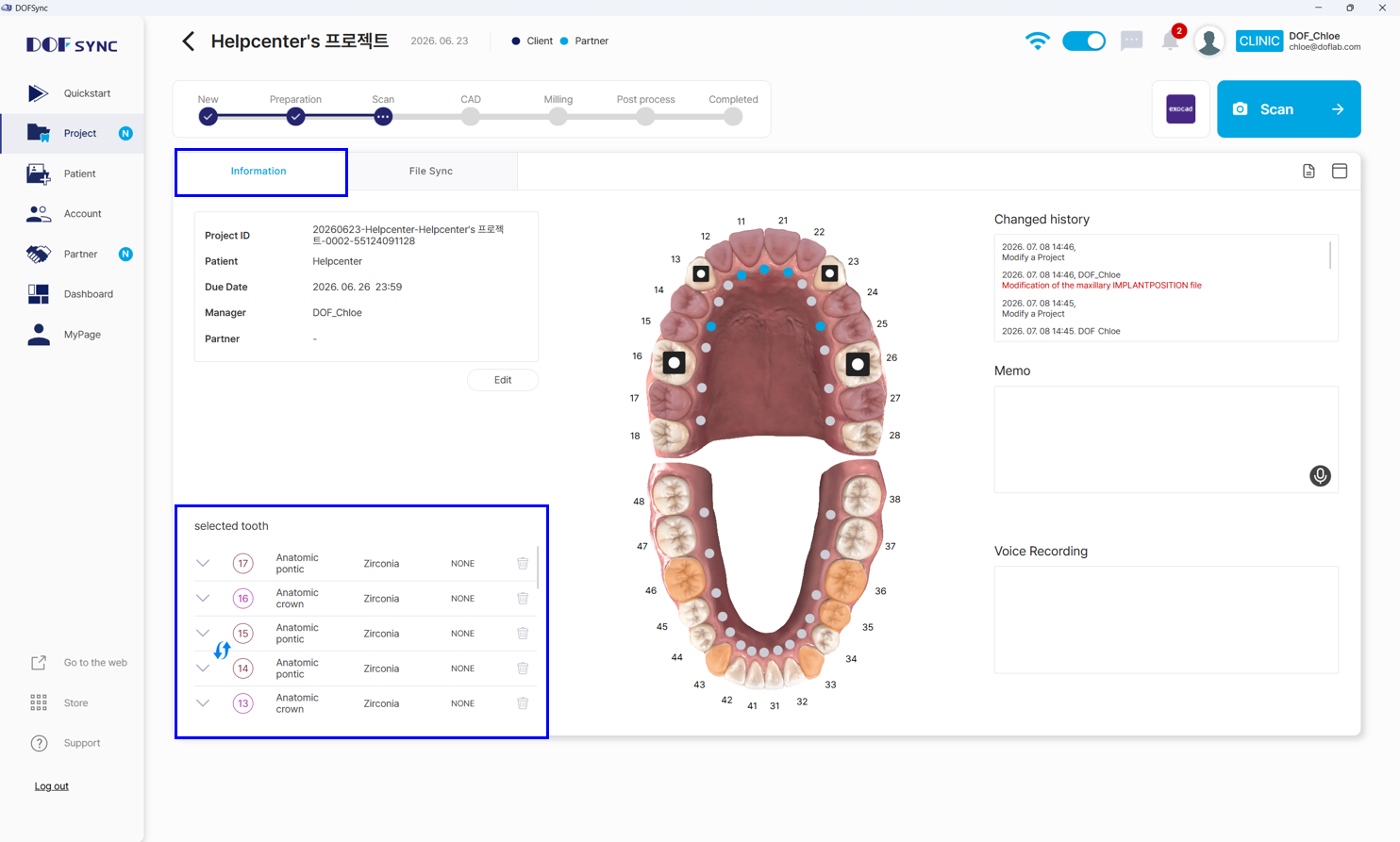

• The selected prosthetic type can be verified under 'Selected Tooth' in the project information.
