๐ Features Of The Cap Scanbodyย
ย
๐ What Is The Cap Scanbody?ย
ย
The Cap Scanbody is a scanbody that enables reliable alignment of PIM data and soft tissue data.
By automatically aligning base data and PIM data using the library, you can acquire PIM data more quickly and accurately.
ย

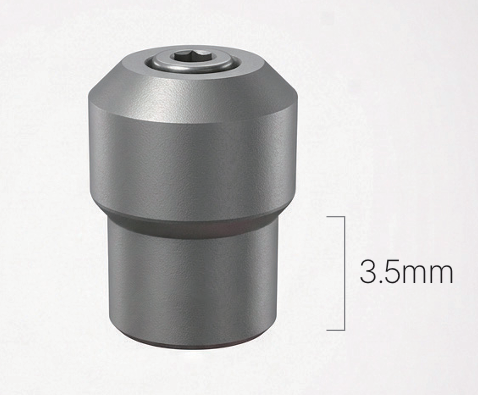

Cap Scanbody Information | |
Contents |
Included in the standard PIM KIT (8 included) |
Material |
6061 Aluminum (a high-strength aluminum alloy) |
How to Use |

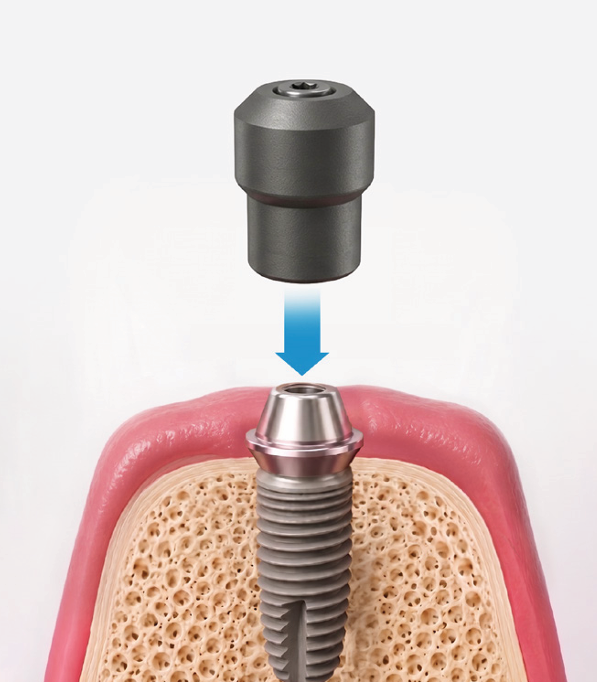

After attaching it to the MUA, scan it together with the edentulous soft tissue in the Base stage. โป For PIM scanning only. It cannot be used as a healing abutment. |
Maintenance |
Steam Sterilization (Autoclave)
|
ย
๐ Features Of The Cap Scanbodyย
ย

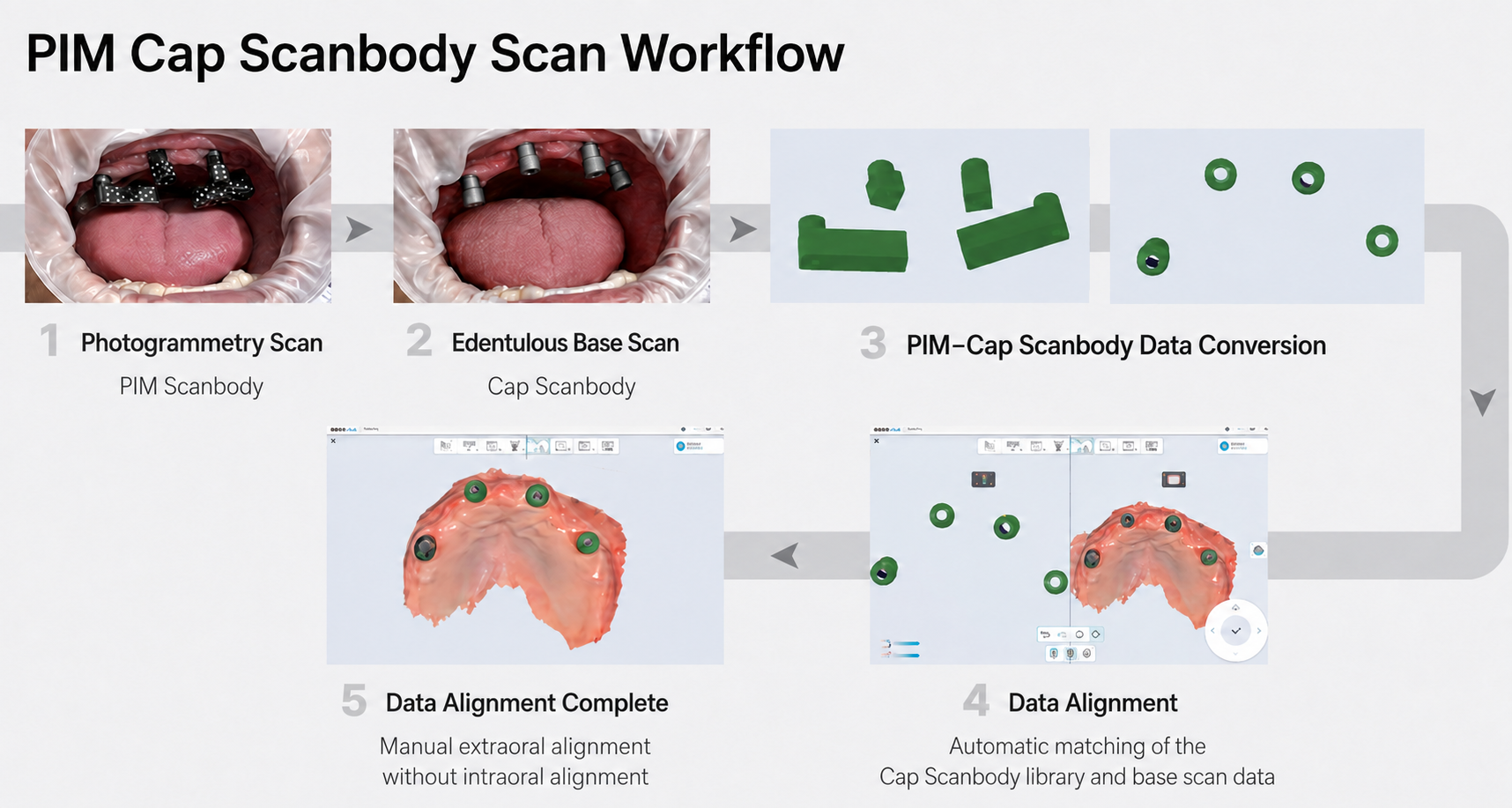

ย 1. Accurate PIM Data Alignmentย
In edentulous patients, the simple contour of the gums can make it difficult to align PIM data using soft tissue as a reference.
With the CapScanbody, data is automatically aligned using the library, making it easier to align soft tissue data and PIM data accurately.
ย
๐ Related Video
ย

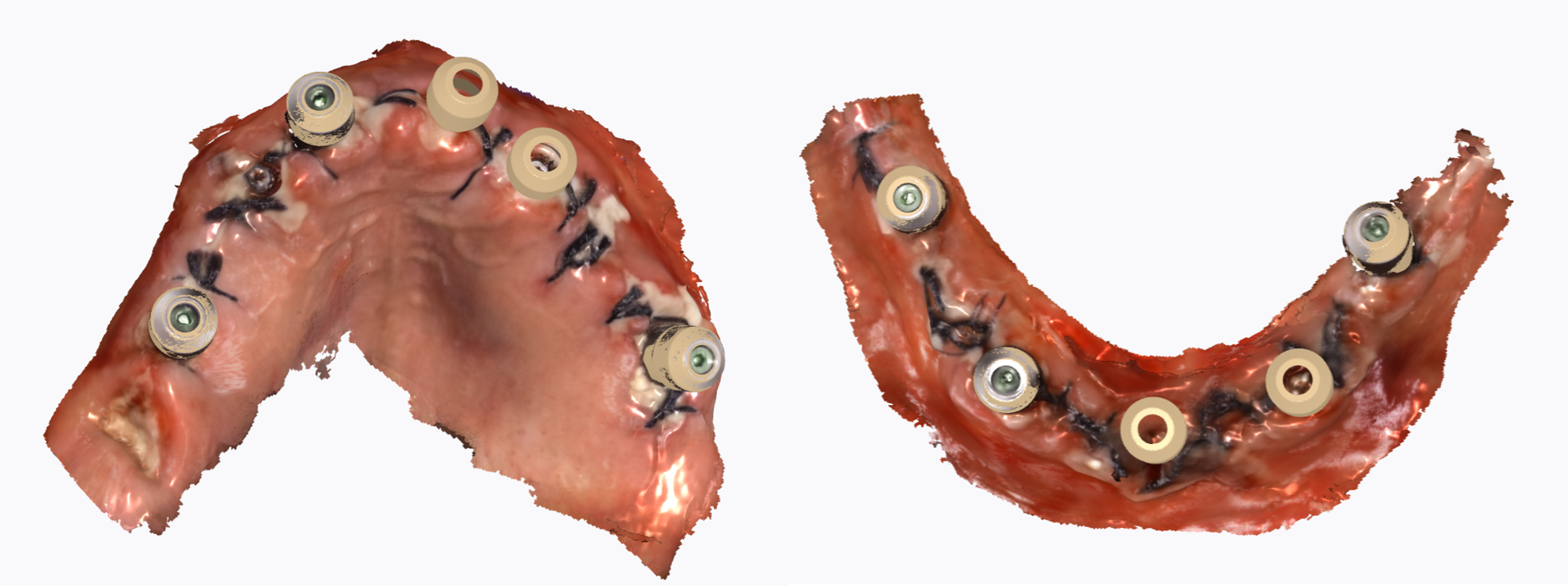

2. Use In Surgical Casesย
In surgical cases, bleeding, sutures, and other factors can alter the soft tissue, making it difficult to align PIM data using soft tissue as a reference.
Scanning with the Cap Scanbody attached reduces the effect of moving soft tissue data, allowing faster and more reliable alignment of PIM data.
โปย We recommend using the CapScanbody in edentulous surgical cases for accurate and reliable alignment of PIM data.
ย
3. Shorter Intraoral Scanning Processย
Using the Cap Scanbody can reduce the intraoral scanning required during the PIM alignment stage of the standard workflow.
ย
๐ Related Articles
ย
