- What Is The PIM Solution?

📌What Is The PIM Solution?

📌 Advantages Of The PIM Solution

📌 Knowledge About The PIM Solution

📌 What Is The PIM Solution?

The PIM (Precise Implant Measurement) solution is DOF’s high-precision scanning solution, specifically optimized for All-On-X cases.

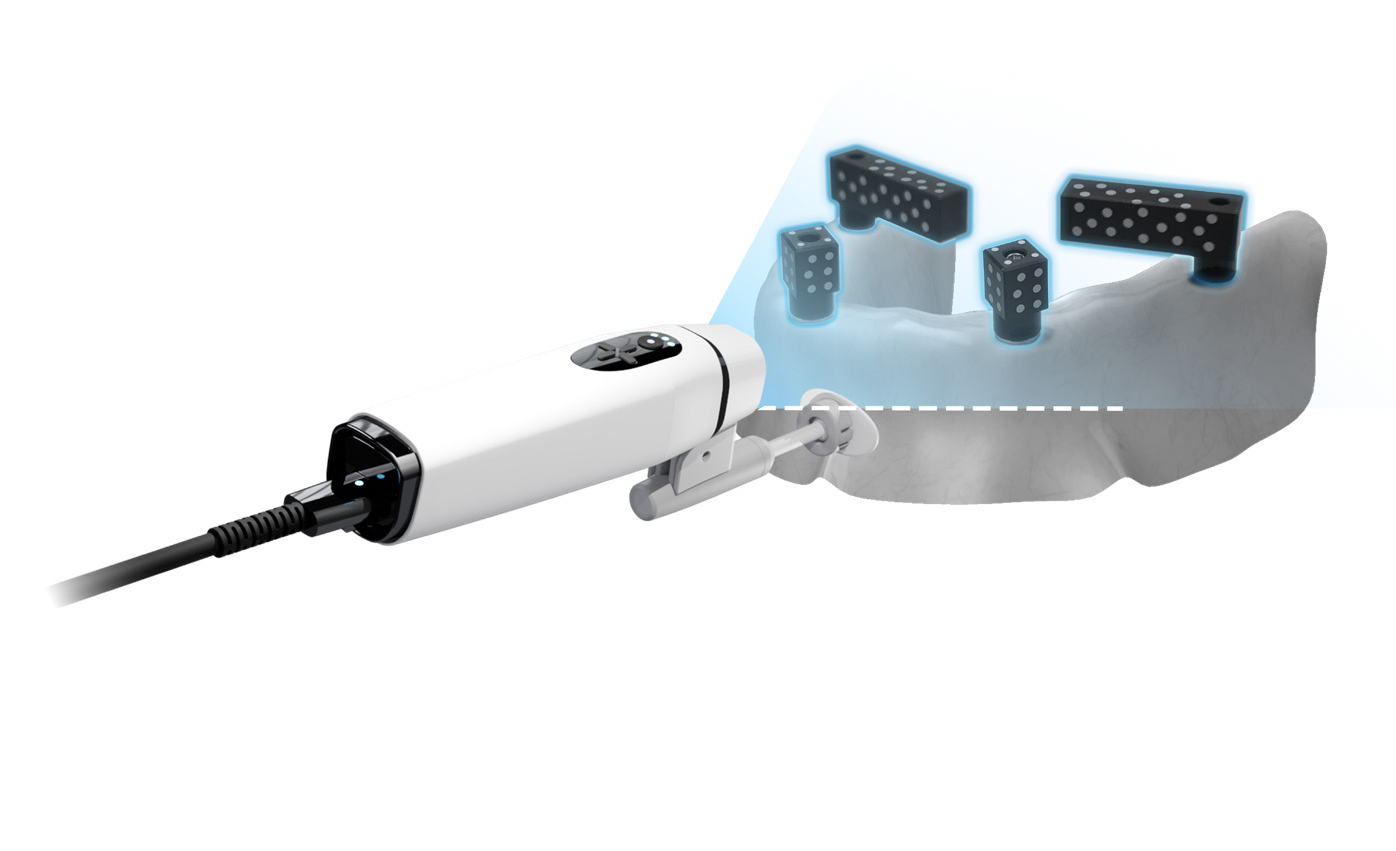

Developed with DOF’s proprietary technology, the PIM solution expands the scanning area through a dedicated PIM Guide equipped with an illumination extension lens, enabling the simultaneous capture of multiple scan bodies outside the oral.

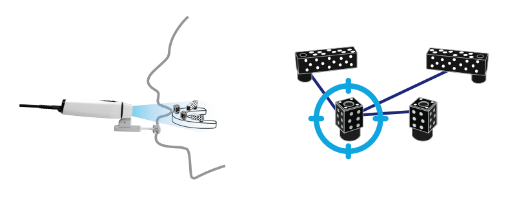

By scanning a wide area in a single shot, it instantly recognizes the position of scan bodies without stitching, providing the precise location of implants.

📌 Advantages Of The PIM Solution

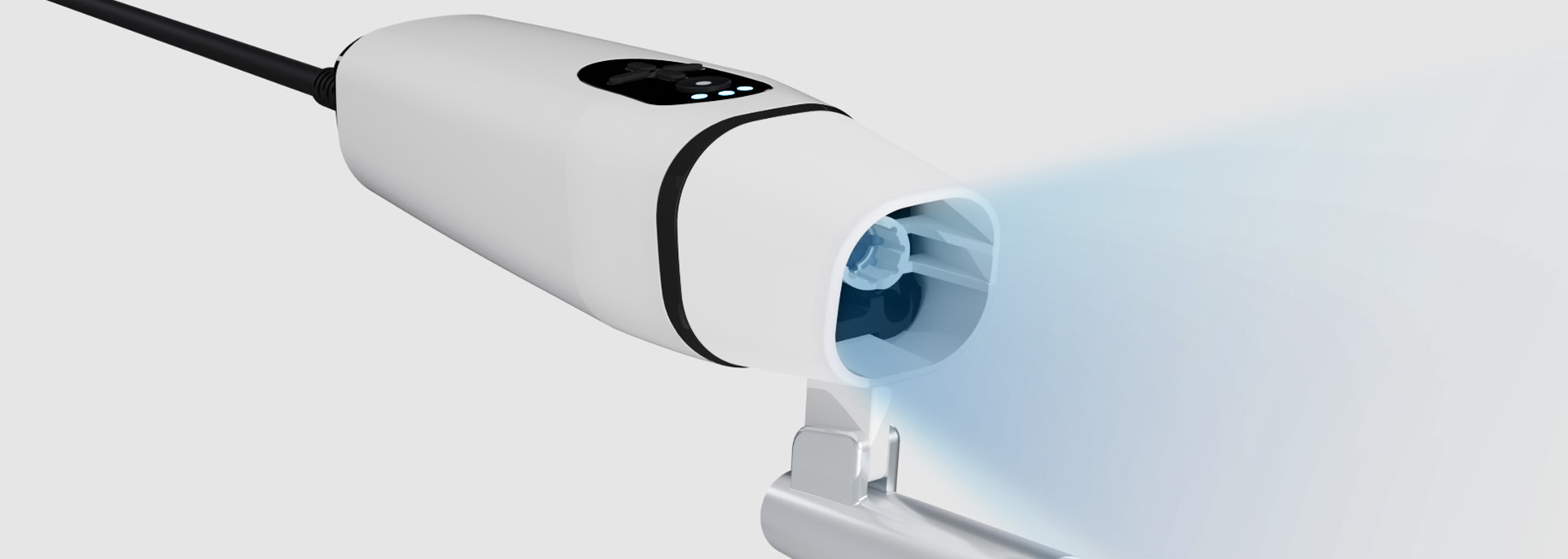

The PIM solution of FREEDOM Air is an All-in-One system that combines all the advantages of intraoral scanners and extraoral photogrammetry scanners.

It delivers the convenient workflow of an intraoral scanner along with the high accuracy of an extraoral photogrammetry scanner. In particular, it enhances the data alignment process, which used to be cumbersome in conventional methods, allowing for an easier and faster workflow.

By utilizing photogrammetry, which captures images from multiple angles simultaneously, it provides distortion-free and highly accurate 3D data.

This enables precise acquisition of scan body positions, ensuring exceptional accuracy and reliability even in complex full-arch cases.

Conventional Intraoral Scanners		FREEDOM Air PIM Solution
x Stitching-based Scanning	Scanning Method	✓ Photogrammetry-based Scanning
x Capturing repeated scans of narrow areas	Scan Area	✓ Capturing wide area in a single scan
x Recognizing the outer shape of the scanbody	Scanbody Recognition	✓ Recognizing the unique coded scanbody
x Higher risk of data distortion	Accuracy	✓ Delivering high precision results

📌 Knowledge About The PIM Solution

1. All-on-X

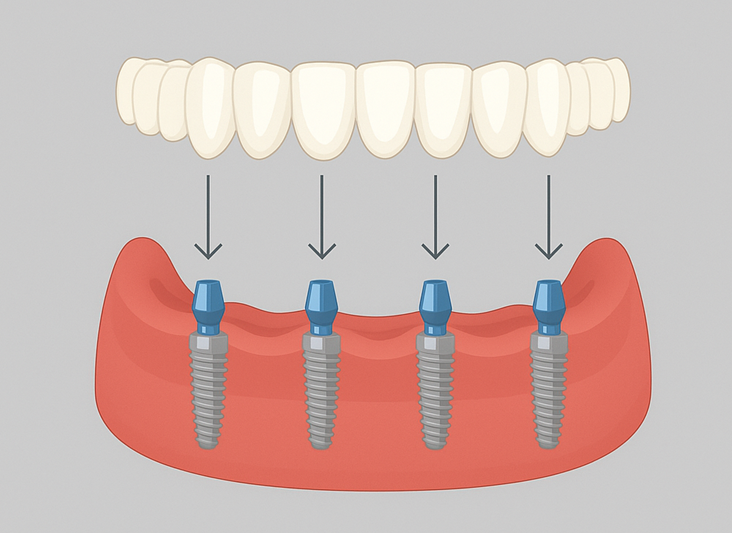

All-on-X is a specialized solution that enables full-arch restoration by supporting all teeth with X number of implants.
It is a prosthetic treatment method designed for fully edentulous patients or patients with severely damaged teeth.

“X” represents the number of implants, commonly 4 (All-on-4) or 6 (All-on-6).

2. MUA (Multi-Unit Abutment)

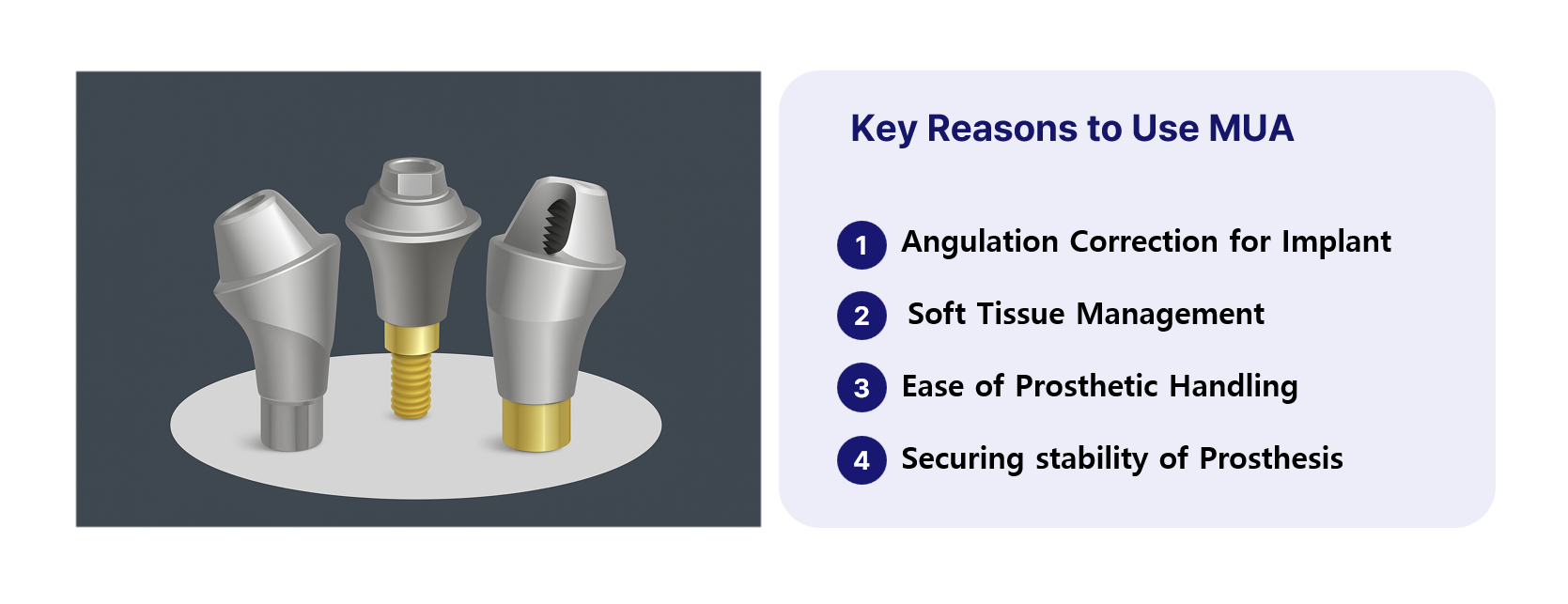

Multi-unit abutments (MUA) connect the implants to the final prosthesis and are used in full-arch implant restorations such as All-on-X.

Various companies offer MUAs in different shapes and angulations, and the MUA systems compatible with the PIM solution can be found in the document below.

3. Photogrammetry

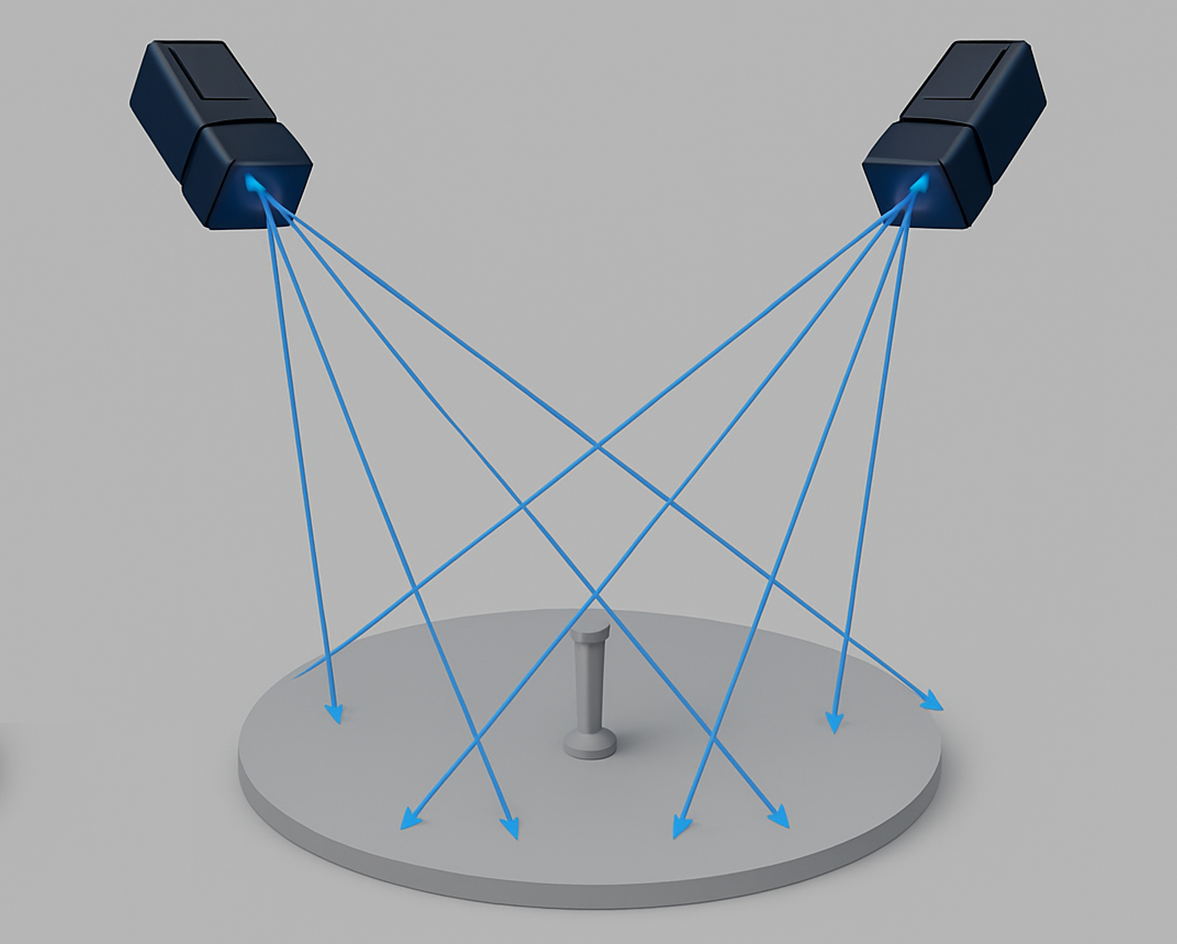

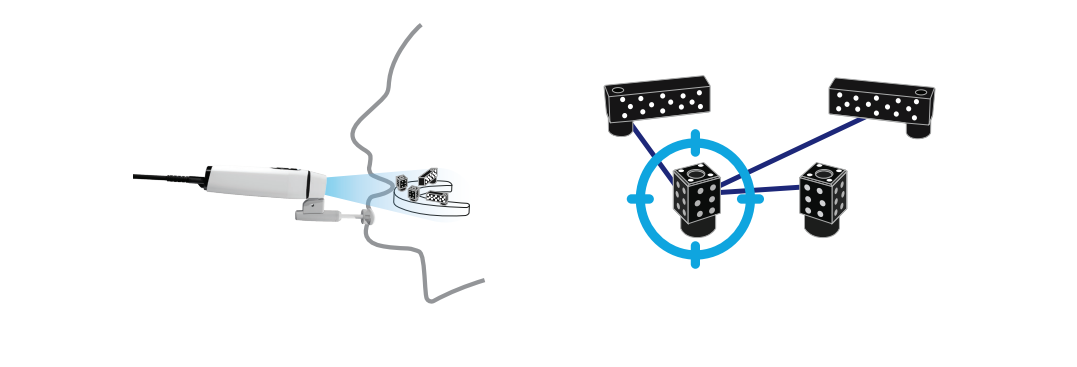

Photogrammetry is a technology that creates 3D data using photographs taken from multiple angles.

By analyzing these images and calculating 3D coordinates, it provides more precise measurements of implant positions compared to conventional methods (such as scan body scanning), resulting in higher data accuracy.

This makes it an ideal approach for All-on-X cases, where accurate implant position data is essential.

4. Essential Scan Data For Fabrication All-On-X Prosthesis

For All-On-X prosthesis fabrication, the following data is essential. All required data can be obtained using DOF’s PIM solution.

Edentulous arch with MUAs	Sanbody	Opposing arch	Bite

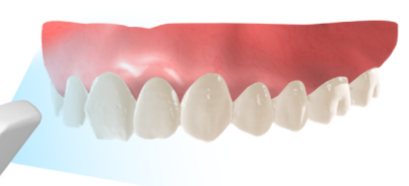

Capture the gingiva shape and MUA geometry for prosthetic planning.	To accurately record the position and orientation of the implants using scan bodies.	To obtain the opposing arch anatomy for accurate occlusion and functional prosthetic design.	To capture the occlusal relationship between the upper and lower arches.
