📌 FREEDOM i Battery Requirements
📌 How To Attach The FREEDOM i Battery
📌 FREEDOM i Battery Status Check
📌 FREEDOM i Battery Requirements
To use FREEDOM i, a battery that meets the requirements must be properly attached inside the scanner.
Using a battery that does not meet the requirements, or attaching it incorrectly, may cause scanner malfunction.
FREEDOM i Battery Requirements | |
Category |
Specification |
Series |
18650 1INR19/70 |
Type |
Li-ion Battery |
Maximum Output Voltage |
4.2V |
Recommended Capacity |
Around 3500 mAh |
Nominal Voltage |
3.6V 3500mAh (12.6W) |
Dimensions Tolerance |
Diameter : Ø18.0mm ~ 18.9mm Length : 70mm ±1mm |
- Recommended model: ANSMANN Rechargeable Battery, Li-Ion, 18650, 3.6V
📌 How To Attach The FREEDOM i Battery
Open the battery cover at the bottom of the scanner and insert the battery with the negative terminal (-) facing inward and the positive terminal (+) facing outward. Then, close the battery cover.
Even when using a wired connection, a battery must be installed inside the scanner.
1. Remove The Battery Cover

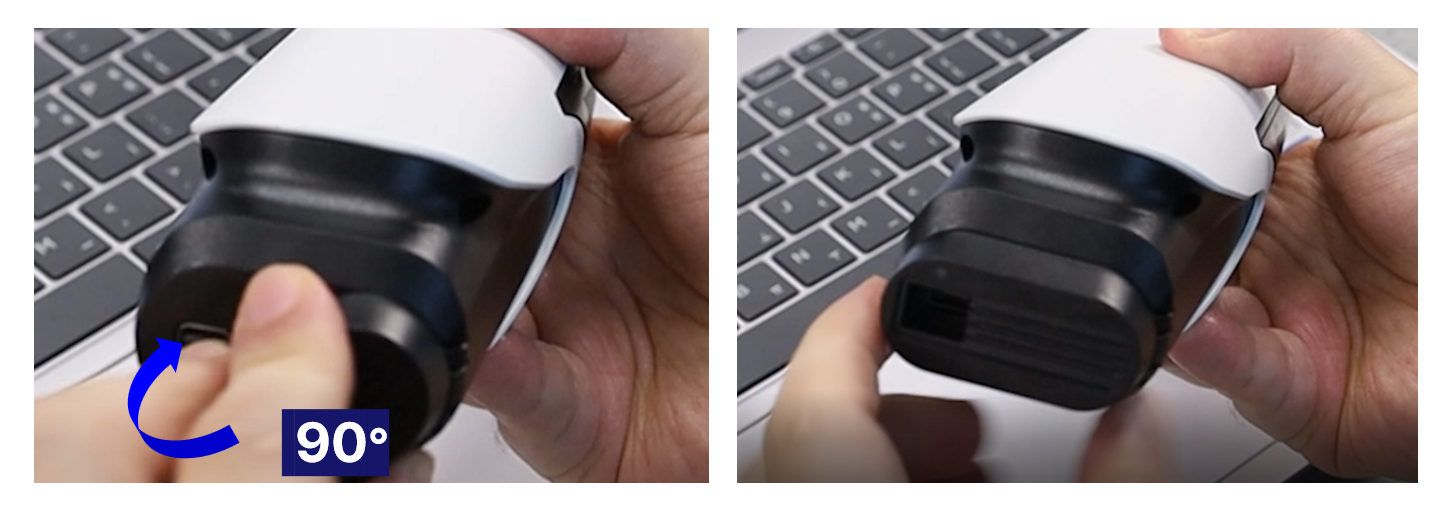

Rotate the battery cover 90° counterclockwise to remove it.
2. Insert The Battery

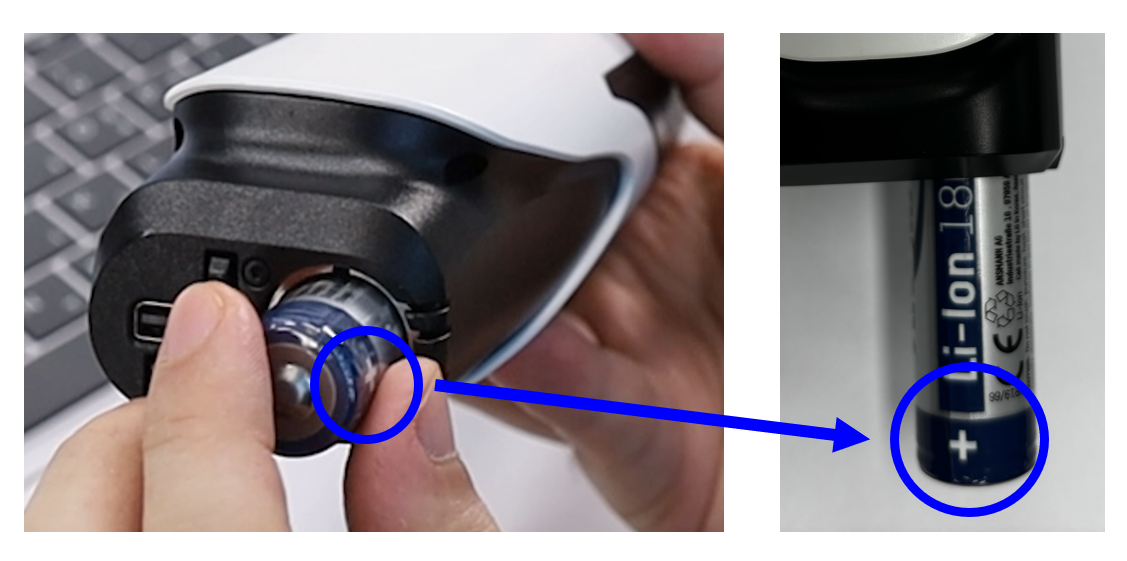

When inserting the battery, make sure the positive (+) terminal is facing outward.
3. Attach The Battery Cover

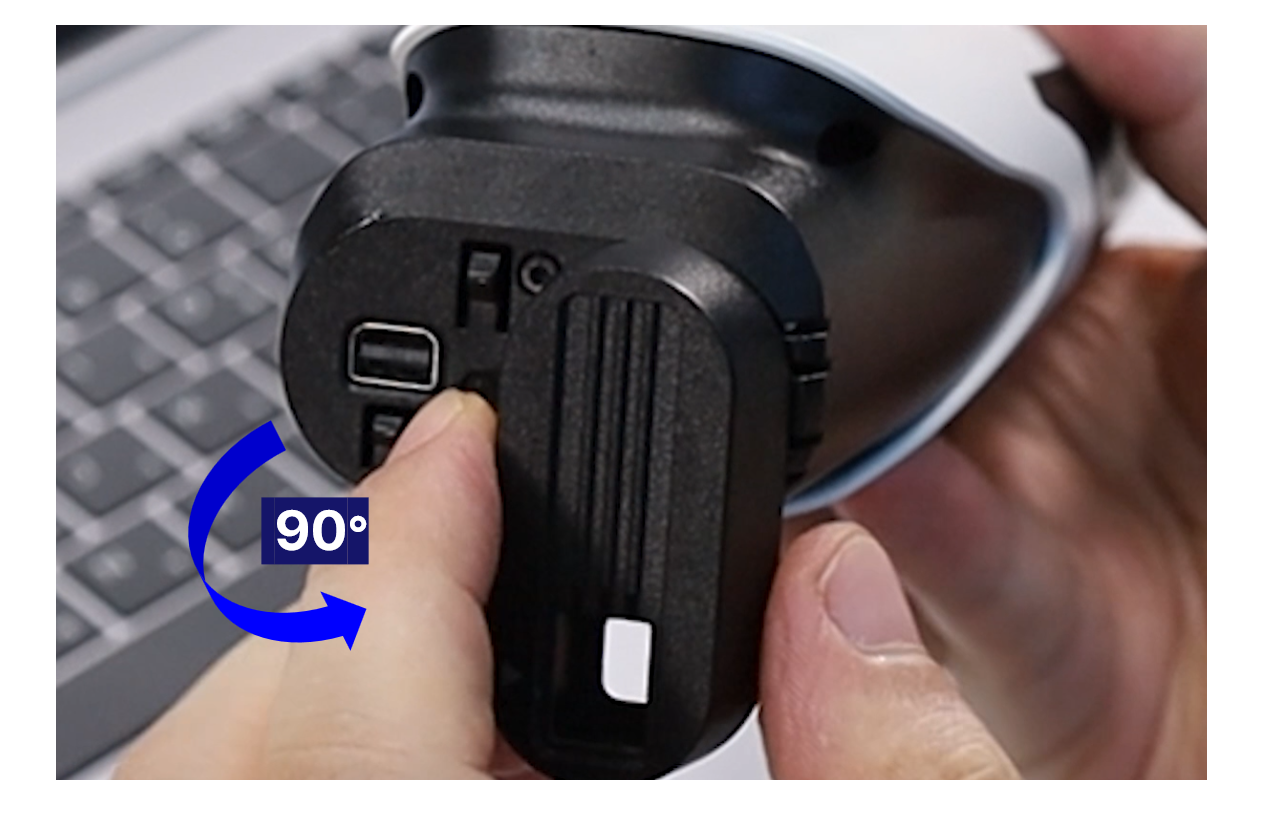

After inserting the battery, reattach the cover to the scanner.
- Align the grooves on the scanner with the pins on the cover.
- Rotate the cover 90° clockwise to lock it back into place.
▶️ Related Video
📌 FREEDOM i Battery Status Check
The charging status of the battery installed in FREEDOM i can be checked as follows.
1. Checking the Battery Status via the LED Panel
After inserting the battery and turning on the power, you can check the battery status through the LED panel on the scanner.
LED Status Display |
Description |
Troubleshooting |
All LEDs On |
Battery level is sufficient |
The scanner is prepared with no issues. Proceed with scanning. |
Two center LEDs blinking rapidly |
Low battery or |
1. Check the battery connection. 2. If the connection is fine, replace with a fully charged battery or connect via cable for immediate charging. |
📘 Related Articles
2. Checking the Battery Status via ScanApp i

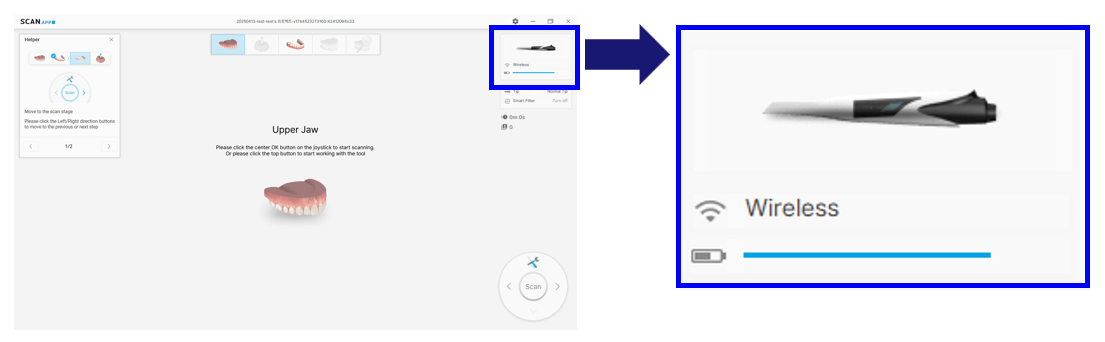

After inserting the battery and turning on the power, you can check the battery status by the color indicator in the scanner status panel located at the top-right corner of ScanApp i.
Battery Status Color |
Battery Level |
Troubleshooting |
|
Blue |
Above 80% | Proceed with scanning |
|
Green |
Below 80% and above 30% | Proceed with scanning |
|
Red |
Below 30% | Scanning performance is reduced due to low battery. Battery needs to be charged or replaced with a fully charged battery. |
📌 FREEDOM i Battery Charging

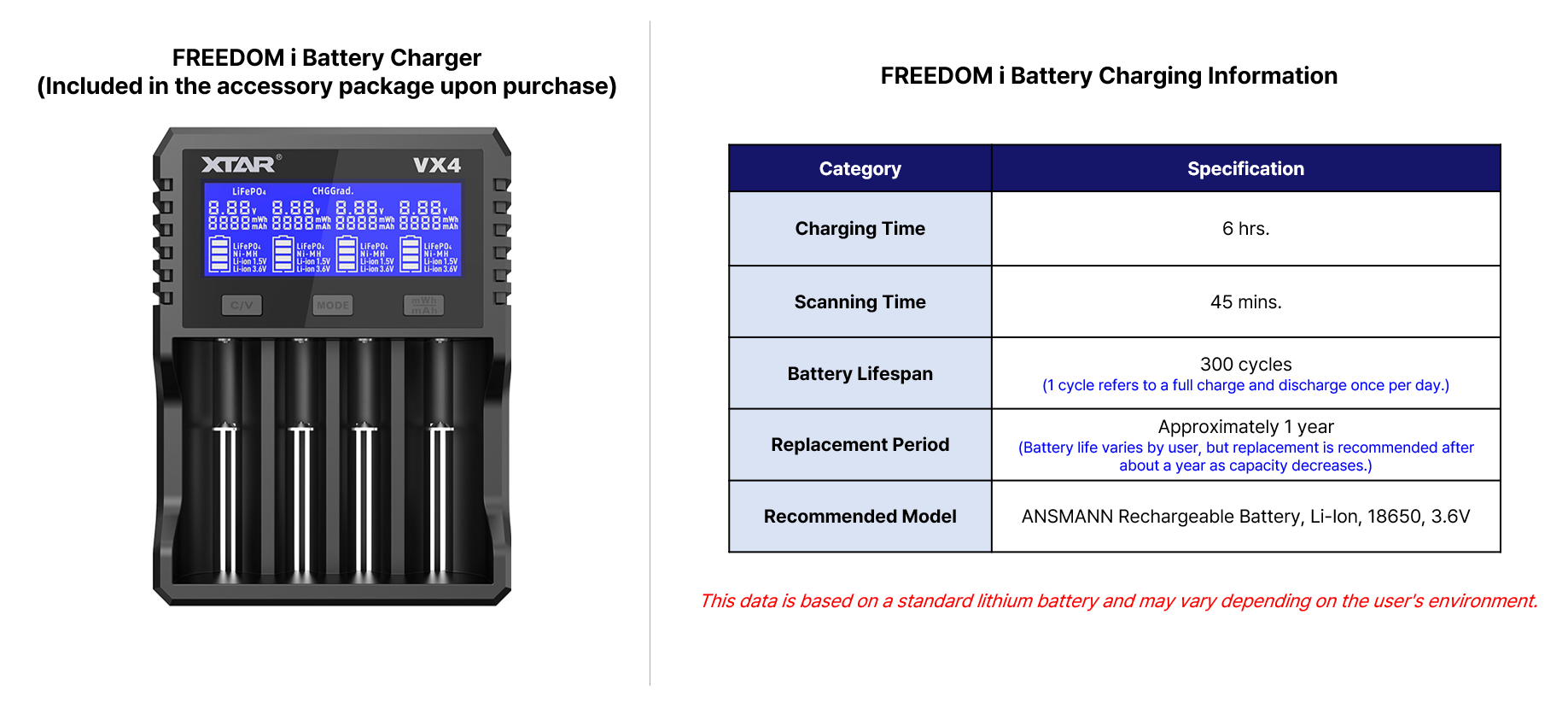

Charge the battery with the battery charger included in the FREEDOM i accessory package.
