📌 When FREEDOM i Is Not Connected To PC - Checklist
When the FREEDOM i is powered on but not connected to the PC, check the following checklist first.
Checklist |
✨Go To Related Articles |
| 1. Make sure that all items on the 'Basic Troubleshooting Checklist' have been completed. - Recommended PC specifications, system requirements, battery requirements, etc. |
- FREEDOM i Basic Troubleshooting Checklist - FREEDOM i Recommended PC Requirements - FREEDOM i System Requirments - FREEDOM i Battery Requirements And Usage |
| 2. If the PSM is connected to the PC via an Ethernet cable, disconnect the cable. | 📌Check related information |
| 3. Check whether the wireless LAN card connected to the PC is recognized. - Check the troubleshooting steps depending on whether the LAN card is recognized. |
📌Check related information |
| 4. Manually connect the Wi-Fi and FREEDOM i. | 📌Check related information |

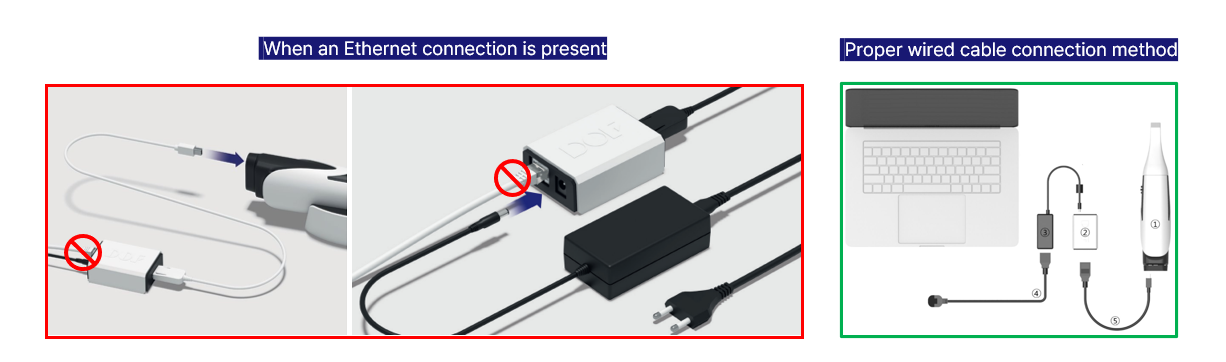

2. If the PSM is connected to the PC via an Ethernet cable, disconnect the cable.
If the PSM and PC are connected via an Ethernet cable, the scanner cannot connect to the PC. Be sure to remove the Ethernet cable.
📘 Related Articles

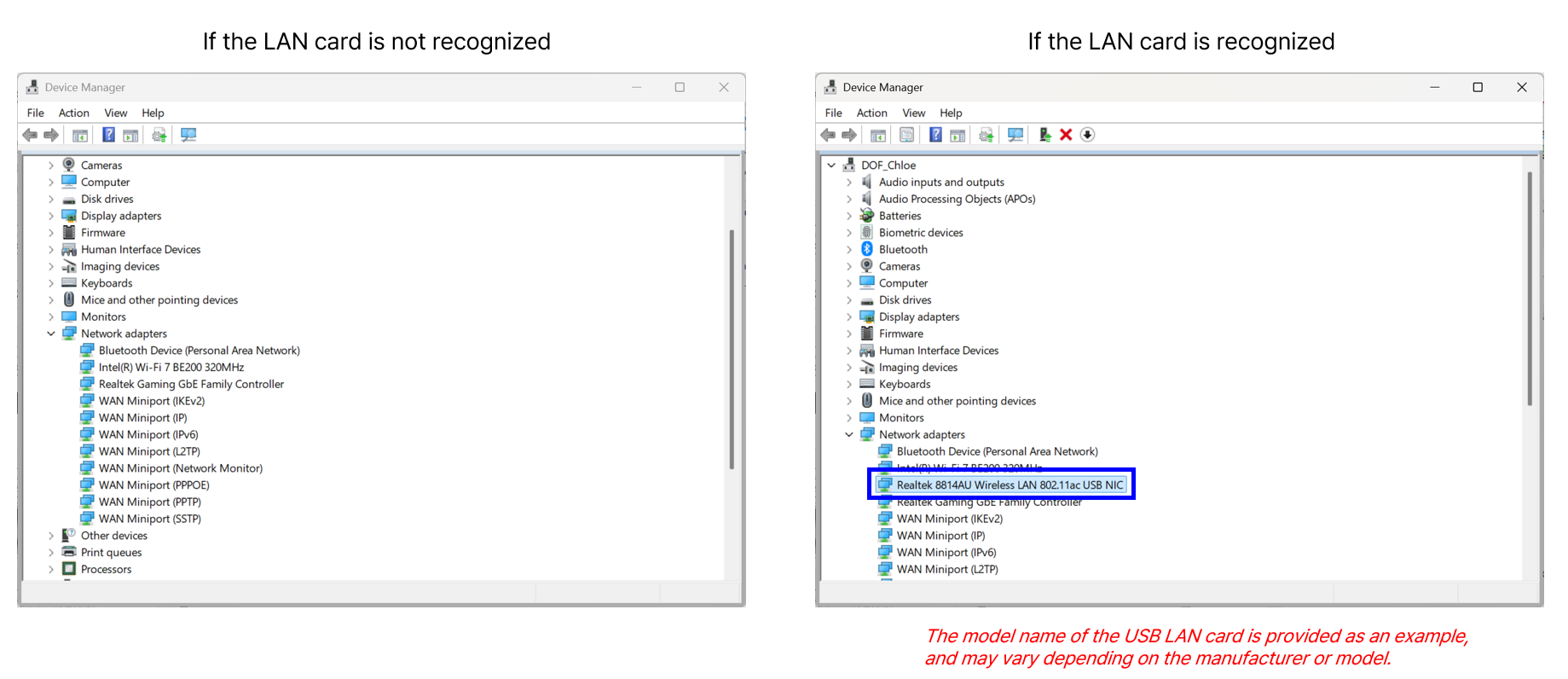

3. Check whether the wireless LAN card connected to the PC is recognized.
Check whether the wireless LAN card connected to the PC is recognized.
- How to check if the wireless LAN card is recognized:
Windows Device Manager > Network adapters > Check whether the connected LAN card is recognized
| ||||||||

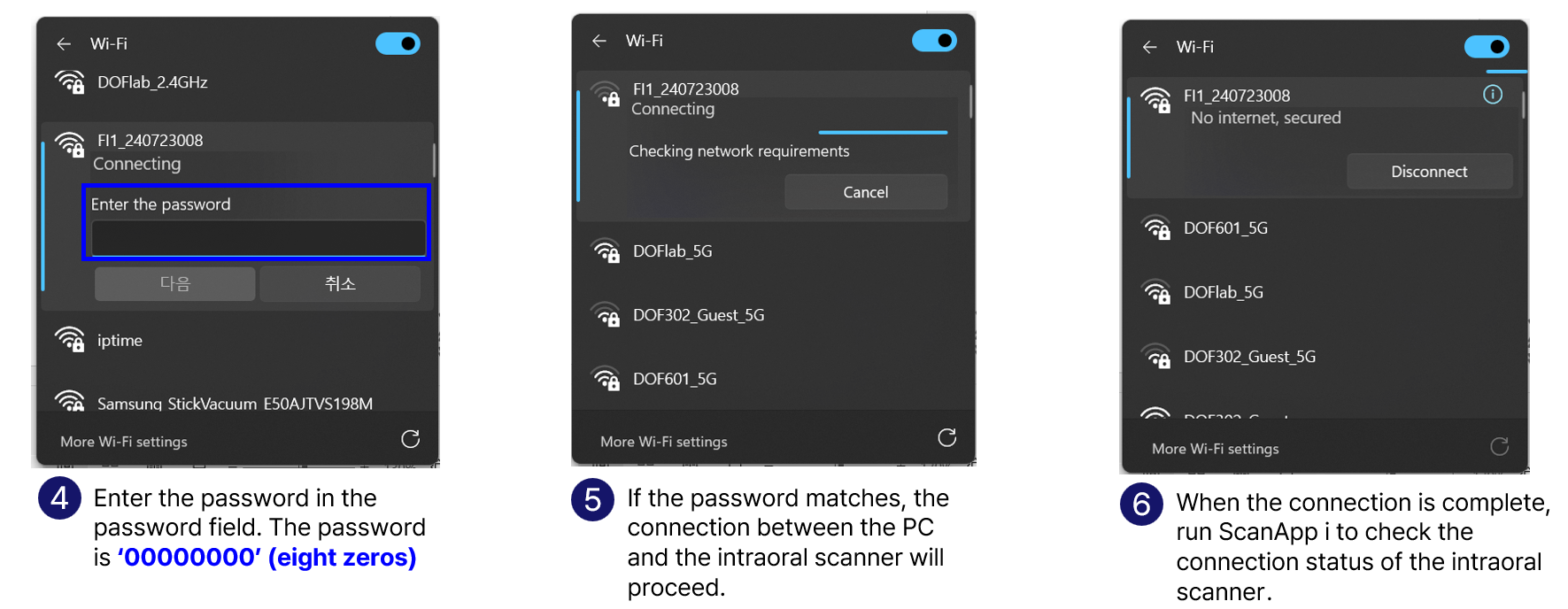

4. Manually connect the Wi-Fi and FREEDOM i.
If the FREEDOM i is recognized by the PC but not connected, manually connect the FREEDOM i and PC via Wi-Fi using the following method.
- Manual Wi-Fi connection method:
